Mushkin Atlas Vital 250GB M.2 SSD (MKNSSDAV250GB-D8)

Mushkin Atlas Vital 250GB M.2 2280 SSD

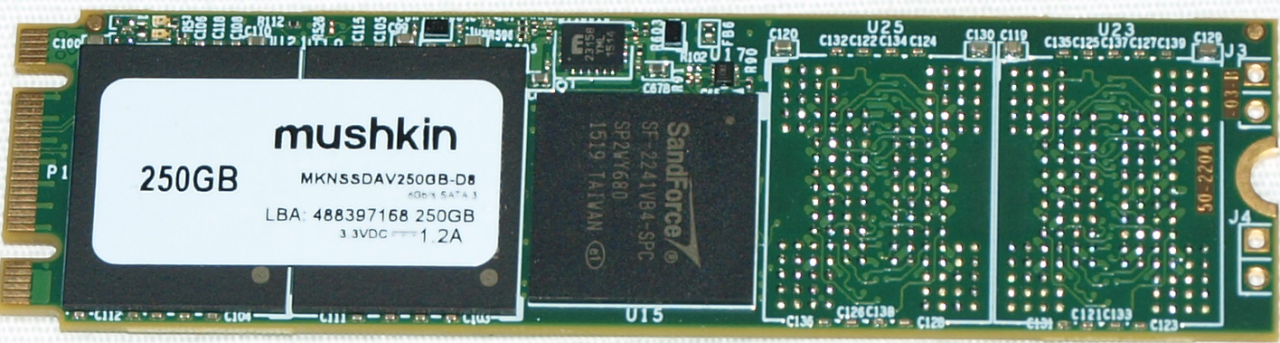

The ever-growing need for hard drive speed is being met in a variety of ways, while E-Sata is taking the rear of the pack on development and Sata 6G has reached its bandwidth limit HD pioneers like Mushkin are pressing on to the M.2 format. The Mushkin Atlas Vital 250GB M,2 (2280 form factor) is based on a budget oriented Sandforce controller but it’s based on a very good budget oriented controller.  Rated to run at 550MB/s Read and 530MB/s Write it’s no slouch when it comes to M.2 speeds and since it’s an M.2 2280 form factor fits most motherboards outfitted with an M,2 slot and to put icing on the Mushkin cake there’s no wires stringing around your case to make things look messy.

Mushkin_Atlas_480_2

While tiny in size and not the most flashy of computer components the Mushkin Atlas Vital 250GB drive packs a serious price performance punch and at $99.99 that’s about 40¢ a GB. Most people can afford a one time shot of $100 for 250GB of 550MB/s dream speed. Sure there are faster PCI-E drives out there but the Atlas Vital 250GB is affordable and obtainable now. When the prices drop on uber high-speed PCI-E drives by all means move to one of those and use the Mushkin Vital as a backup drive, Don’t hold your breath most PCI-E drives worth having run $500 – $600 for the bargain priced ones get into an Intel PCI-E 700 series and you are looking at $700 for 800GB of space which is a little out of reach for your common end-user. SSD’s can be a little tricky when it comes to actual performance gains, the biggest fastest drive isn’t going to do you a lot of good with small reads and writes and compressed data. You reach a tipping point and the extra speed of more expensive drives is just wasted. Sure We’d all love a $700 monster drive but most of us can’t live on Ramen alone for the entire month.

Mushkin_Atlas_480_10A

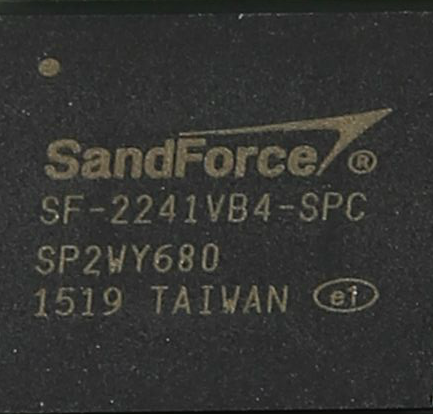

The Sandforce controller is a SF-2241v84-spc and leveraging the Sandforce 2000 chip family is a cost-effective high performance move on Mushkins part. Here are some of the features packed onto that one little chip:

DuraClass Technology

  • DuraWrite extends the endurance of SSDs
  • Intelligent block management and wear leveling
  • Intelligent read disturb management
  • Intelligent recycling for advanced free space management (garbage collection)
  • RAISE™ (Redundant Array of Independent Silicon Elements)
  • Intelligent data retention optimization
  • Best-in-class ECC protection for longest data retention and drive life
  • Power/performance balancing
  • Thermal threshold management

Host Interface

  • SATA 6Gb/s, 3Gb/s, and 1.5Gb/s support
  • Native command queuing (up to 32 commands)
  • S.M.A.R.T. command transport

Max Capacity Supported

  • 512GB on the 2241 SandForce Controller

Performance

  • Sequential read and write transfer: up to 500MB/s (@ 128KB blocks)
  • Random read IOPS: up to 60,000 (@ 4KB blocks)
  • Random write IOPS: up to 60,000 burst/20,000 sustained (@ 4KB blocks)
  • Random 70/30 read/write mix IOPS: up to 60,000 burst/60,000 sustained (@ 4KB blocks)
  • Random 50/50 read/write mix IOPS: up to 60,000 burst/40,000 sustained (@ 4KB blocks)
  • PCMark Vantage: up to 60,000 (HDD test suite score)

Security

  • Data encryption: AES-256 and AES-128; Optional disk password;
  • TCG Opal 2.0, IEEE-1667, Microsoft eDrive (optional add-on)

Reliability

  • ECC recovery: up to 55 bits correctable per 512-byte sector (BCH)
  • Unrecoverable read errors: less than 1 sector per 10E16 bits read
  • ECC on all internal memory; full end-to-end CRC protection; RAISE

Now that’s a lot of technology crammed into one little budget oriented high performance chip that can push up to 550MB/s Read and 530MB/s write and still stay in the sub $100 price range.

Mushkin_Atlas_480_1A

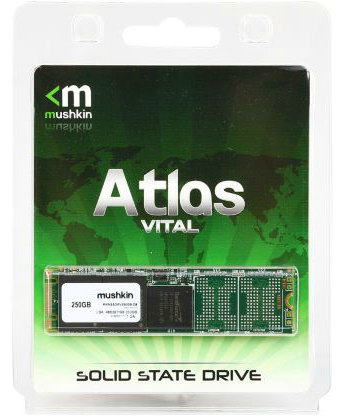

Mushkin kept the packaging costs down and the Atlas Vital comes in a simple clam shell with an attractive Mushkin Green backing and the packaging is designed for pegboard hanging but if you don’t buy offline you can bet you’ll need a CSM (Customer Service Manager) to come get it out of a Plexiglas case for you.

Mushkin_Atlas_480_3

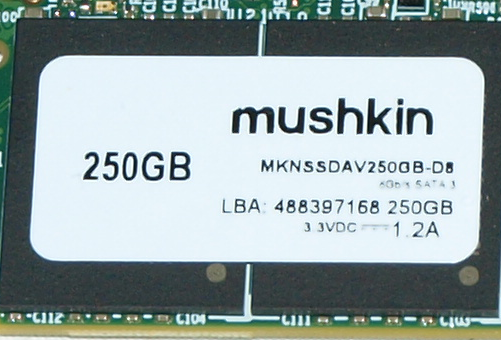

Here’s a shot of the label on the Mushkin Atlas 250GB M,2 (2280) drive we have in hand in case you want to be sure your picking up the exact model or one of the differing sizes.
