MSI GeForce GTX 650 Ti Power Edition 1GB Video Card

MSI GeForce GTX 650 Ti Power Edition 1GB Video Card Review

Today, NVIDIA released their GTX 650 Ti, which is meant for the medium gaming crowd. MSI has, of course, improved on the reference design, and released their GTX 650 Ti Power Edition 1GB. Let’s take a peek inside and see what kind of power it has.
[review_ad]

Introduction

NVIDIA introduced their new GTX 650 Ti today, tailoring it towards “gamers who want to enjoy their games at 1080p resolution with medium to high settings”, along with some anti-aliasing enabled. For more detail about the latest GeForce GTX 650 Ti, check our our reference design review of the Nvidia GeForce GTX 650 Ti. In addition to a decent overclock, the card comes with an awesome looking aftermarket cooler: the Cyclone II.

Today we’ll take a look at the MSI card and see how it compares with the NVIDIA reference design, and also how it stacks up against other GTX 650 Ti’s. The MSI GTX 650 Ti comes in at an MSRP of $159.99, just $10 higher than the reference design.

Features & Specifications

The MSI GTX 650 Ti comes with the same hardware as the other GTX 650 Ti’s, but has a core clock of 993MHz as opposed to the reference clock of 925MhHz. It carries 1GB of GDDR5 VRAM, and uses the TSMC 28nm manufacturing process. When comparing it to other cards, such as the GIGABYTE GTX 650 Ti OC, we can see that the MSI GTX 650 Ti Power Edition is slightly underclocked from the factory overclocked GIGABYTE GTX 650 Ti. The GIGABYTe GTX 650 Ti OC graphics card also has the advantage with 2GB of VRAM, and having 4 display output connectors. Nonetheless, the MSI GTX 650 Ti Power Edition still has its advantages over the Nvidia GeForce GTX 650 Ti reference design card.

Specifications Nvidia GTX 650 (Reference)
Nvidia GTX 650 Ti (Reference)
MSI GTX 650 Ti Power Edition
GIGABYTE GTX 650 Ti OC 2GB
CUDA Cores (Stream Processors)
384 768 768 768
Bus Interface PCI-Express 3.0 PCI-Express 3.0 PCI-Express 3.0 PCI-Express 3.0
Texture Units
32 64 64 64
ROPs
16 16 16 16
SMXs
2 4 4 4
Core Clock 1058 MHz 925 MHz 993 MHz 1032 MHz
Boost Clock
N/A N/A N/A N/A
Memory Clock
5000 MHz Effective 5400 MHz Effective 5400 MHz Effective 5400 MHz Effective
L2 Cache Size
x KB 256 KB 256 KB 256 KB
Memory Bus Width
128 Bit 128 Bit 128 Bit 128 Bit
Total Memory Bandwidth
80.0 GB/s 86.4 GB/s 86.4 GB/s 86.4 GB/s
Texture Fill Rate (Bilinear)
33.9 GT/s 59.2 GT/s 59.2 GT/s 59.2 GT/s
VRAM 1GB (GDDR5) 1GB (GDDR5) 1GB (GDDR5) 2GB (GDDR5)
SLI Ready N/A N/A N/A N/A
TDP 64W 110W 110W (80W Max According to MSI) 110W
Recommended Power Supply 400W+ 400W+ 400W+ 400W+
Power connectors 1x 6-Pin PCI-E 1x 6-Pin PCI-E 1x 6-Pin PCI-E 1x 6-Pin PCI-E
Outputs Dual Link-DVI-I, Dual Link DVI-D, Mini HDMI Dual Link-DVI-I, Dual Link DVI-D, Mini HDMI Dual Link-DVI-I, Dual Link DVI-D, Mini HDMI Two Dual Link DVI-D, HDMI, D-Sub
Manufacturing Process
TSMC 28nm TSMC 28nm TSMC 28nm TSMC 28nm
Thermal Threshold 98C 98C 98C 98C
Launch Price $109.99 (MSRP) $149.99 (MSRP) $159.99 (MSRP) $169.99 (MSRP)

Product Overview

Click Images to Enlarge

The MSI GTX 650 Ti Power Edition comes in the standard blue box with the yellow logo on the front. The box highlights the three-year warranty, the enhanced PWM design, and the Triple-Overvoltage feature of the card. The back of the card contains the standard listing of feature, system requirements, and information in multiple languages.

Click Images to Enlarge

The flap on the box hides the usual spate of marketing jargon, screaming phrases like “Enhanced PWM Design” and “Triple Over-Voltage”. The card uses Military Class III components, including the Hi-c Caps, solid capacitors, and super-ferrite chokes. These components are designed with high-quality materials to minimize the amount of power leakage the card components have. In addition, the components ensure greater stability when overclocking, though the utility of these components on a card meant for the midrange market is something that we’ll have to examine as time goes by.

Click Images to Enlarge

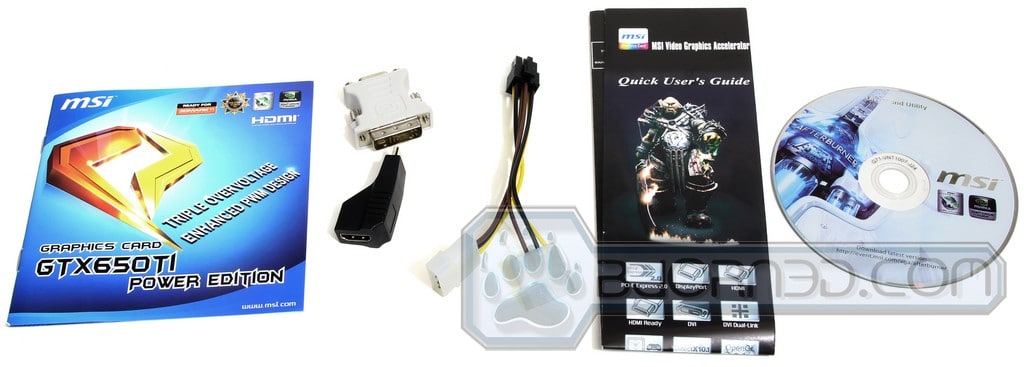

The MSI card comes with a sparse, but functional accessory bundle, containing the Power Edition manual, a Quick User’s Guide, a VGA to DVI adapter, a mini-HDMI to HDMI adapter, a PCI-E to PWM power cable, and a disc with drivers.

Click Images to Enlarge

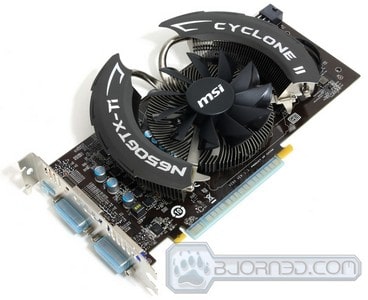

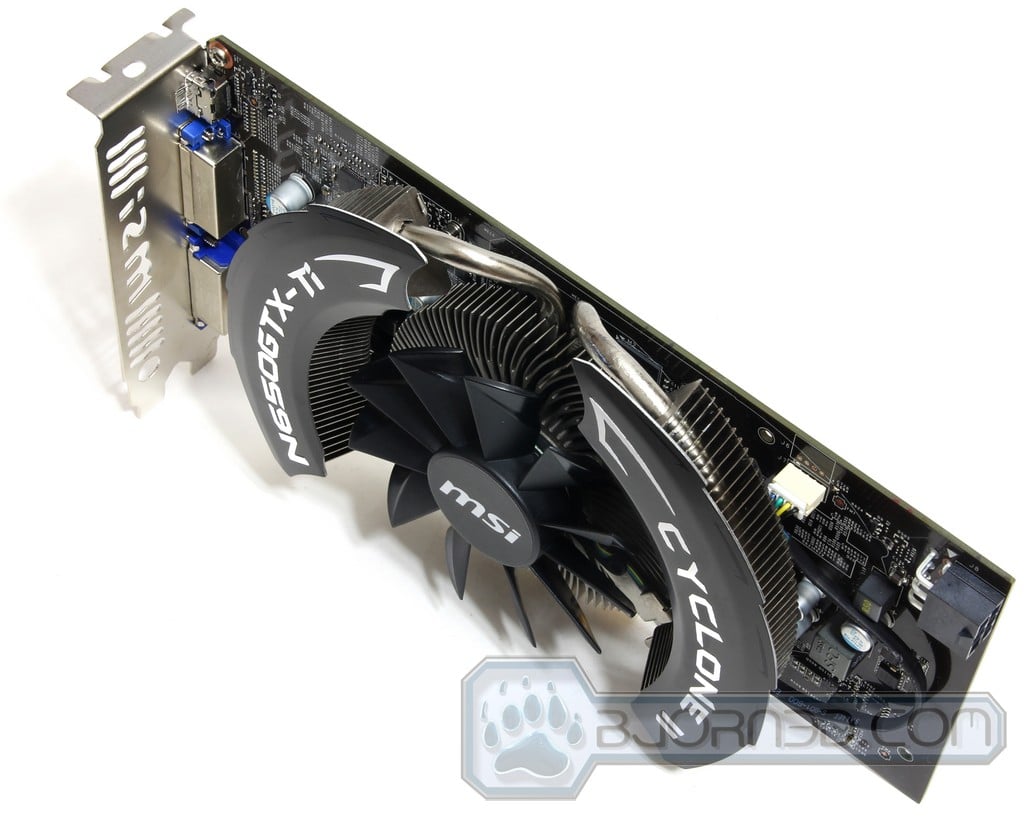

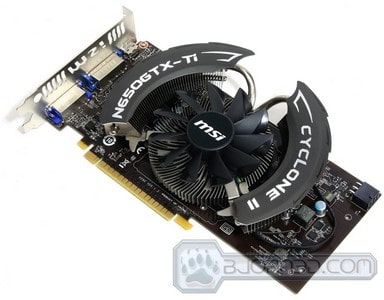

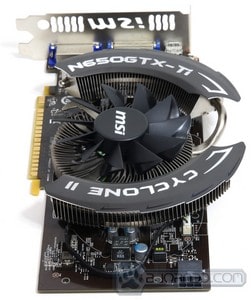

Here we see pictures of the card itself. The biggest change between this card and the reference card is that the MSI power edition uses a totally different design. Whereas the NVIDIA reference card is only as long as the PCI-E slot, this card is about as long as the GTX 660 Ti, a full-length video card. In addition, this card uses the totally different Cyclone II cooler, which looks kind of like a crab rearing its pincers. However, we can say that one thing we like about the cooler design is its openness. It seems like it should be much easier to get dust out of this cooler than out of the NVIDIA stock cooler, which carries a shroud over it. Additionally, the cooler comes with the reverse-spin Dust Removal technology, so it will require less cleaning than the reference cooler. However, it was also the loudest of the lot, a b it more audible than the reference cooler.

Click Images to Enlarge

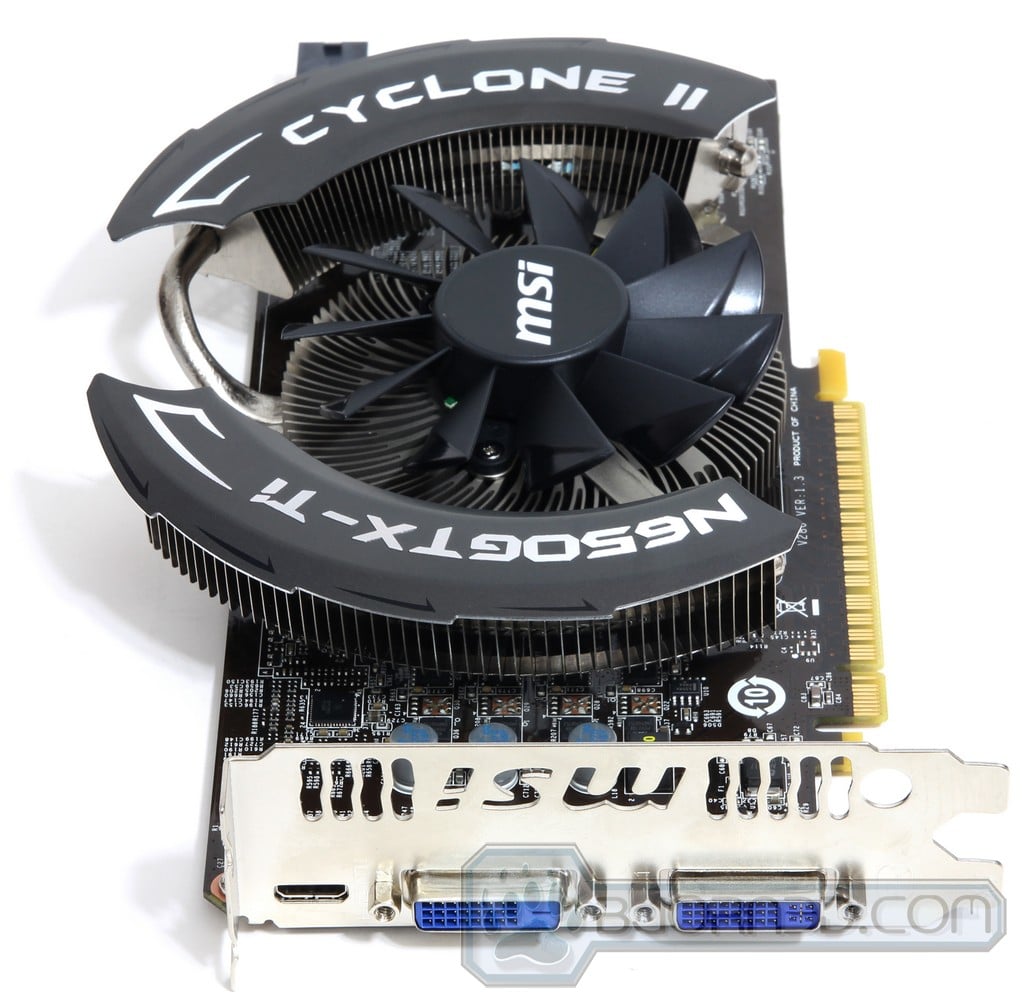

Here we can see the outputs of the card: one mini-HDMI, one DVI-D, and one DVI-I. Like the NVIDIA reference card, the GTX 650 Ti Power Edition card does take up two slots instead of one, so plan your system accordingly. It is powered by a single 6-pin PCI-E power connector, which draws 75W of power. The card’s TDP is set at 110W, though MSI’s headquarters claims that during their testing they got a maximum of 80W for the TDP. At the right-hand side of the cooler, we can see one of MSI’s signature Super-Ferrite Chokes, which they advertise on their packaging.

Click Images to Enlarge

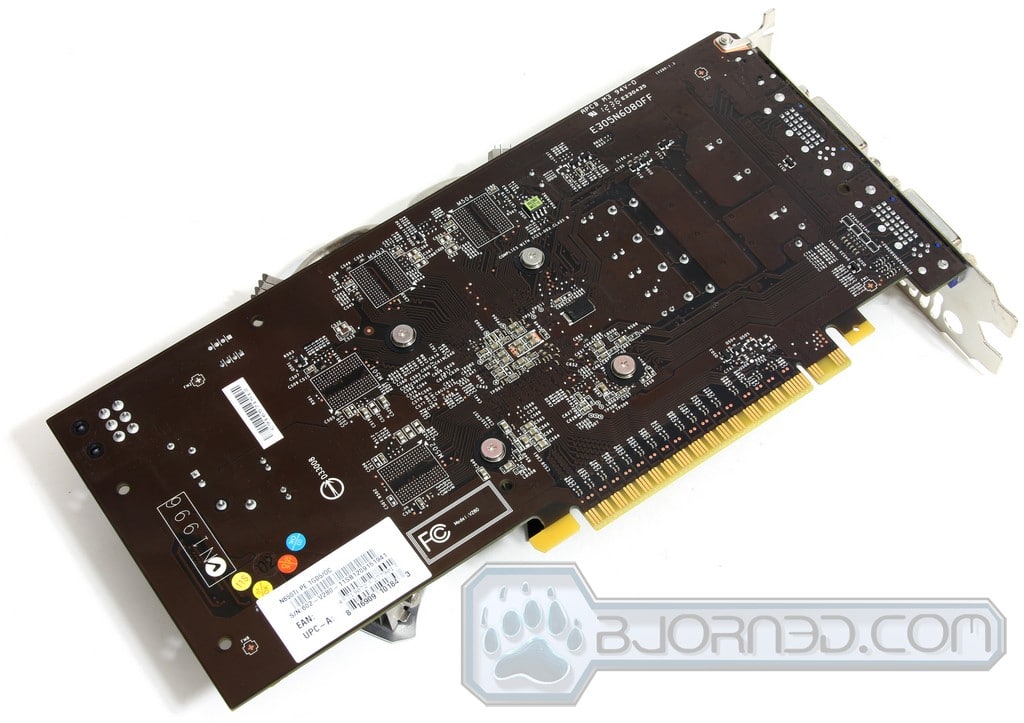

Here we get a shot of the rear of the card, which shows the circuitry on the back near the GPU.

Testing Methodology

The OS we use is Windows 8 Pro 64bit (Retail) with all patches and updates applied. We also use the latest drivers available for the motherboard and any devices attached to the computer. We do not disable background tasks or tweak the OS or system in any way. We turn off drive indexing and daily defragging. We also turn off Prefetch and Superfetch. This is not an attempt to produce bigger benchmark numbers. Drive indexing and defragging can interfere with testing and produce confusing numbers. If a test were to be run while a drive was being indexed or defragged, and then the same test was later run when these processes were off, the two results would be contradictory and erroneous. As we cannot control when defragging and indexing occur precisely enough to guarantee that they won’t interfere with testing, we opt to disable the features entirely.

Prefetch tries to predict what users will load the next time they boot the machine by caching the relevant files and storing them for later use. We want to learn how the program runs without any of the files being cached, and we disable it so that each test run we do not have to clear pre-fetch to get accurate numbers. Lastly we disable Superfetch. Superfetch loads often-used programs into the memory. It is one of the reasons that Windows Vista occupies so much memory. Vista fills the memory in an attempt to predict what users will load. Having one test run with files cached, and another test run with the files un-cached would result in inaccurate numbers. Again, since we can’t control its timings so precisely, it we turn it off. Because these four features can potentially interfere with benchmarking, and and are out of our control, we disable them. We do not disable anything else.

We ran each test a total of 3 times, and reported the average score from all three scores. Benchmark screenshots are of the median result. Anomalous results were discounted and the benchmarks were rerun.

Please note that due to new driver releases with performance improvements, we rebenched every card shown in the results section. The results here will be different than previous reviews due to the performance increases in drivers.

Test Rig

Test Rig
Case Cooler Master Storm Trooper
CPUs Intel Core i7 3960X (Sandy Bridge-E) @ 4.6GHz
Motherboards ASUS P9X79 WS X79 Chipset Motherboard
Ram Kingston HyperX Genesis 32GB (8x4GB) 1600Mhz 9-9-11-27 Quad-Channel Kit
CPU Cooler Noctua NH-D14 Air Cooler
Hard Drives 2x Western Digital RE3 1TB 7200RPM 3Gb/s Hard Drives in RAID 0
SSD
  • 2x Kingston HyperX 240GB SATA III 6Gb/s SSD in RAID 0 (Main)
  • 1x Kingston HyperX 240GB SATA III 6Gb/s SSD (Storage)
Optical ASUS DVD-Burner
GPU
  • Nvidia GeForce GTX 680 2GB
  • Nvidia GeForce GTX 670 2GB
  • Nvidia GeForce GTX 660 Ti 2GB
  • EVGA GTX 660 SuperClocked 2GB
  • Nvidia GeForce GTX 660 2GB
  • Nvidia GeForce GTX 650 Ti 2GB
  • MSI GeForce GTX 650 Ti Power Edition 1GB
  • GIGABYTE GeForce GTX 650 Ti OC 2GB
  • Nvida GeForce GTX 580 1.5GB
  • Palit GTX 560 Ti Sonic 1GB
  • EVGA GTX 560 SuperClocked 1GB
  • AMD HD 7970 3GB
  • AMD HD 7870 2GB
  • AMD HD 7770 1GB
  • AMD HD 7750 1GB
PSU Cooler Master Silent Pro Gold 1200W PSU
Mouse Razer Imperator Battlefield 3 Edition
Keyboard Razer Blackwidow Ultimate Battlefield 3 Edition

Synthetic Benchmarks & Games

Benchmarks
3DMark 11
Just Cause 2
Lost Planet 2
Metro 2033
Battlefield 3
Unigine Heaven 3.0
Batman Arkham City
Dirt 3

Synthetic Benchmarks

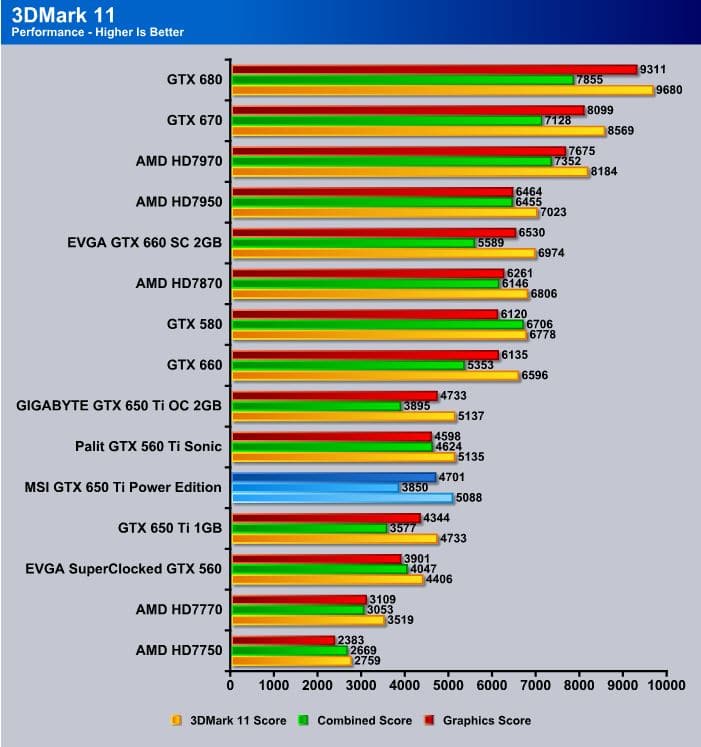

3DMark 11

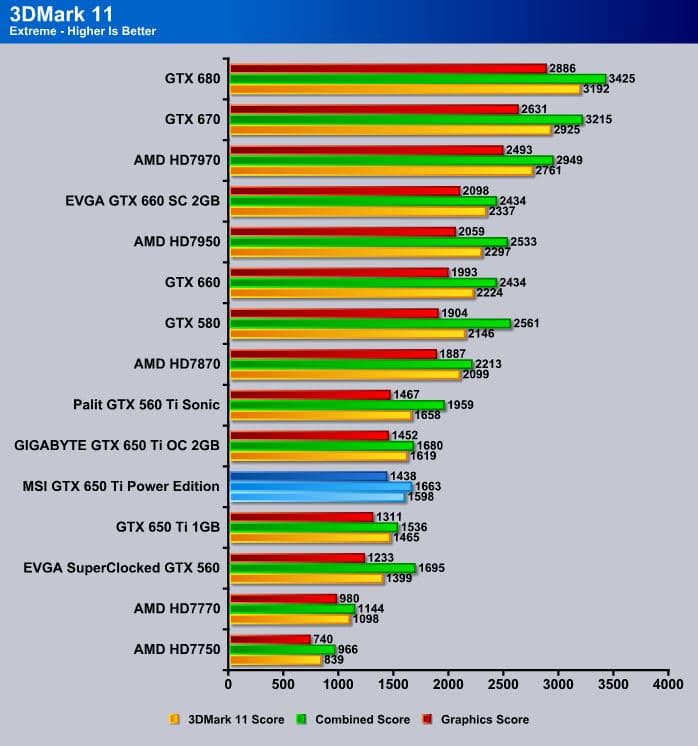

Here we can see the results for 3DMark 11. The GTX 650 Ti comes in around where expected: between the 560 Ti and HD7770.

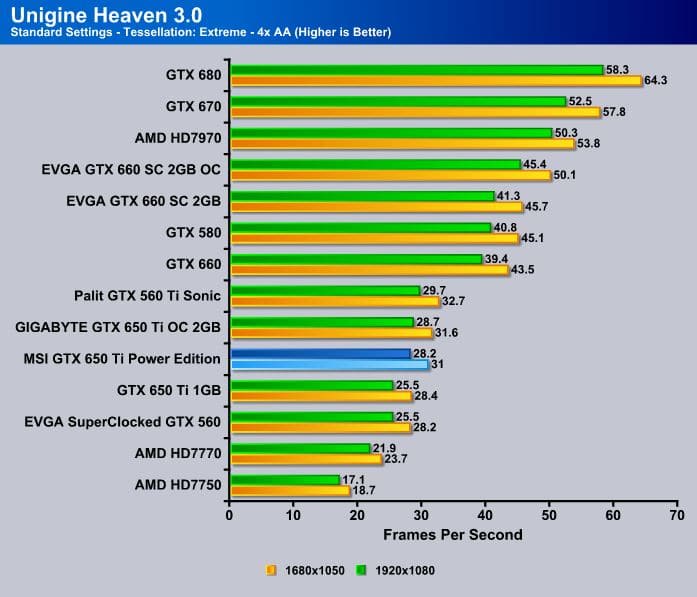

Unigine Heaven 3.0

Unigine Heaven is a benchmark program based on Unigine Corp’s latest engine, Unigine. The engine features DirectX 11, Hardware tessellation, DirectCompute, and Shader Model 5.0. All of these new technologies combined with the ability to run each card through the same exact test means this benchmark should be in our arsenal for a long time.

Here the MSI GTX 650 Ti comes in as performing better than the reference card due to the overclock, but just a hairsbreadth under the GIGABYTE version, probably due to the GIGABYTE card’s higher clockspeed and extra GB of video memory.

Game Benchmarks

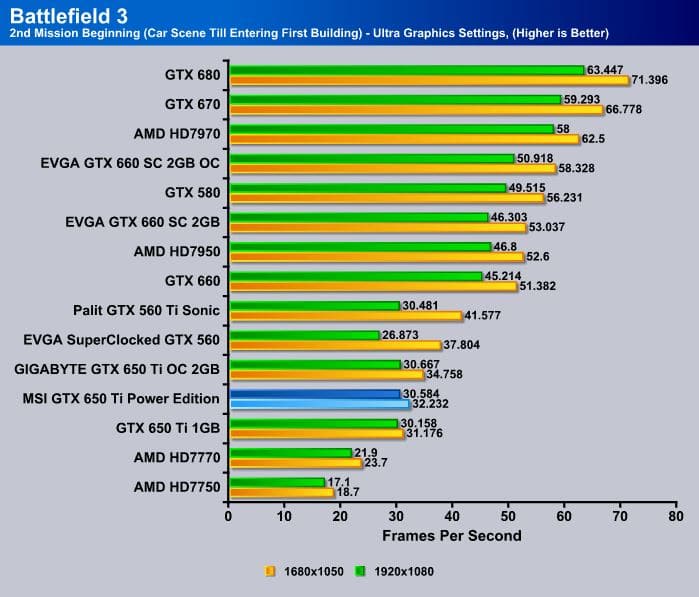

Battlefield 3

In Battlefield 3, the 650 Ti comes in at just a hair over the playable frame rate, once again outperforming the reference card thanks to the factory overclock.

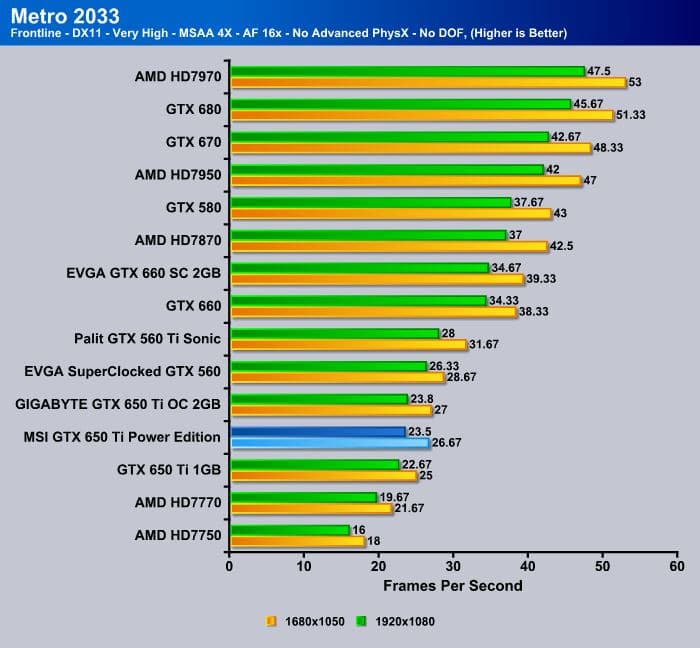

Metro 2033

Metro 2033 is a demanding game: the Crysis of today’s benchmarking. Very few single GPU cards can handle it, and the mid-level GTX 650 Ti predictably fails to keep up at very high settings. However, keep in mind that this card isn’t meant to handle this level of gaming.

Batman Arkham City

The card does very well in Batman: Arkham City, beating both 560′s and the reference card.

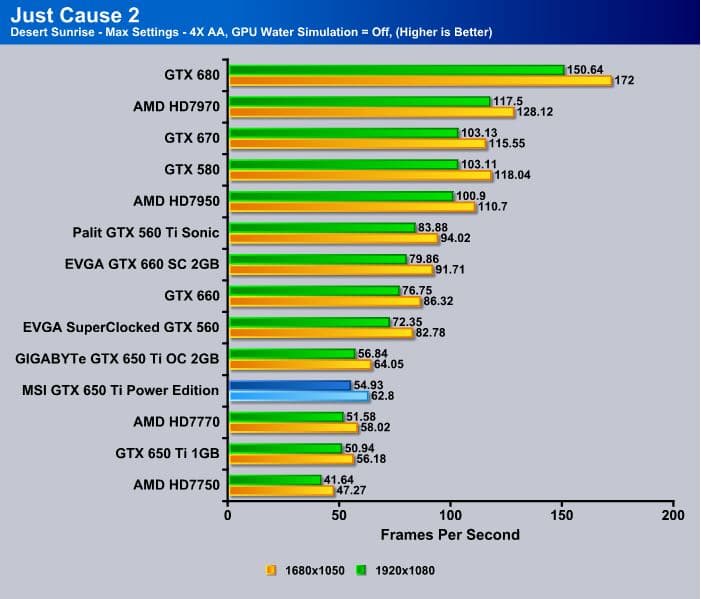

Just Cause 2

The card again performs well in Just Cause 2, showing the benefit of the factory overclock as it definitely outpaces the reference card.

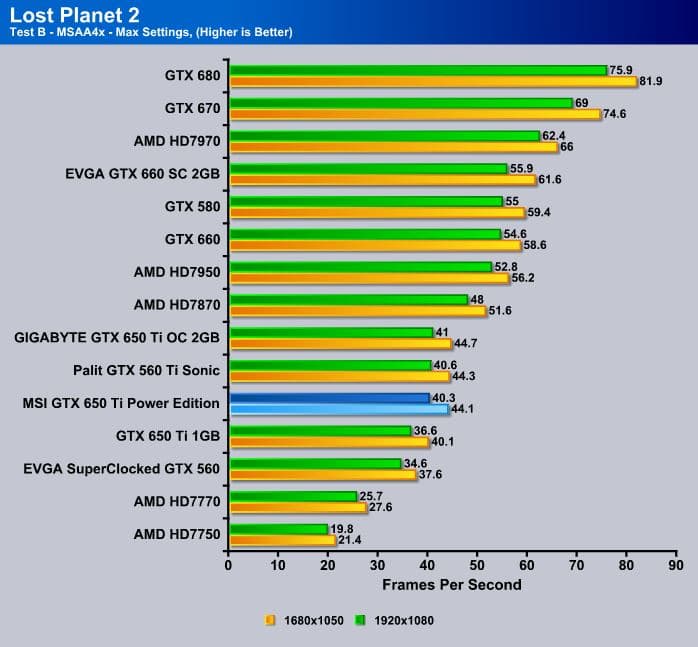

Lost Planet 2

The card again does well in Lost Planet 2, its factory overclock pushing it into the smooth gameplay zone.

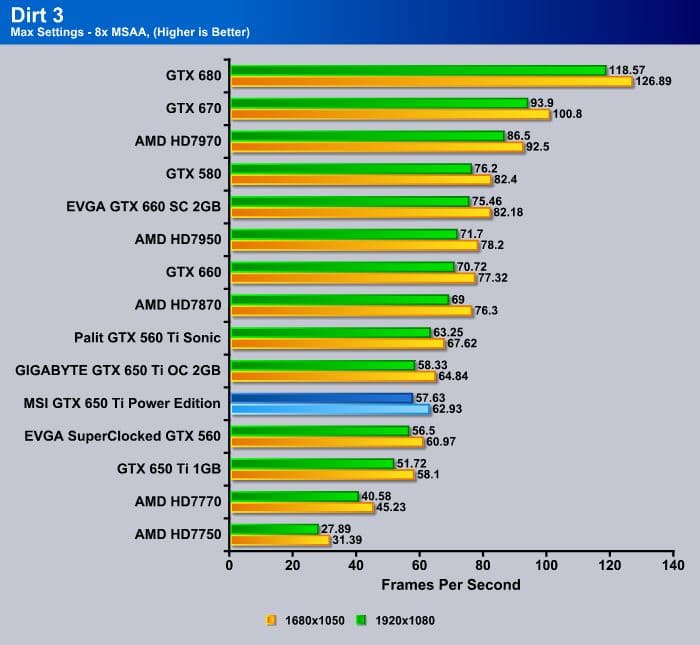

Dirt 3

Dirt 3 is not as intense of a game, and we can see that the card does very well in this benchmark

Other Stability Tests

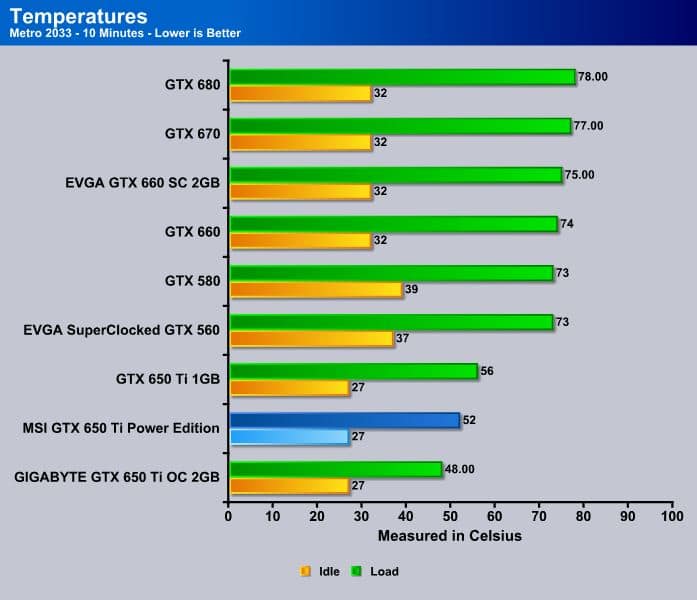

TEMPERATURES

To measure the temperature of the video card, we used EVGA’s Precision X and ran the Metro 2033 benchmark in a loop to find the Load temperatures for the video cards. The highest temperature was recorded. After looping for 10 minutes, Metro 2033 was turned off and we let the computer sit at the desktop for another 10 minutes before we measured the idle temperatures.

The Cyclone II cooler on the MSI card shows its strength here, though it is outperformed slightly by the GIGABYTE card. On the other hand, when we check out the overclocking possibility of the card and its cooling potential, the MSI card has far the best cooling solution installed. The temperatures won’t rise much higher, keeping it the coolest card among the tested even at the highest overclock.

POWER CONSUMPTION

Power_Consumption

To get our power consumption numbers, we plugged in our Kill A Watt power measurement device and took the Idle reading at the desktop during our temperature readings. We left it at the desktop for about 15 minutes and took the idle reading. Then we ran Metro 2033 for a few minutes minutes and recorded the highest power usage.

The factory overclock of the MSI card pushes its power consumption above that of the reference card. Nonetheless, this is a decent power consumption for a midrange card, as we have expected slightly higher power consumption before we have actually tested the card.

Overclocking

Overclocking was done with Precision X overclocking utility. We first raised the voltage on the card to 1075mv, which was the maximum voltage available on the MSI GTX 650 Ti Power Edition. The GIGABYTE GTX 650 Ti 2GB video card only allowed up to 1063mv, therefore the overclocking potential was better on the MSI card. The Core Clock speed was ultimately raised up to 1220 MHz and the memory frequency to 5930 MHz. Those were the highest stable overclocked settings.

The results were quite great as well:

     3DMark Score GPU Score Combined Score
Nvidia GeForce Reference       4733     4344         3577
MSI GTX 650 Ti Power Edition (1220/5930)       5787     5365         4493
GIGABYTE GTX 650 Ti OC 2GB (1148/5814)       5567     5150         4287

Conclusion

The MSI GeForce GTX 650 Ti is a good card for its market. It may not have the capacity to play all games at the highest settings, but remember that this card was not made for that. As a mid-range gaming card, it definitely fulfills its potential and more, in terms of performance. The card even gets close to 25FPS in Metro 2033, the most demanding game we have tested to date. The fact that a mid-range card has this kind of capacity is great, and MSI’s factory overclock only helps. Its solid construction also gives it a boost, and the overclocking headroom granted by MSI’s use of Military Class III components gives mid-range gamers a little more room to work with when overclocking their hardware.

The Cyclone II cooler is also well implemented, cooling the card down significantly at a quiet operation. Additionally, the card only comes with only three display outputs, though the GTX 650 Ti GPU has the ability to support four. The reference design also has three outputs, but we feel MSI might have added a fourth just to sweeten the deal a little. The ultimate choice is up to you as the end-user, but we see no reason not to recommend this card as a potential GPU for the mid-range gamer, especially considering performance at value.

OUR VERDICT: MSI GeForce GTX 650 Ti Power Edition
Performance 7.5
Value 8
Quality 8.5
Features 8
Innovation 8
We are using a new addition to our scoring system to provide additional feedback beyond a flat score. Please note that the final score isn’t an aggregate average of the new rating system.
Total 8
Pros Cons
  • Factory overclocked
  • Military Class III components
  • Cyclone II cooler is easier to clean
  • Good performance in midrange games
  • Good overclockability
  • Only 3 outputs: GPU supports up to 4 displays
Summary: The MSI GeForce GTX 650 Ti is a mid-range card, and yet it performs admirably in even stressful games. For its quality and performance at its price range, it earns the Bjorn3D Silver Bear Award.
