ASUS Crosshair V Formula-Z

Overview of the ASUS Crosshair V Formula-Z



Click Image For a Larger One

The packaging for the Crosshair is pretty much exactly like all of the other ROG board we have reviewed with the exception of the AMD information and Crosshair name.

Flipping open the front reveals some of the advanced feature info along with a window to view the board directly.

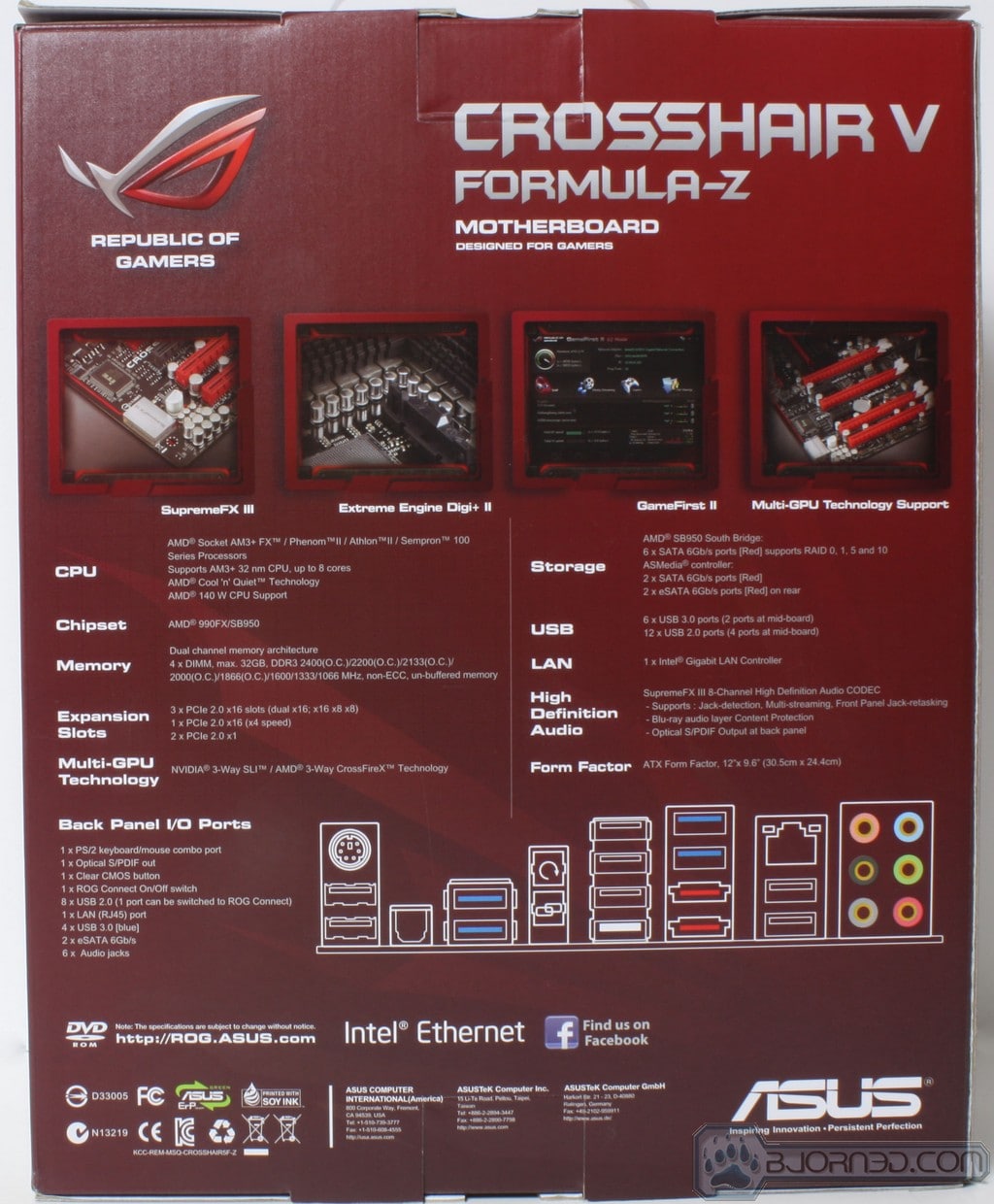

The rear of the box has all of the specific details and spec info. This includes a visual layout of the rear IO section.





 Click Image For a Larger One

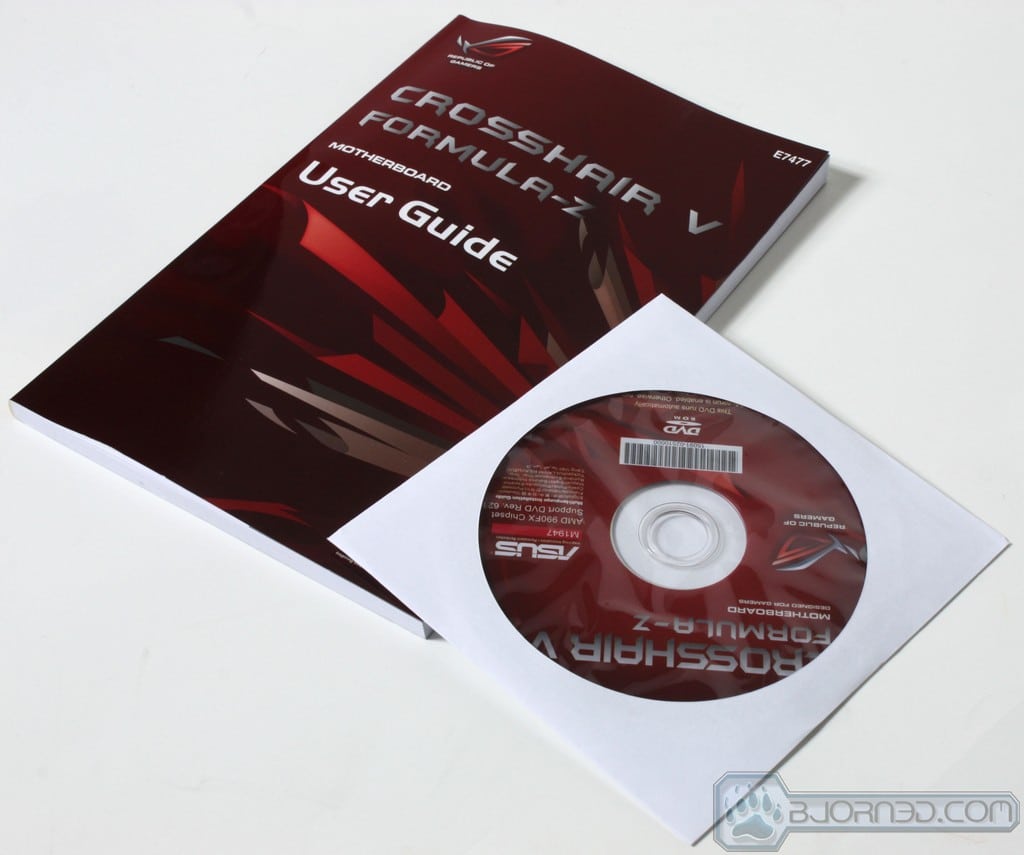

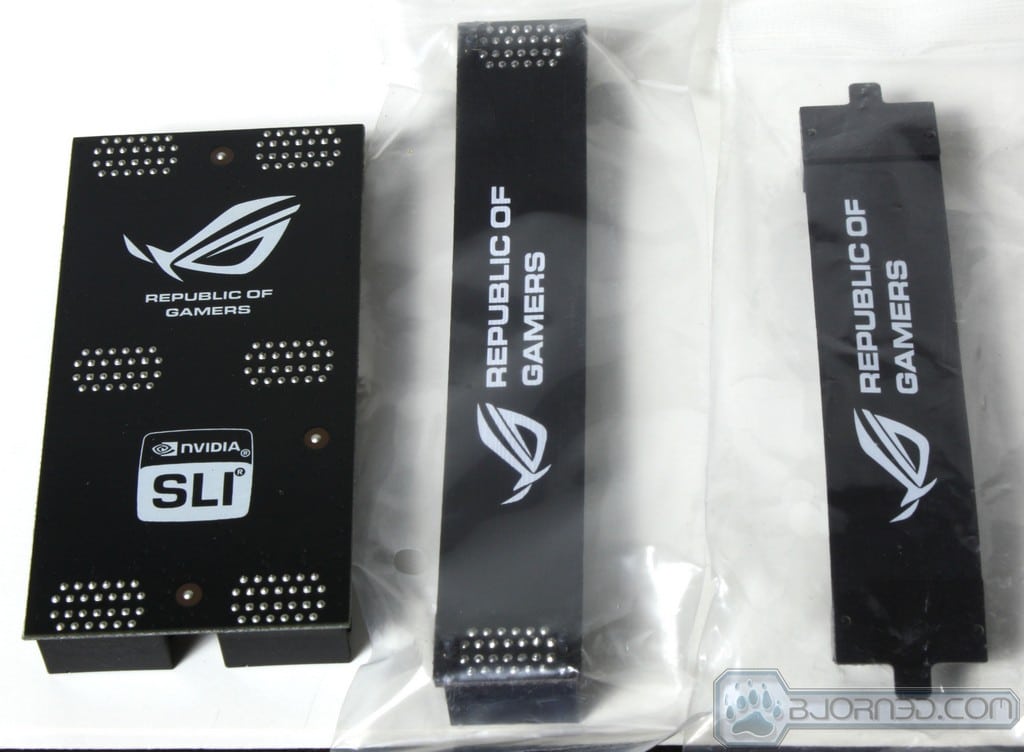

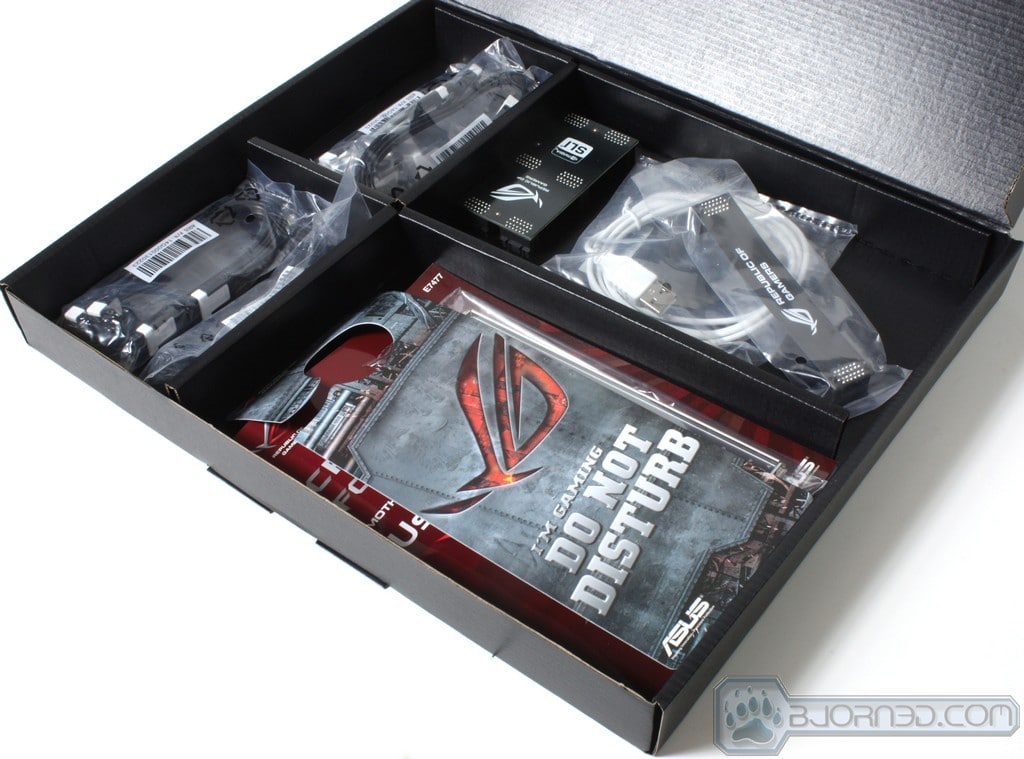

Here we see the complete accessories included.

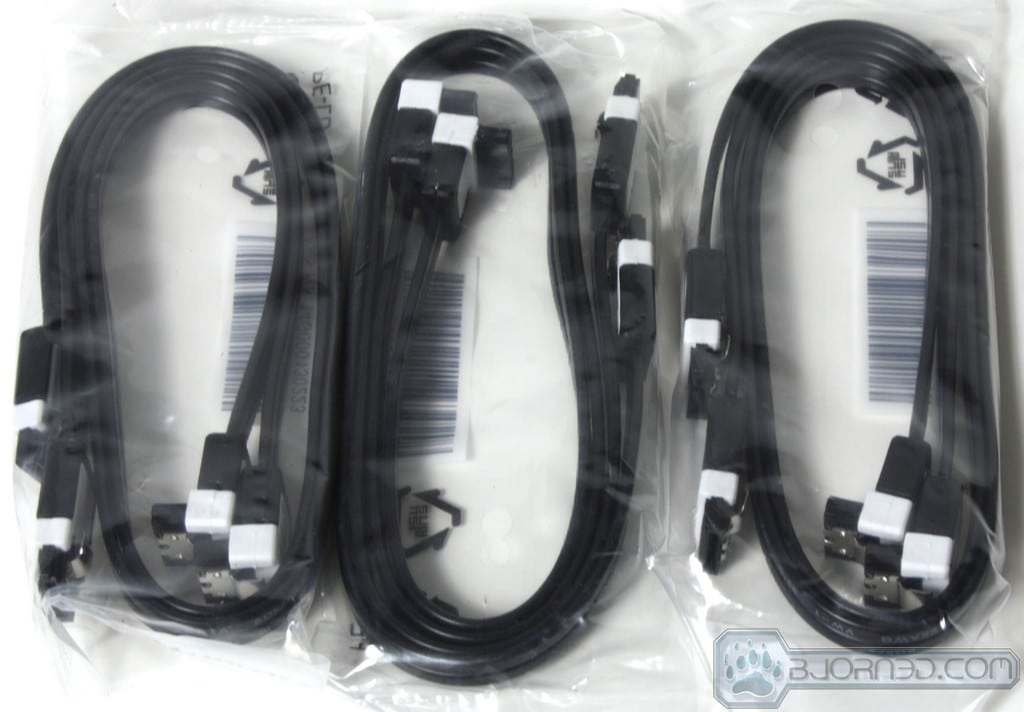

  • SATA Cables
  • ROG Connect Cable

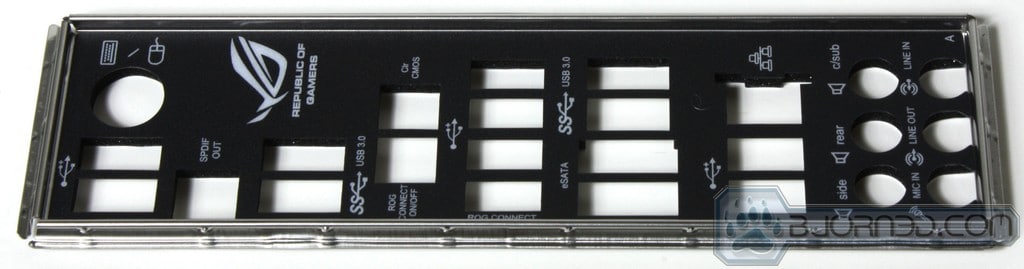

  • IO Shield
  • SLI Ribbon Cable
  • 3 Way SLI Bridge
  • Crossfire Ribbon
  • ROG door Hanger

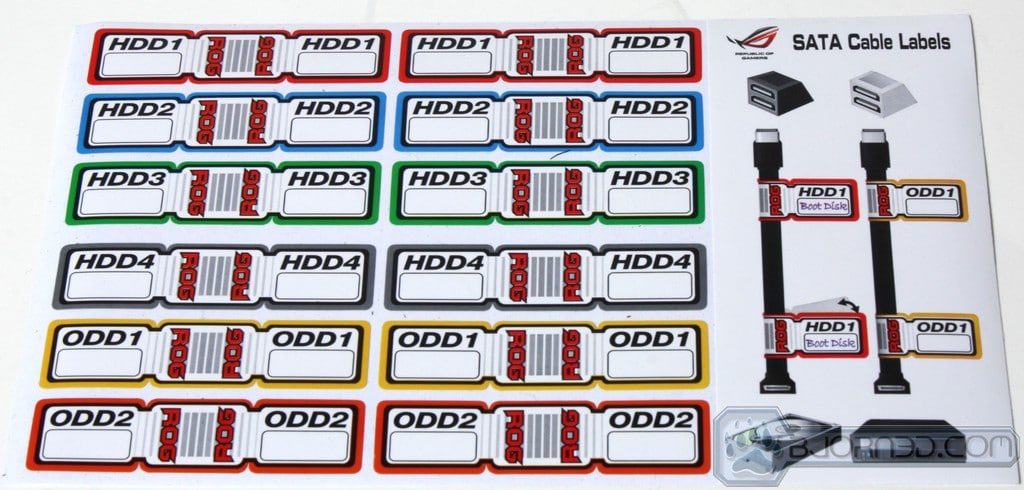

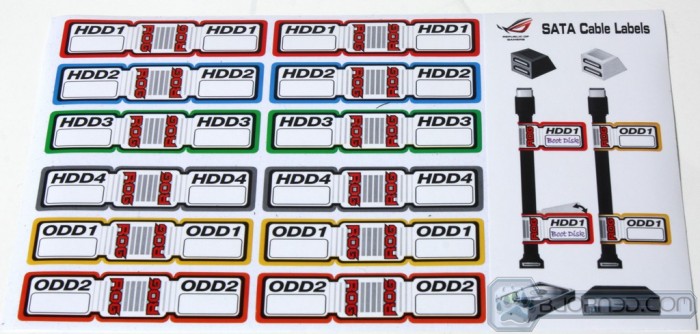

  • Cable labeling Stickers
  • Installation disc
  • Owners Manual

The accessories are more than enough to get the board up and running and also the cable labels could be major help during swaps.





Click Image For a Larger One

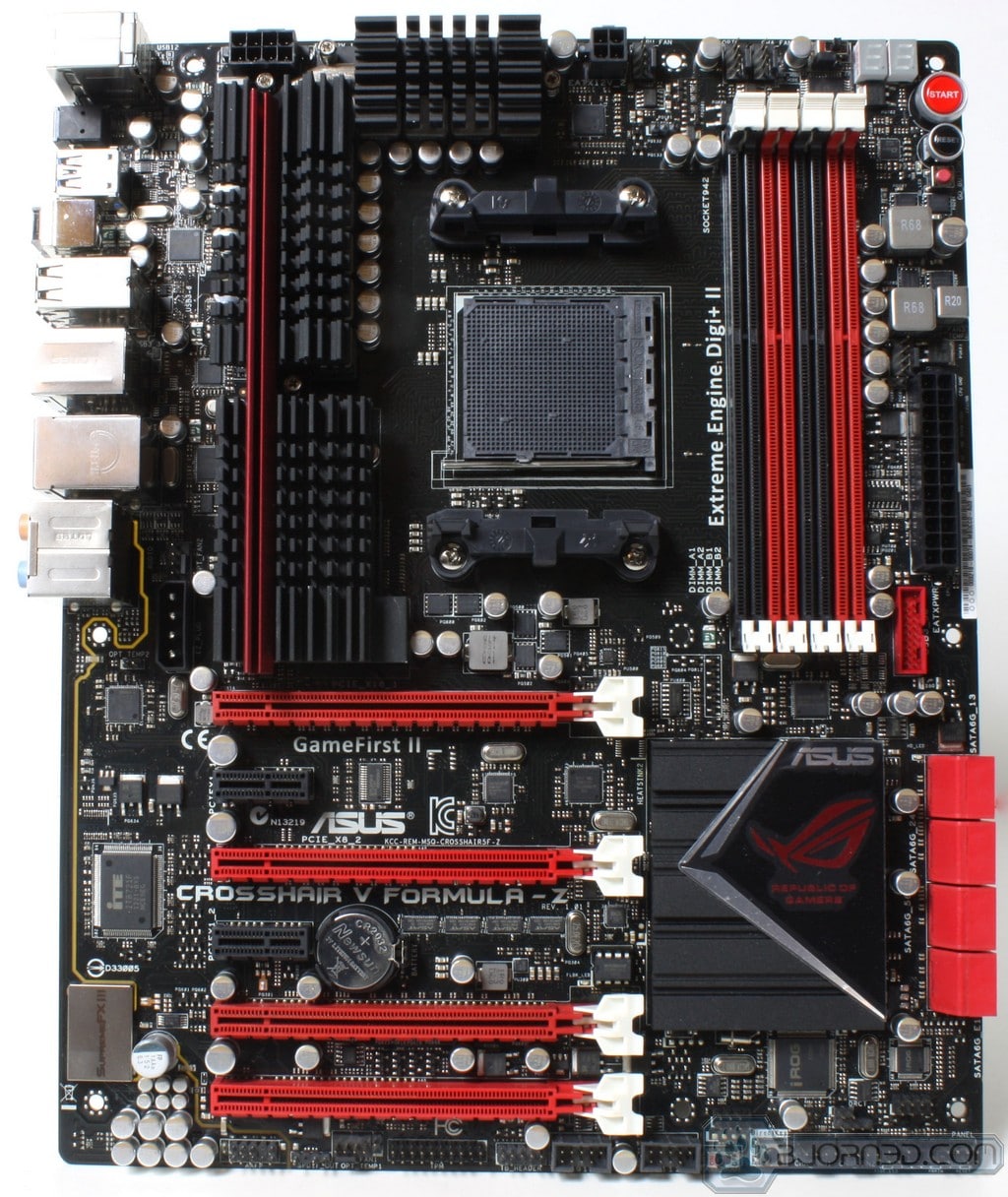

Here we see the board layout and in ROG style you can see that all connections are at boards edge for the most part. are at the boards edge which really helps with the cable management aspect of a system build. The reason we say for the most part is that the 4 Pin Molex connector which serves up extra power to the PCI-E slots is directly between the audio block of the rear IO and the elongated Chipset/VRM cooler. This of course means that a cable plugging into this connector will need to be strewn across the boards surface which is not really ideal for the appearance we are usually looking for when building a tidy gaming rig. There are 8 fan connectors on the board, which is nice as the fan headers are all 4 pin which allows PWM control of these ports which helps keep things cool when needed and silent when not. There is a Thunderbolt header in place for good measure in case you decided you needed Thunderbolt function you could purchase separately the ASUS Thunderbolt card and add this function as well.

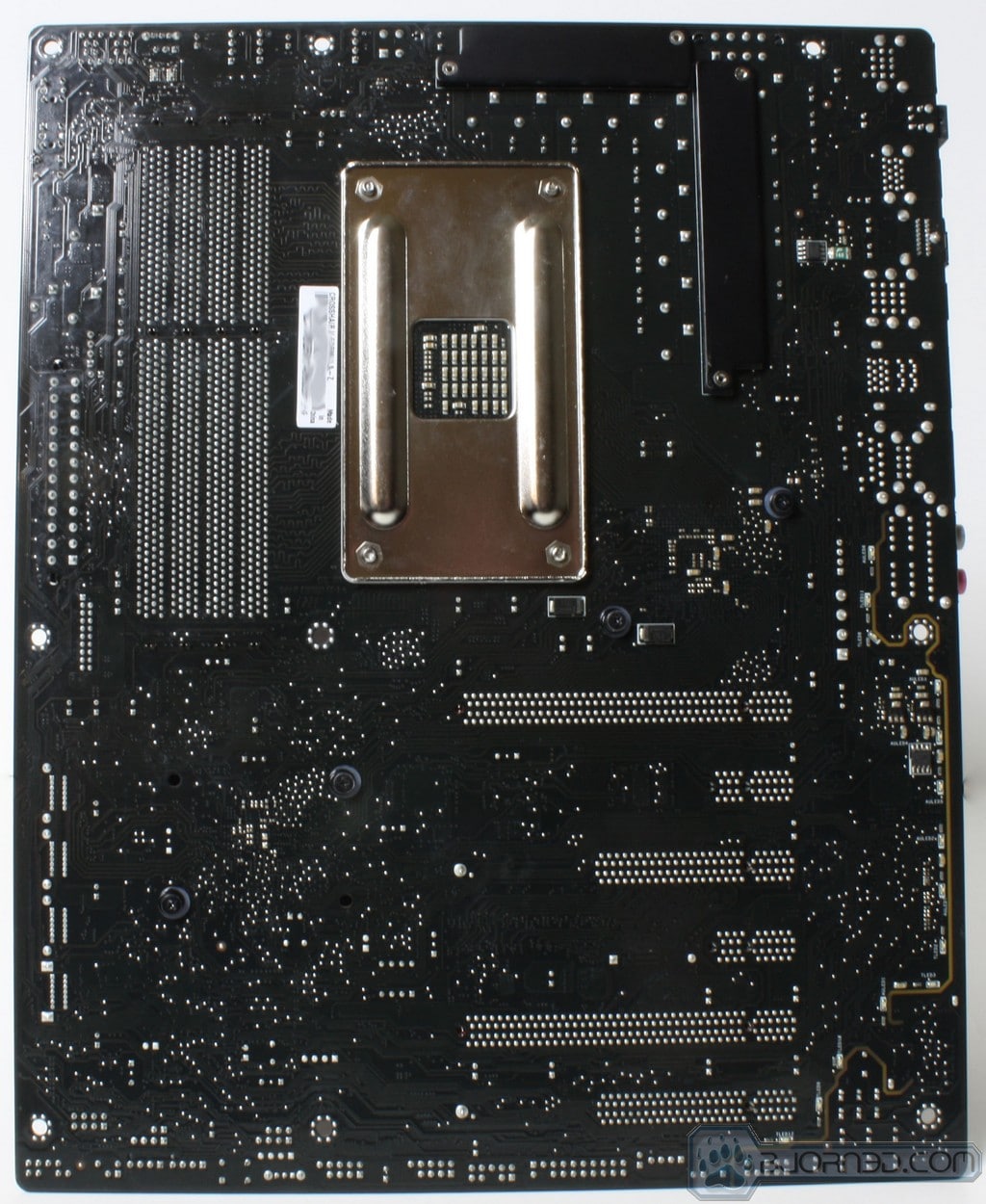

The rear of the board is pretty standard fare as it simply shows the solder points on the board and also shows the actual electrical layout of the slots as the 2nd and 4th x16 slots are actually only soldered with leads for X8 operation.



Click Image For a Larger One

Here we have the Thermaltake BlacX 5G Hard Drive Docking station which is a USB 3.0 drive dock which also supports the UASP function on the ASUS boards. This is a huge advantage as we have seen drive bandwidth increases of huge amounts when tested with an SSD which means it really opens up the pipeline on the USB 3.0 interface.



Click Image For a Larger One

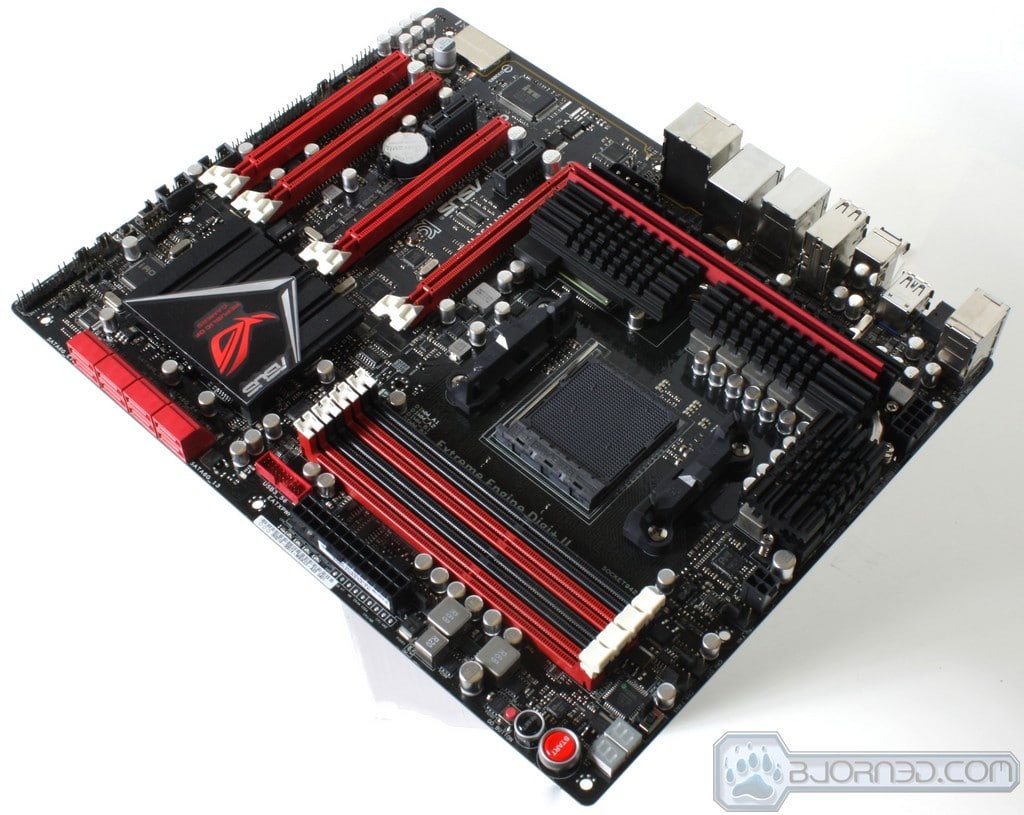

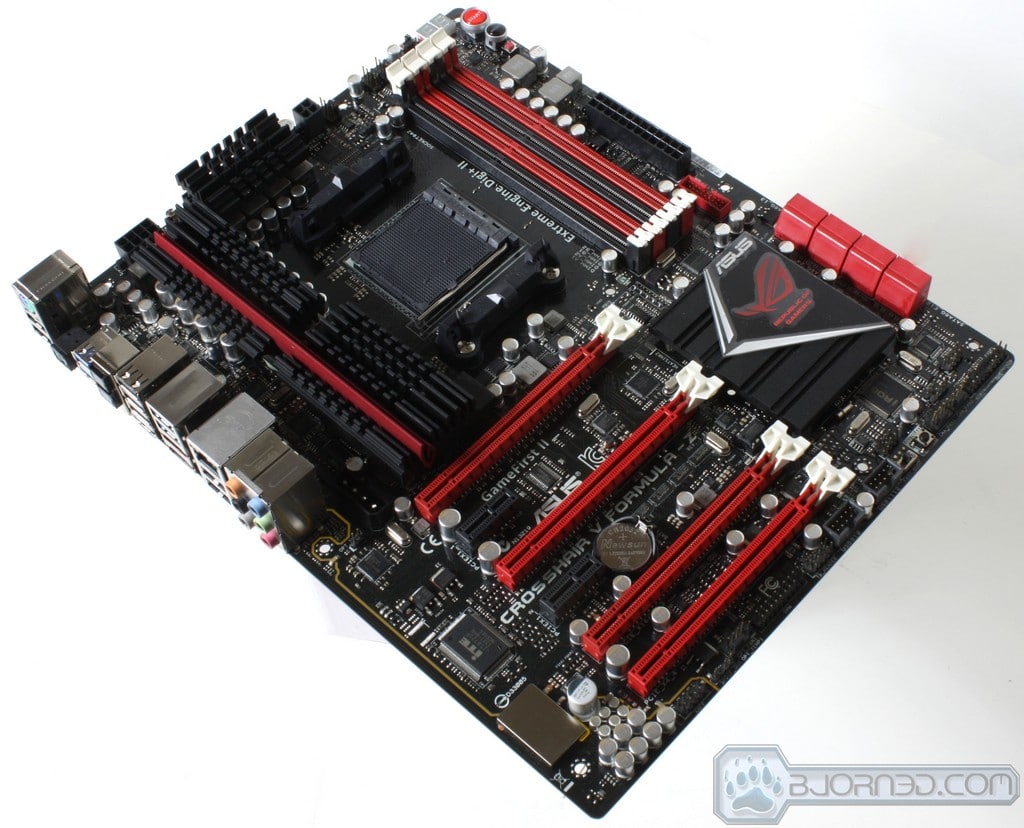

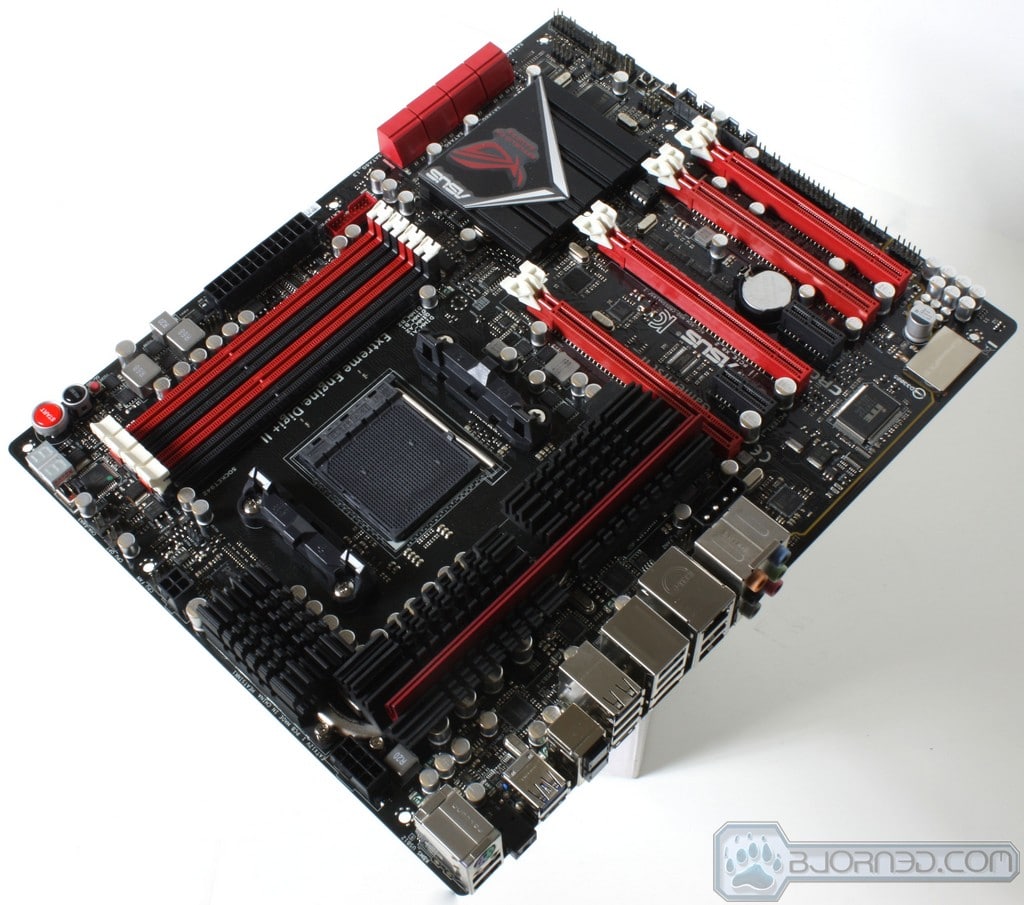

Looking at each angle of the board there is much to see with the Crosshair V Formula-Z board. Much of it mirrors the original board but there are key changes you see straight away such as the SupremeFX III audio Island style solution. Also 2 more SATA 6G ports in total to reach the total of 10 ports with 2 being eSATA. The extra ports beyond the standard 6 ports are fed by ASMedia model ASM1061 controllers. The four DIMM slots support up to 32GB of total capacity and memory speeds up to and exceeding 2400MHz with some overclocking skill. The board is a standard ATX form factor which means there should be no issues fitting in any ATX supported chassis. The color scheme is the standard ROG red and black and this board pulls it off well with even some decorative garb on the SB heatsink in the form of the ROG eye and ROG logo.


Click Image For a Larger One

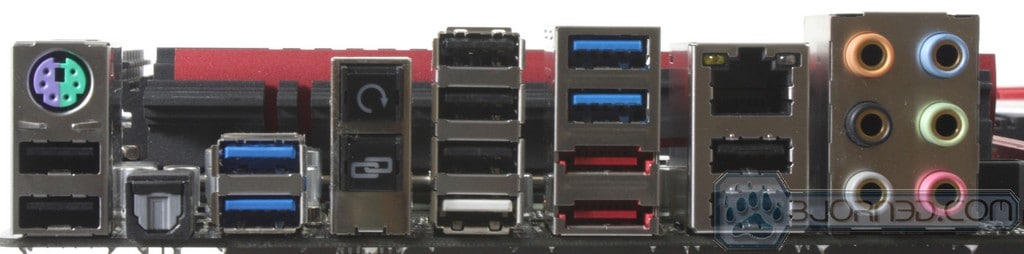

Looking at the I/O, we can see that the board is stuffed quite well with features.
  • PS2 combo mouse/keyboard port
  • Optical S/PDIF Port
  • 8x USB 2.0 Ports (7 Blk, 1 Wht)
  • ROG Connect Button
  • Clear CMOS Button
  • 4x USB 3.0 ports (Asmedia controller)
  • 2x eSATA 6Gb/s Port
  • Intel Gigabit (10/100/1000) LAN Port
  • 8 channel SupermeFX III audio connections with Optical S/PDIF support

The connectivity is very solid on this board allowing for plenty of devices and also 4 ports from ASMedia supporting USB 3.0 spec and also UASP function for even faster throughput.

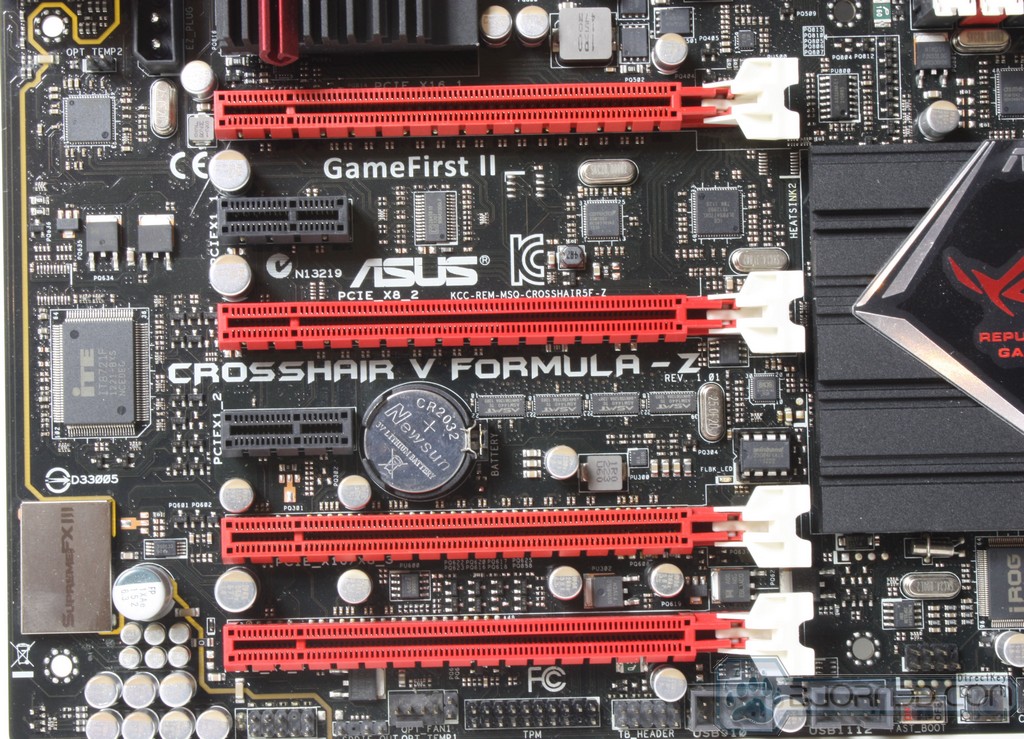

The GPU slot layout is nice and allows for dual card setups with lots of space for cooling or of course some ASUS triple slot high end cards. 3 way configuration users will be limited to dual slot cards or liquid cooled to fit but that’s not really an issue as there is only so much room on the board. The included x1 slots allow for NIC or Capture cards or whatever else you may have that does not need the higher bandwidth given by a over x1 slot.



Click Image For a Larger One

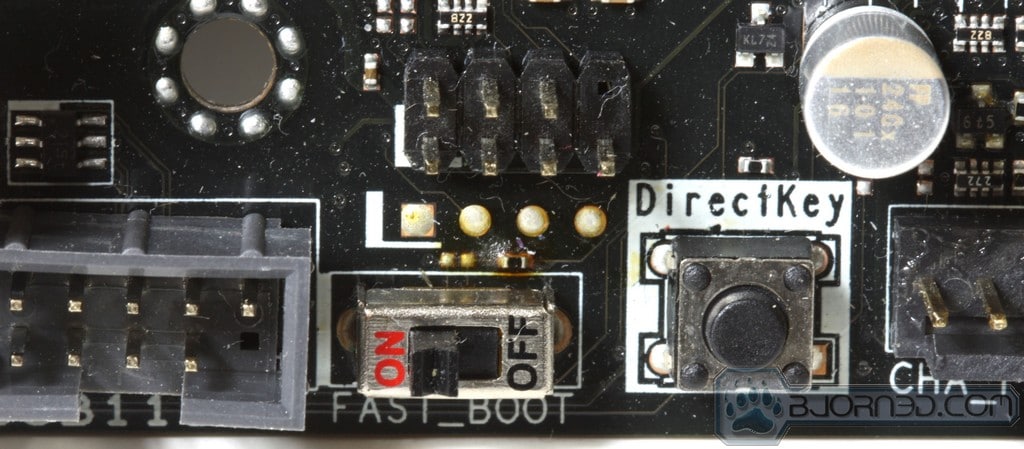

At the lower edge we see some of the key features we mentioned before. The Fast boot switch, which can be switched to OFF allowing standard posting and normal BIOS access without using the direct to Bios Button or header. However we see no reason to disable fast boot just to spam the delete key to enter BIOS, as after using the DirectKey implementation  we can only hope that ASUS hastily adds this to more boards for such effortless BIOS entry.

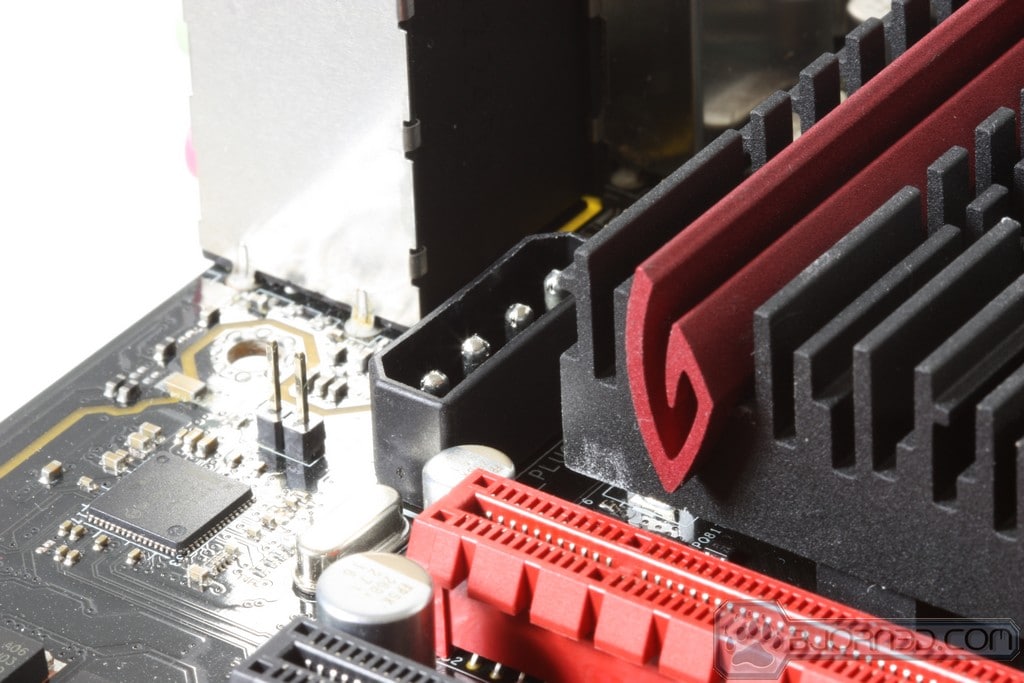

The Chipset/VRM heatsink has a standard red line when looking from the top, but upon further investigation we found the ROG eyes hidden within this heatsink insert which was a cool little discovery and simply added to the cool factor of the design. Next to this you can see the 4 pin Molex connector which supplies the GPU slots with supplemental power, and adjacent to that also you see one of the 3 optional temp probe headers. These headers allow for monitoring of anywhere you would like from another part of the board to a GPU, HDD or wherever the probe can reach.

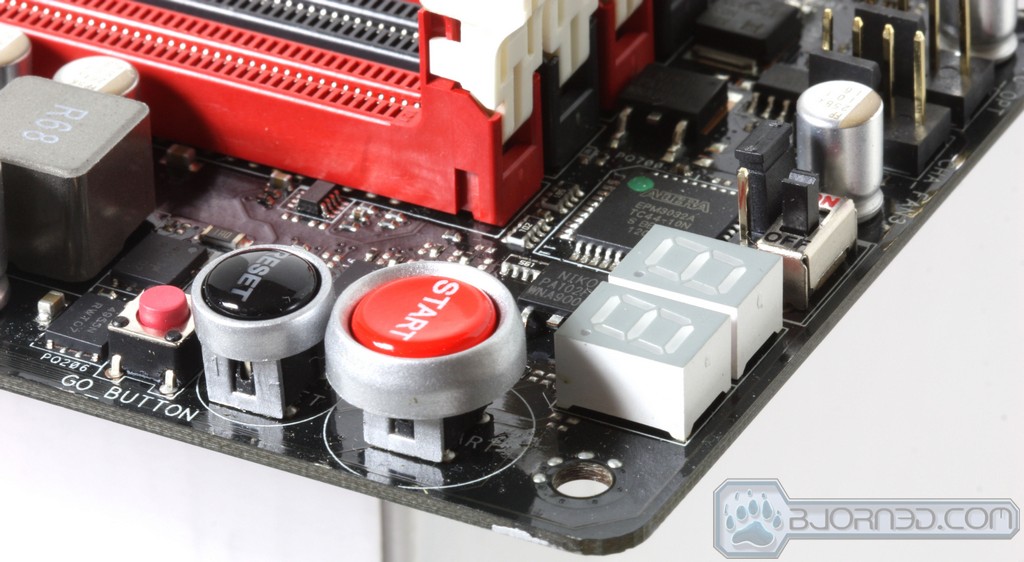

The top Overclocking Station area has some key components to assist with anyone looking to punch things up a bit in a benchmarking or bench table configuration. First of all there are the control buttons which allow for start, restart and Go Button profile loading for effortless board control. the LCD poster allows for post code monitoring to help diagnose a failed post or hanging during post condition. Also here is a LN2 jumper and Slow mode switch which are both tasked for those users planning to run the CPU with LN2 cooling. The LN2 jumper enables a LN2 mode which disables key protections and allows other over spec settings to be made for much more extreme overclocking. The jumper should not be enabled at any time during operation with normal cooling as some protections and tweaks are changed and can result in hazardous conditions for your hardware if proper cooling is not applied. The Slow Mode switch is in place to allow the board to manually force a throttle down operation so that users can tweak and tune the system at the much lower speed then engage full speed performance once everything is dialed in.

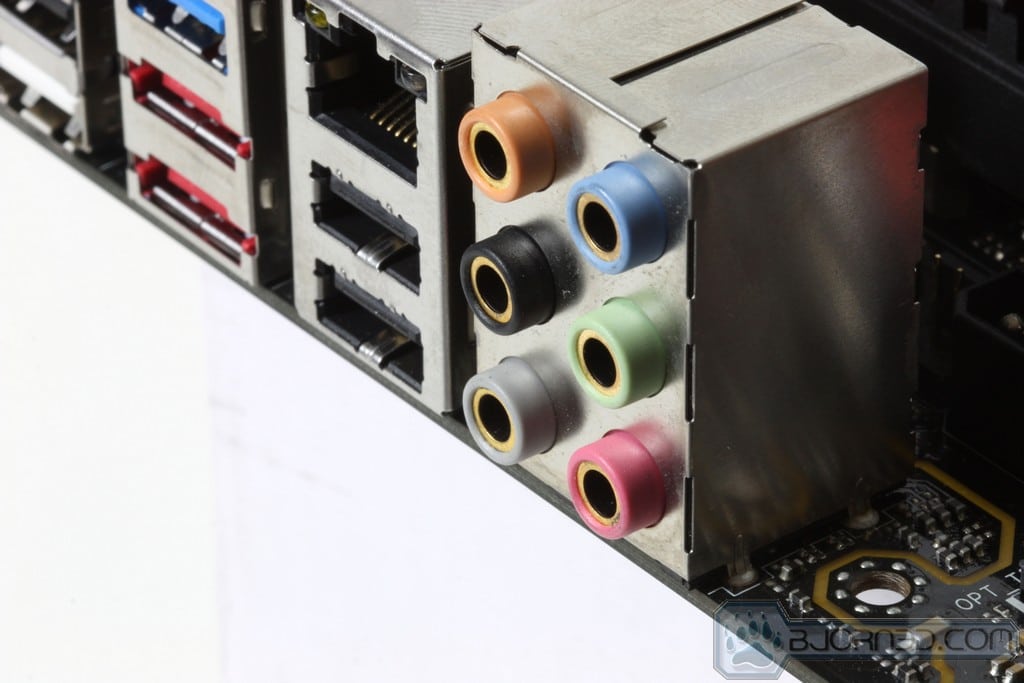

The Audio ports on the IO Block fed by the SupremeFX III solution have gold insert sleeves to maximize signal transfer which in turn allow for much better audio sampling and overall better performance.






Click Image For a Larger One

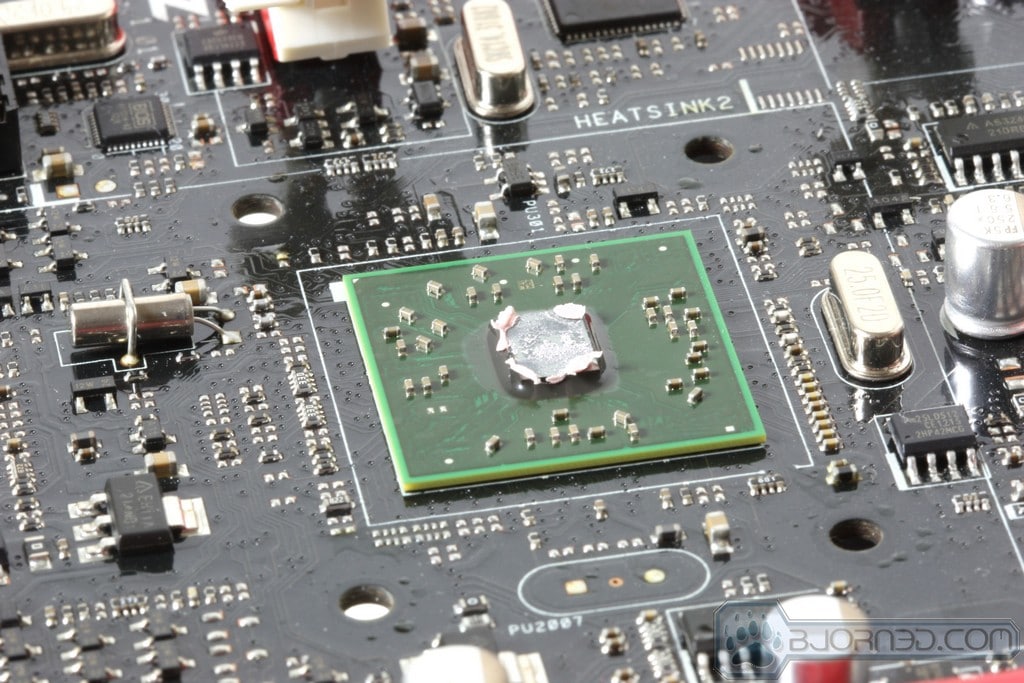

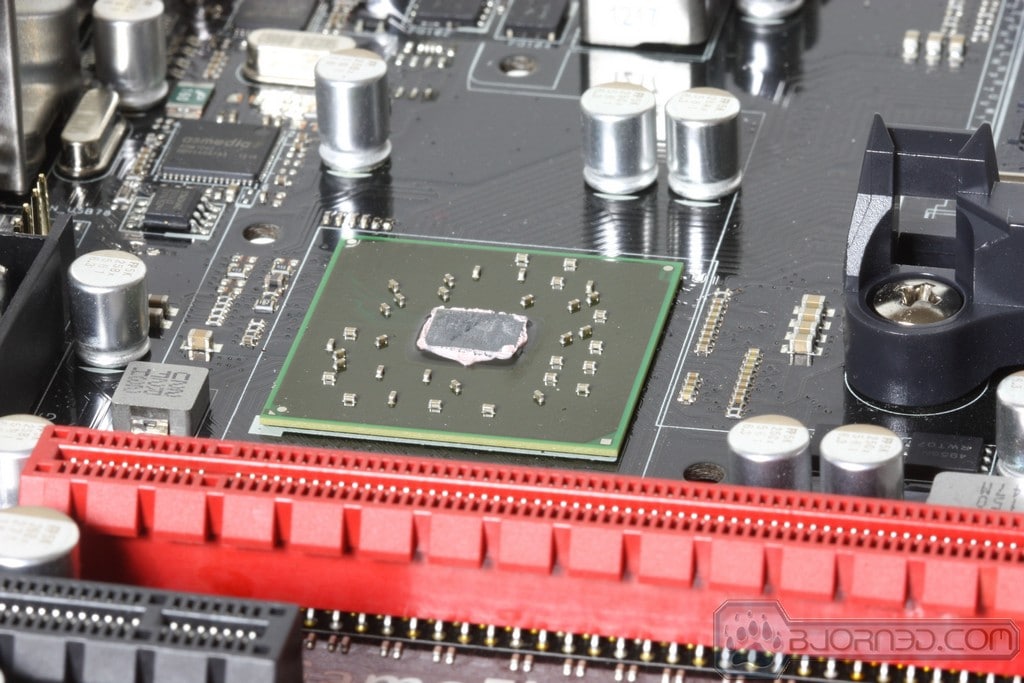

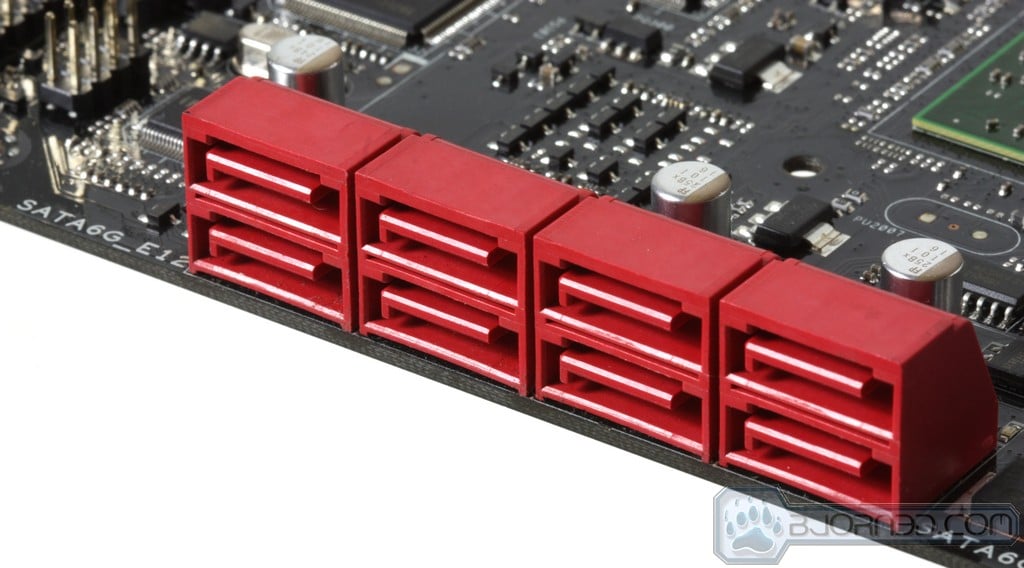

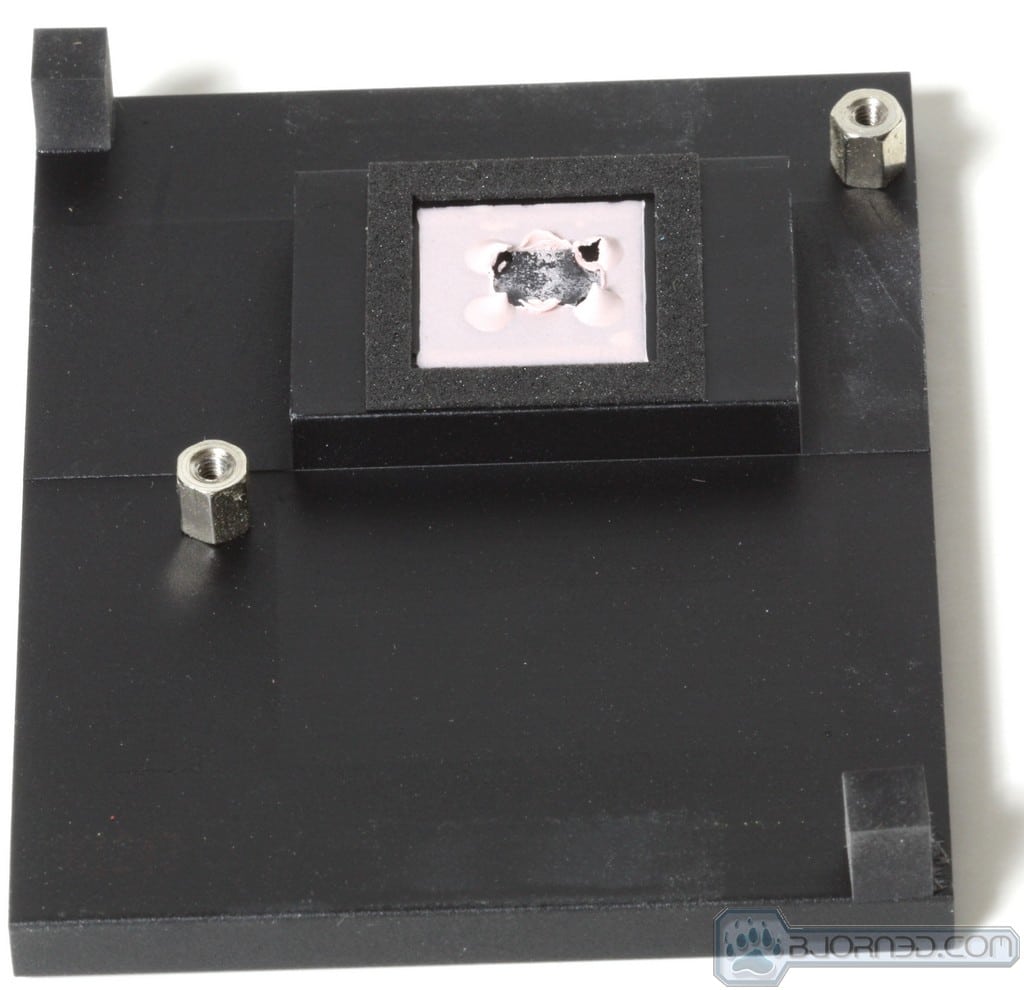

Here  is the SATA ports which there are eight, six are fed by the SB950 chipset at 6G speeds and two are fed by an ASMedia chipset and are also 6G capable. Also shown here are the two chipsets which makeup the Crosshair V Formula-Z platform after the heatsinks are removed.

Click Image For a Larger One

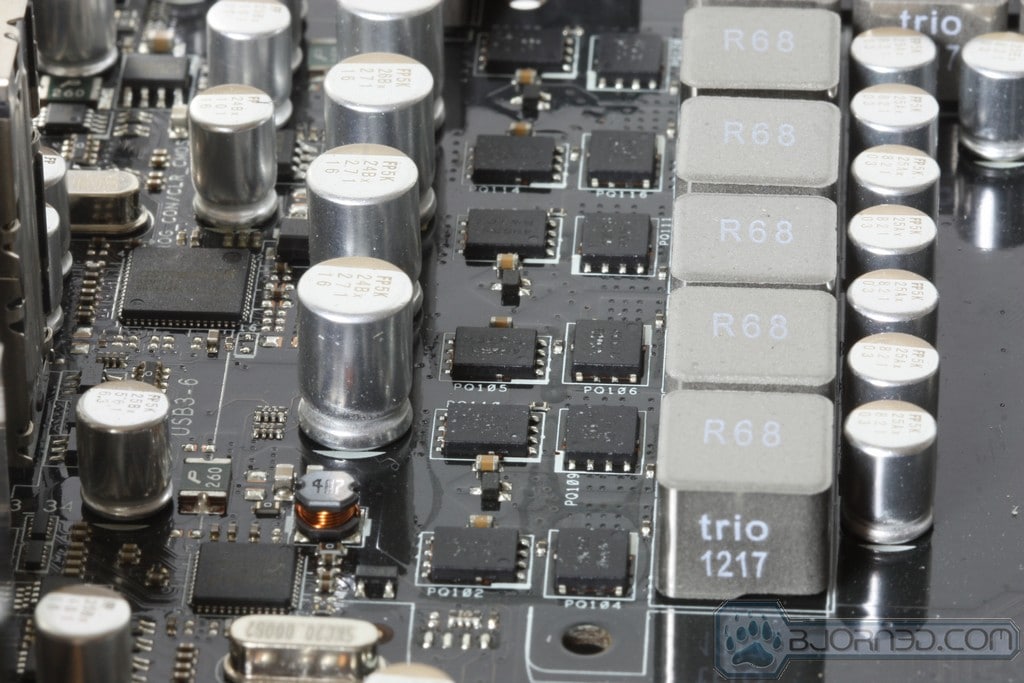

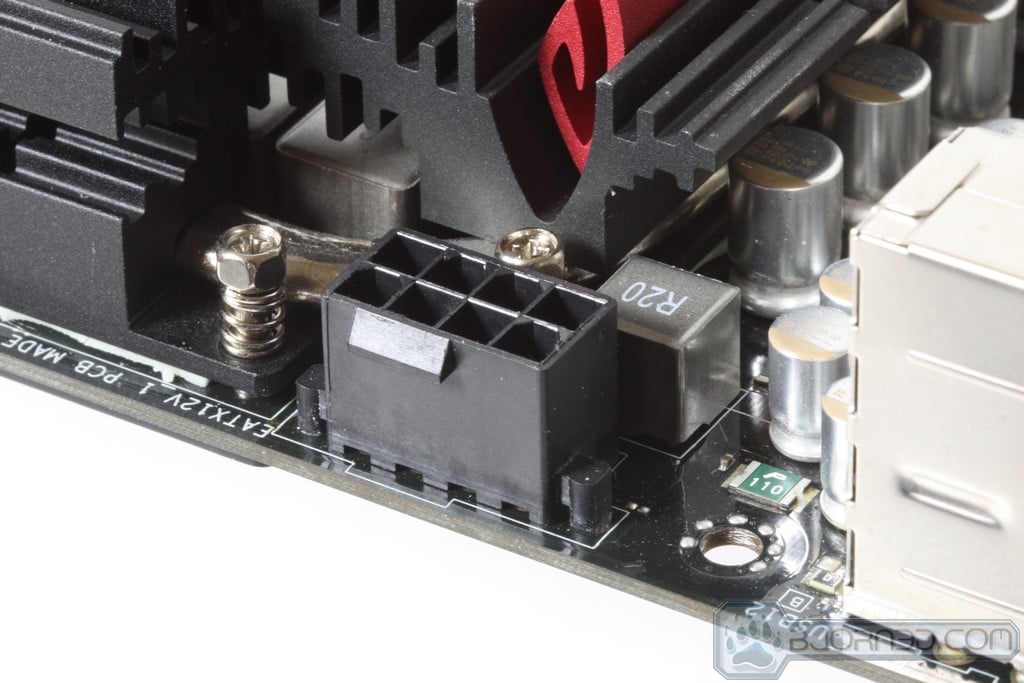

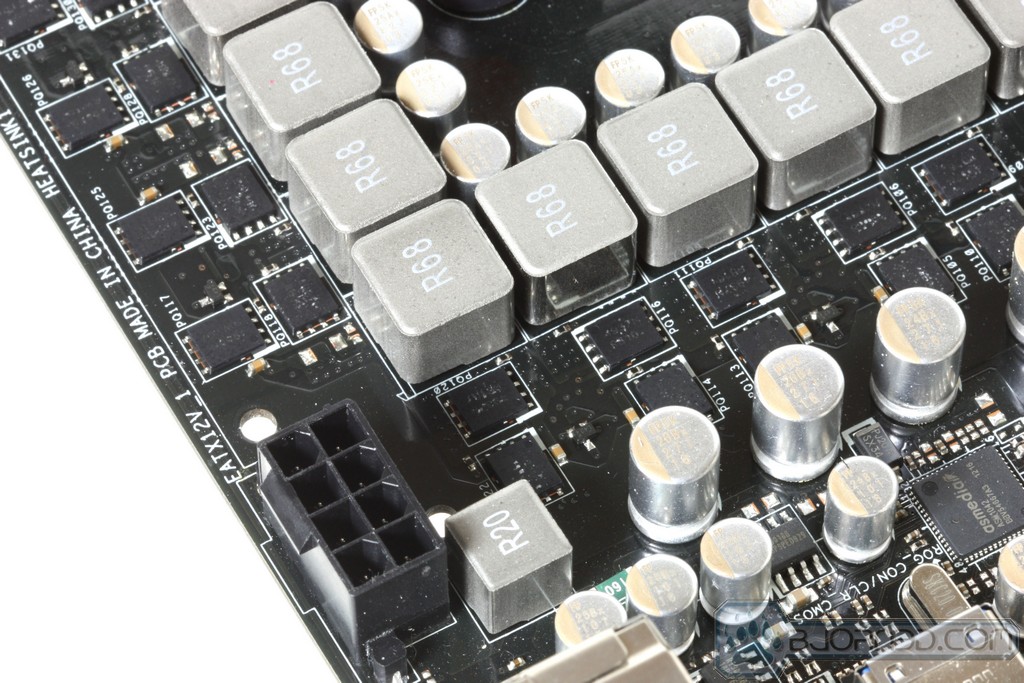

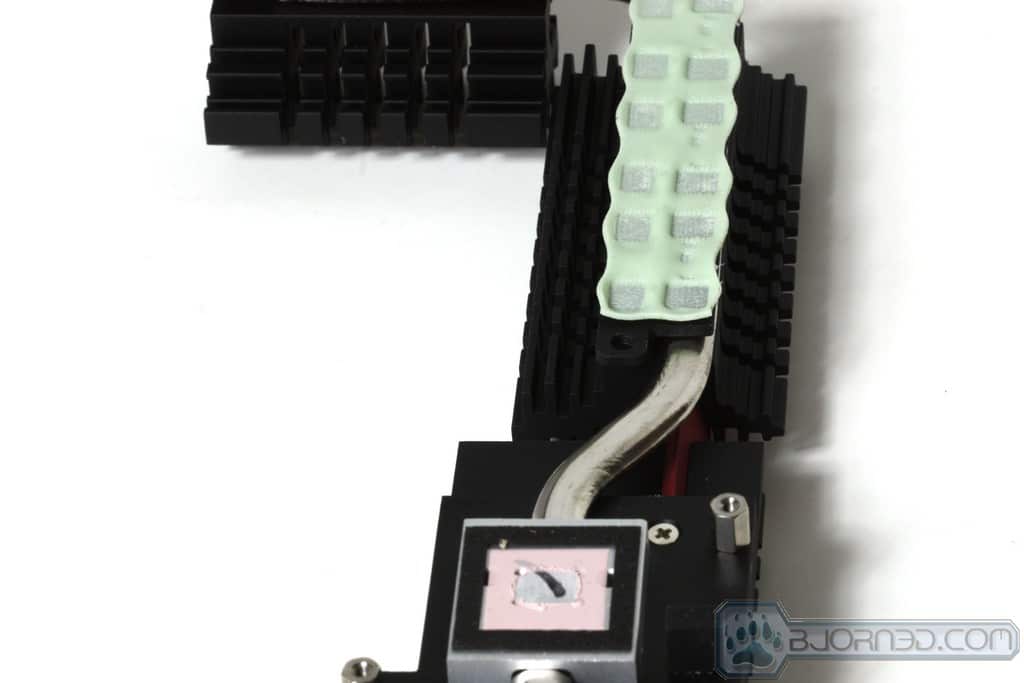

The VRM on the Crosshair V Formula-Z board is very capable and large. The VRM cooler also spans down to cool one of the chipsets as well which means there is definitely some heat to this cooler and you should make sure there is some airflow passing across it to avoid thermal issues. The components as we know are well picked and very capable as it has been proven on many ROG board including the Maximus line of Z77 boards. The VRM is fed by a single 8 pin connector and a supplemental 4 pin which ensures should you want to really push the limit you should never run short on juice. One thing to note is that the VRM cooler does get warm with the absence of airflow, but even when warm we saw no ill effects or poor performance when overclocking, but to assure good longevity to the components we would recommend a spot fan for the area if running in a test bench area with low airflow.


Software Overview

AMD Overdrive

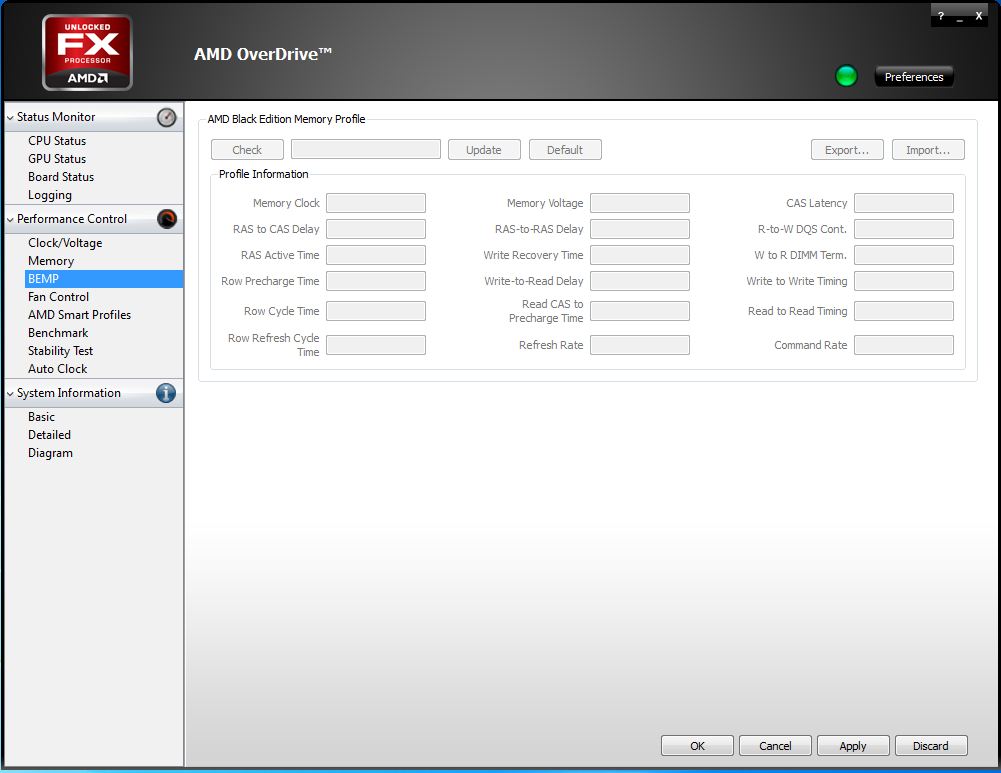

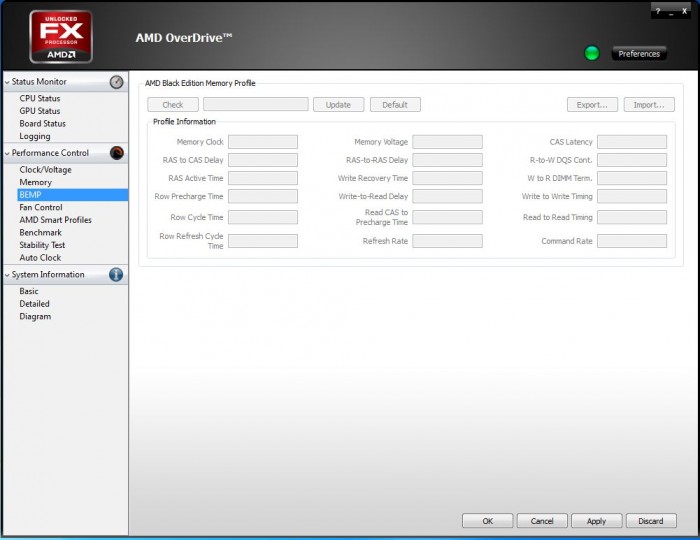

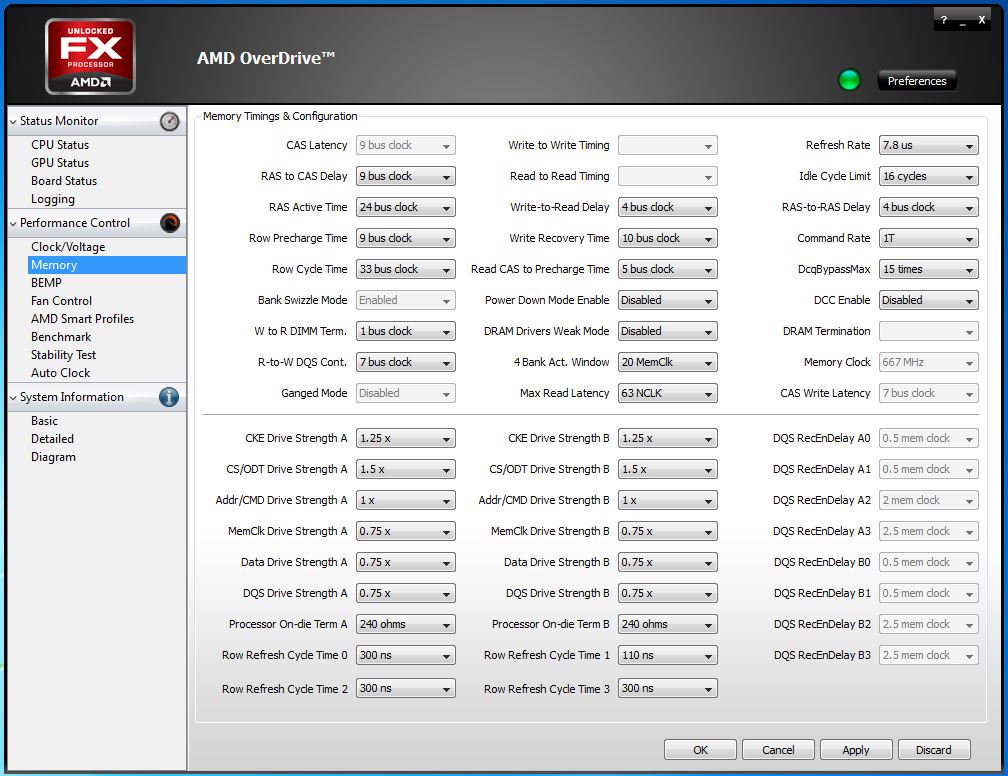

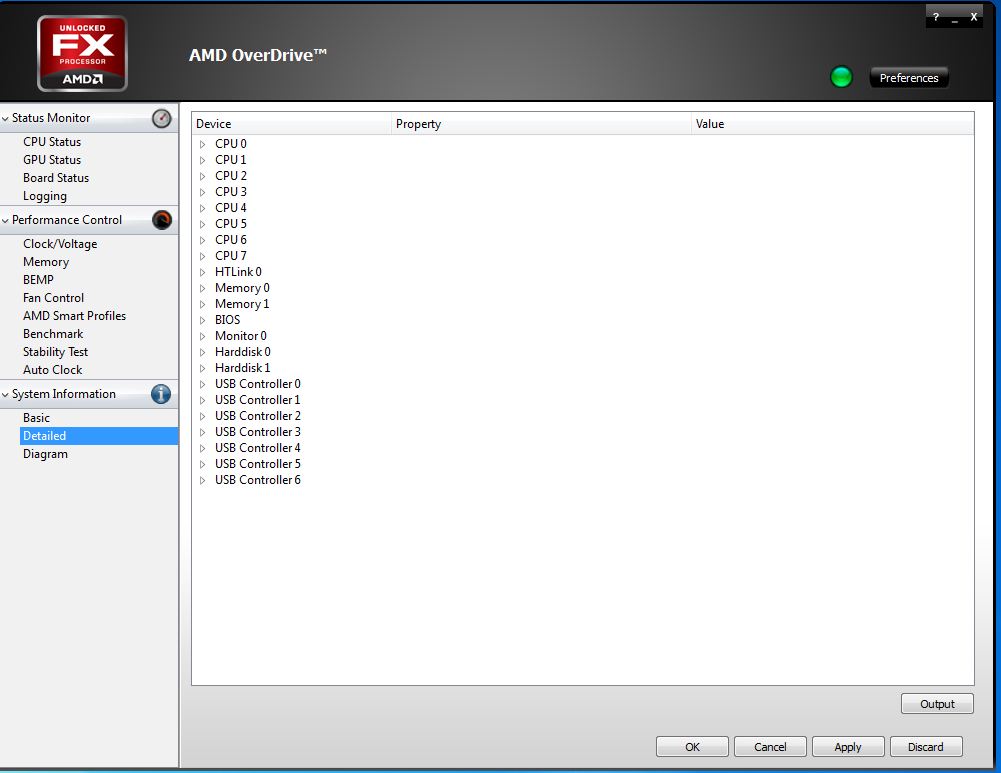

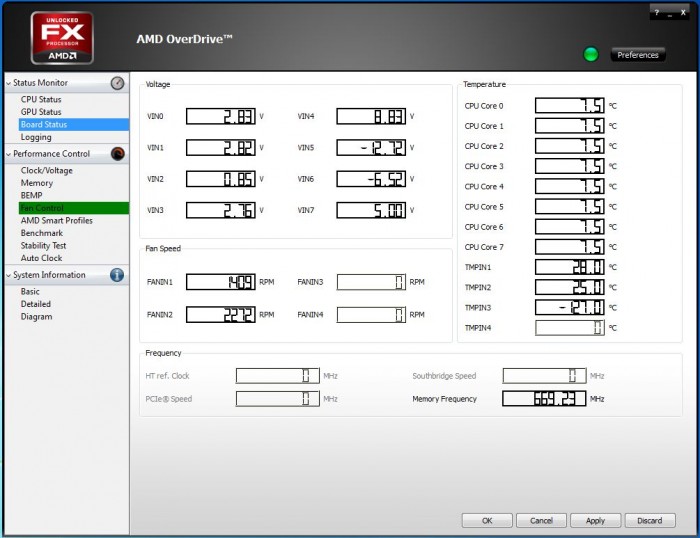

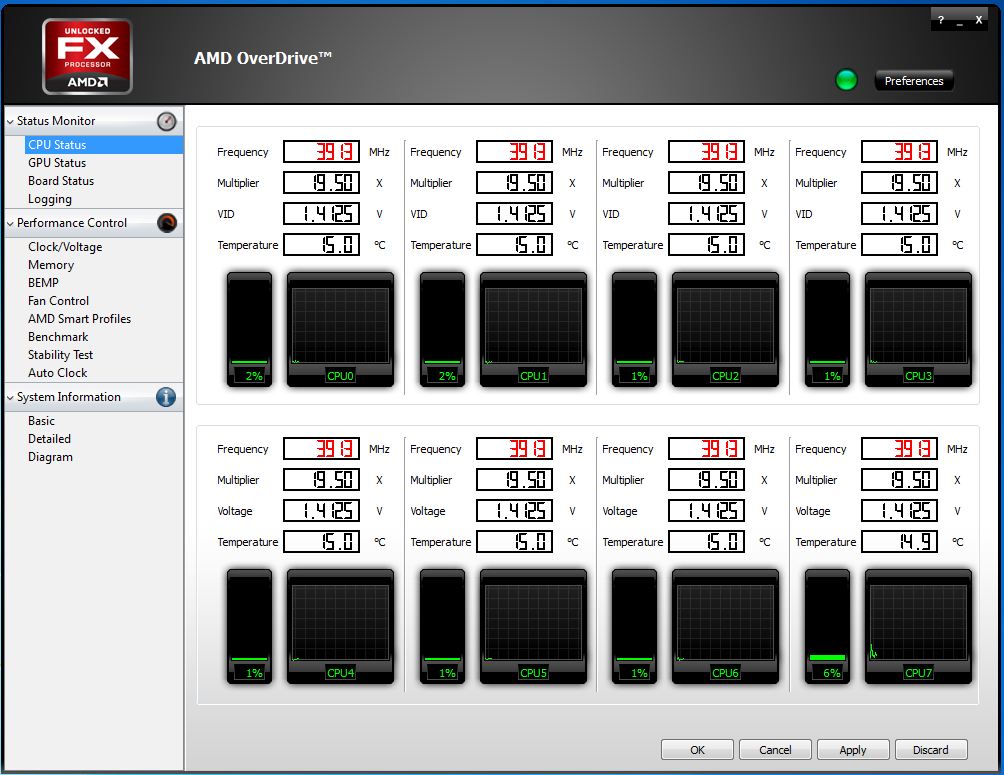

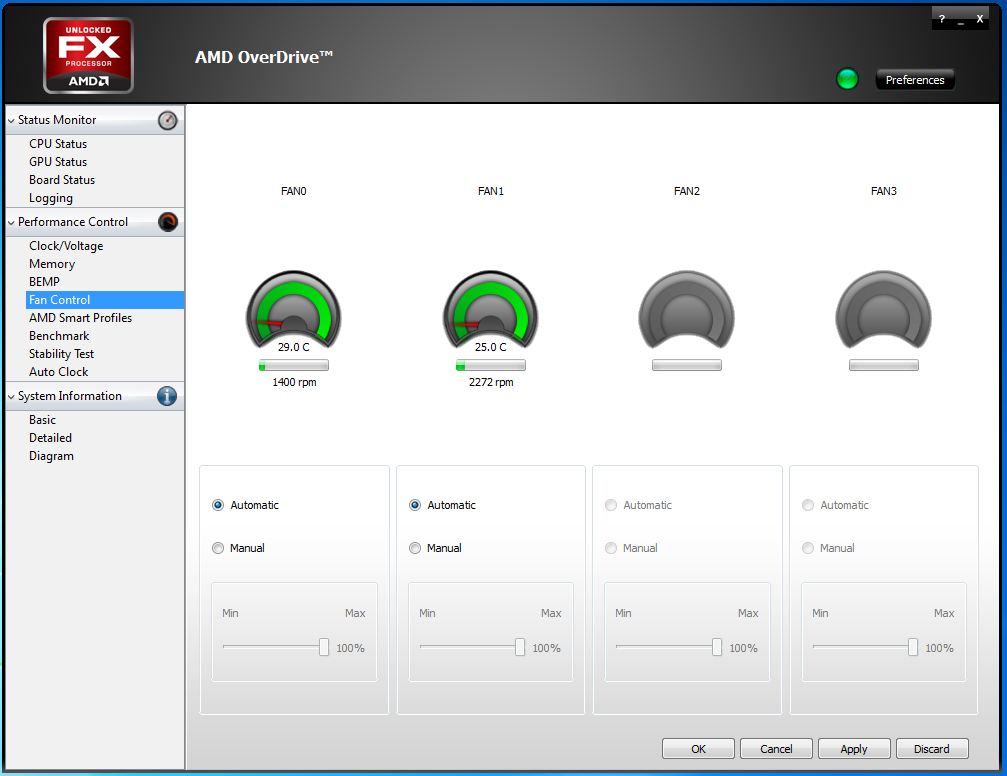

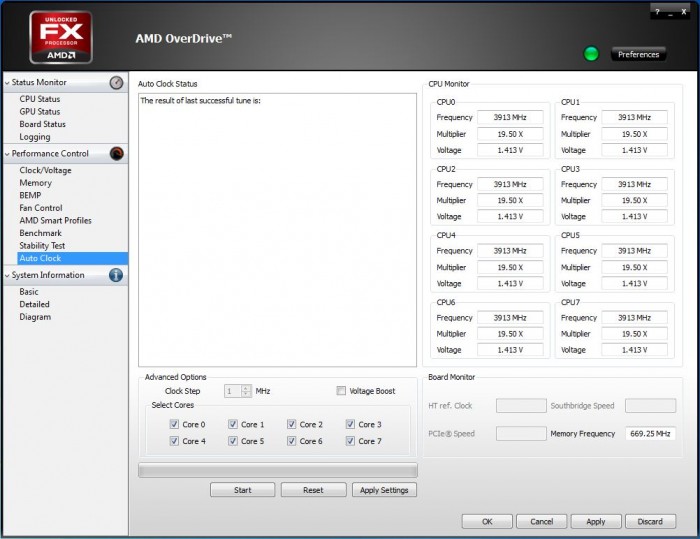

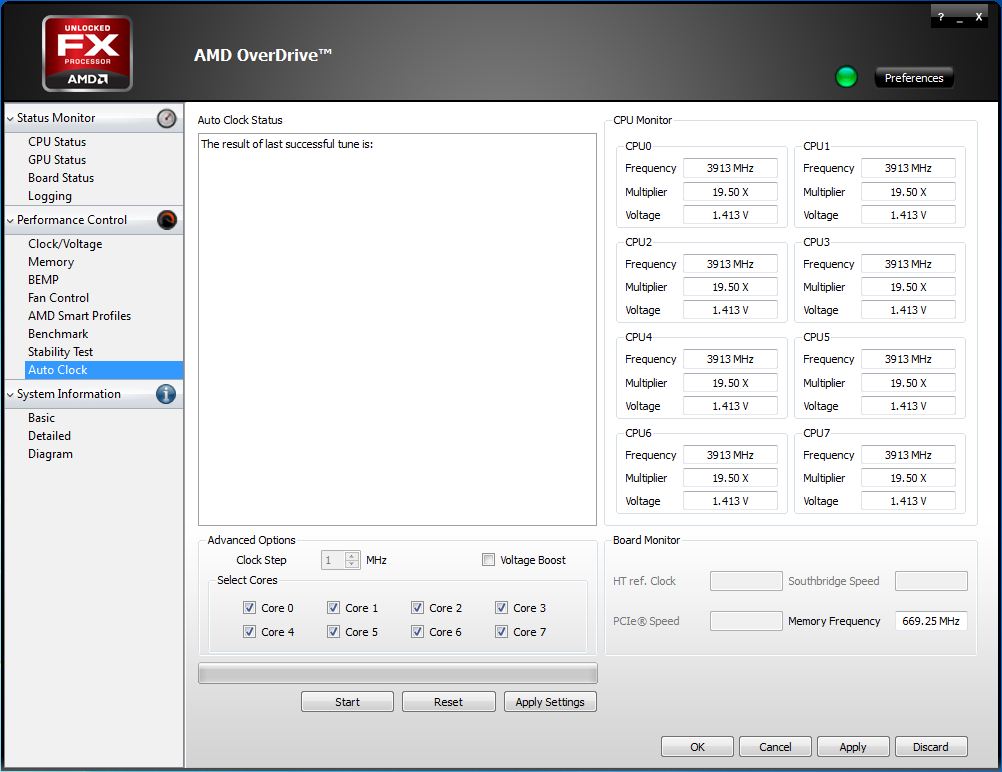

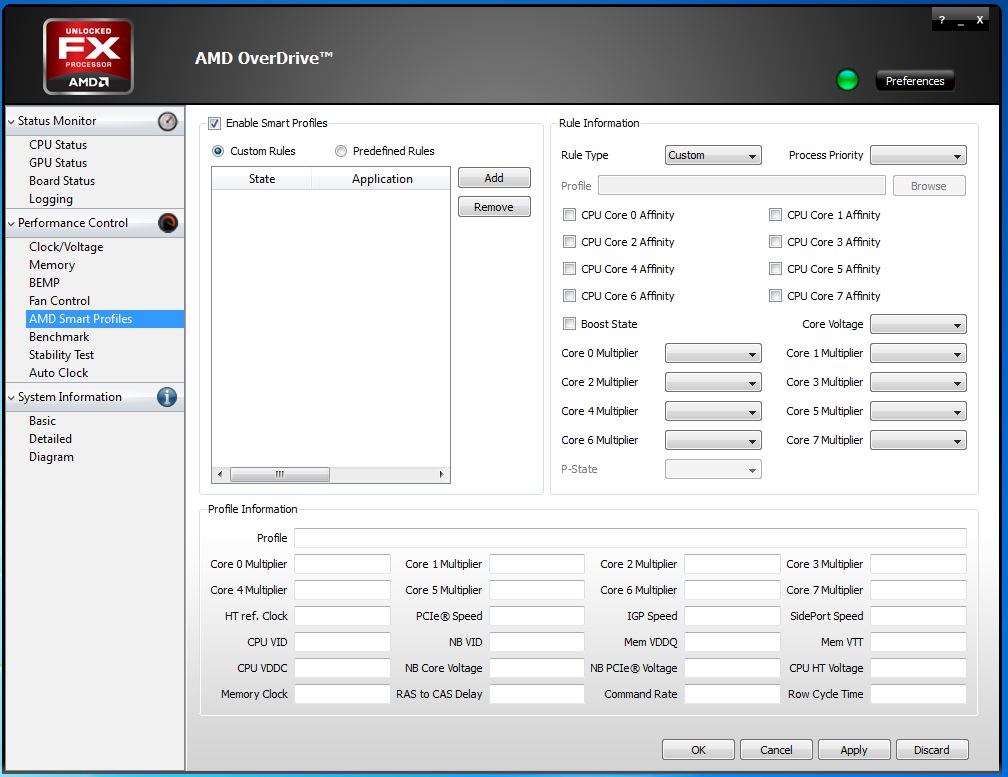

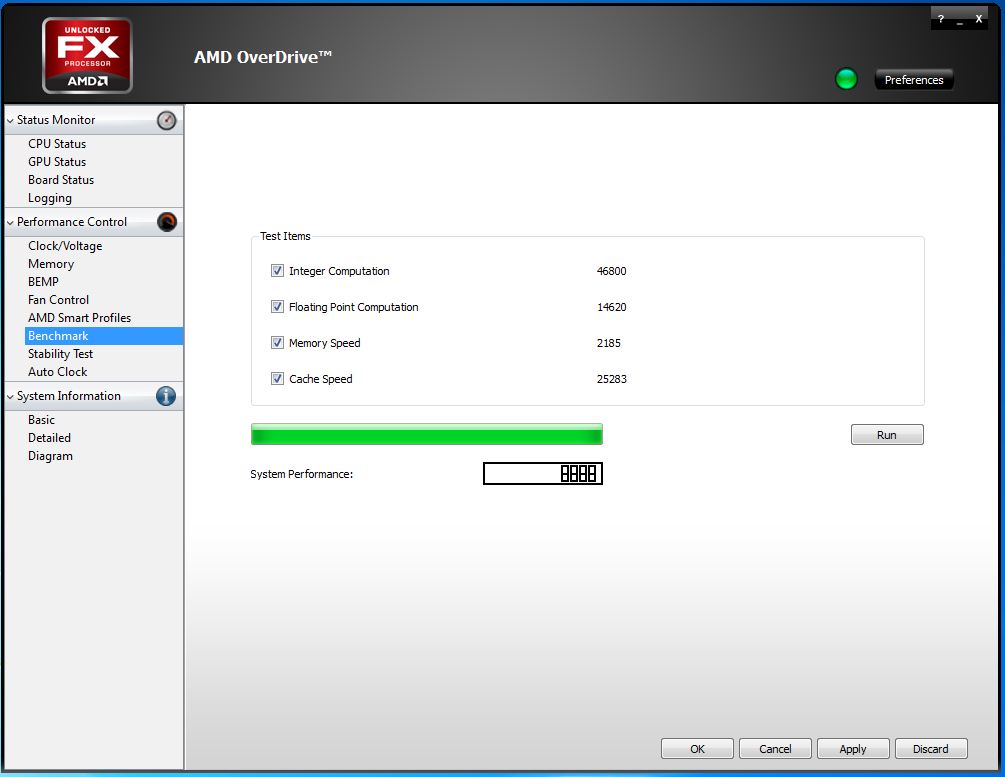

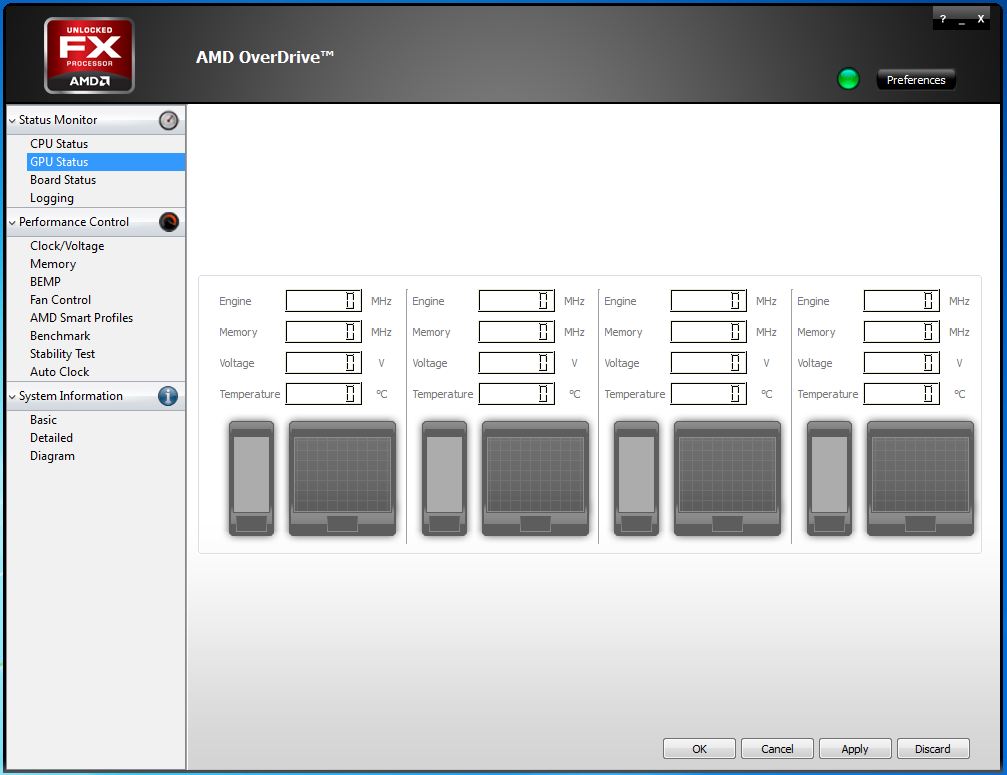

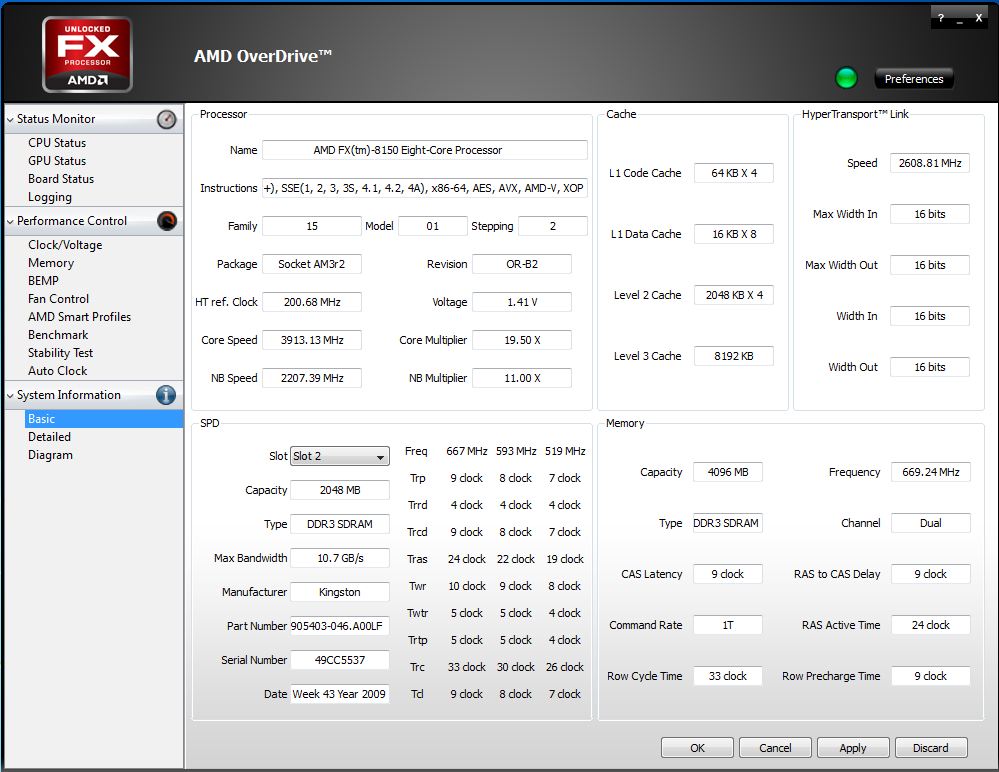

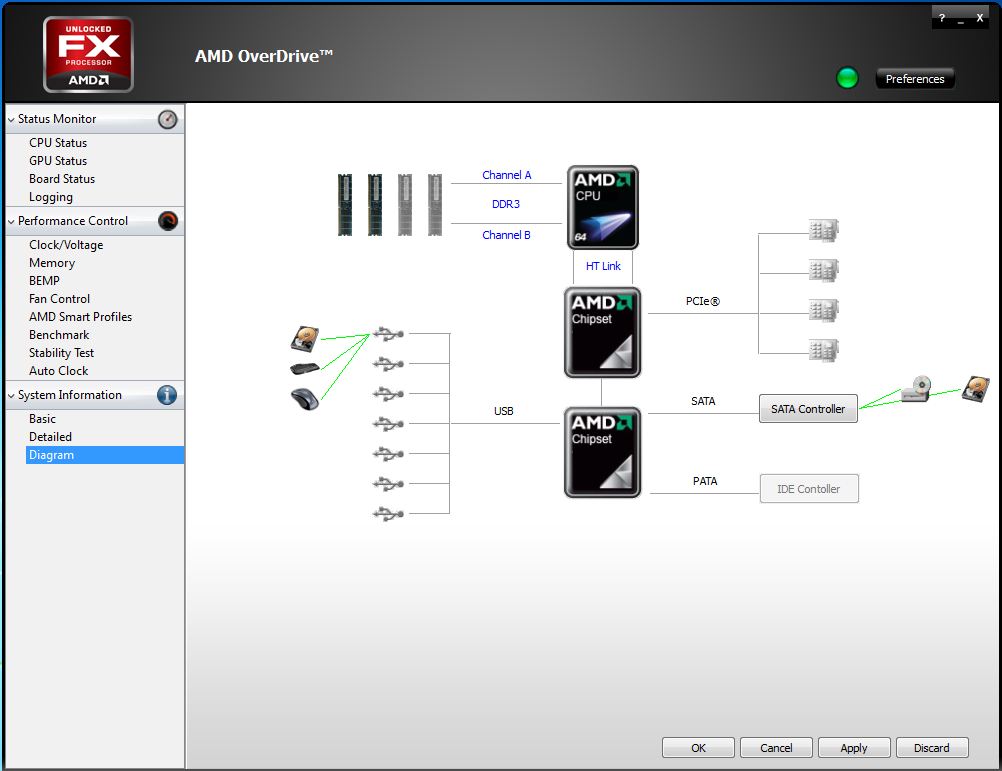

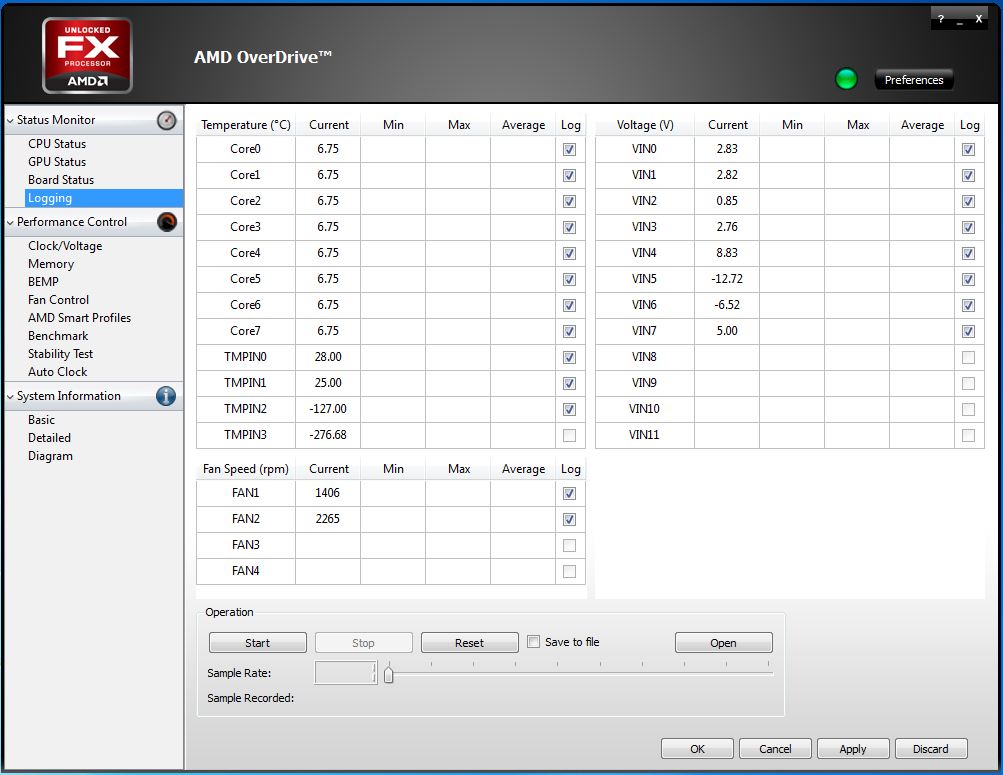

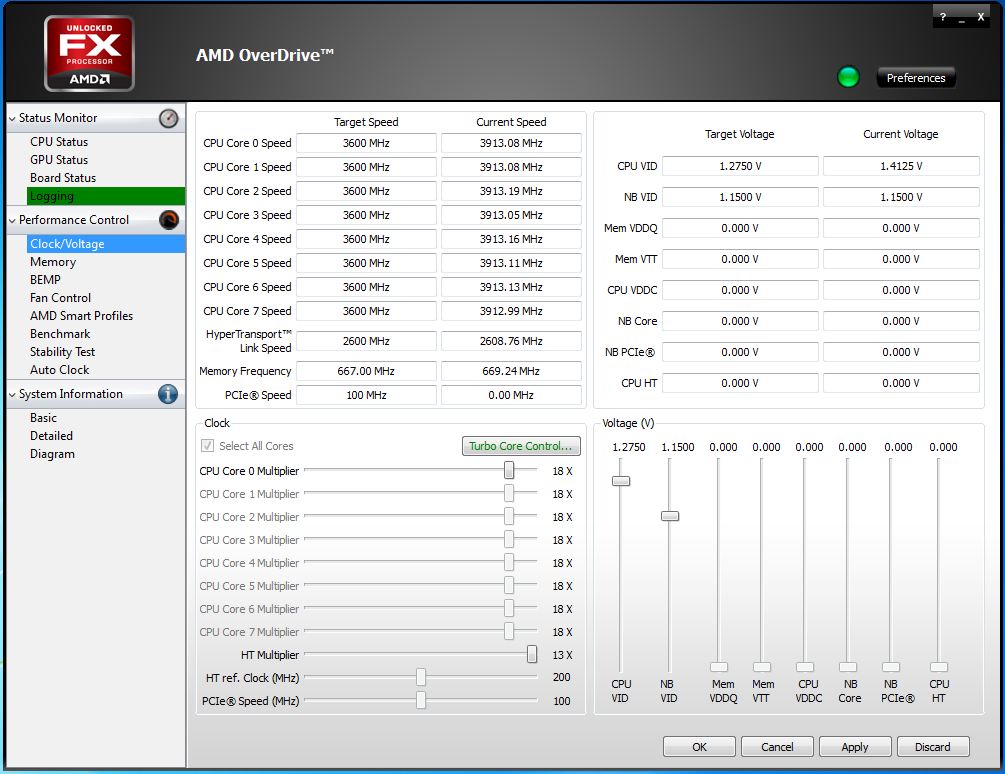

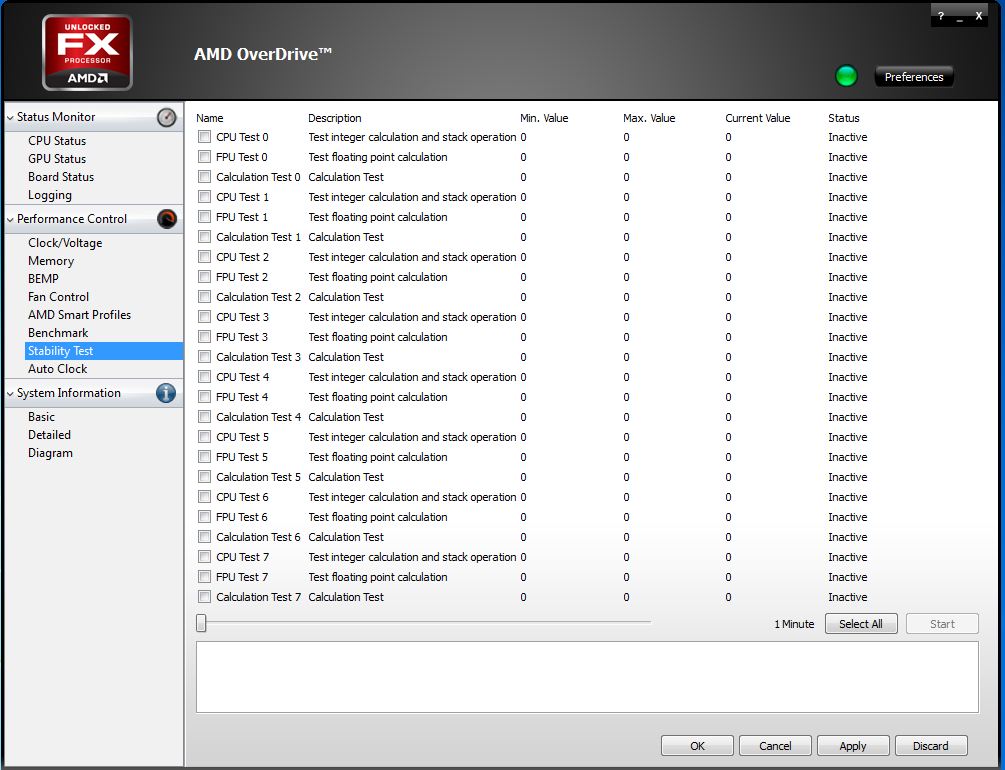

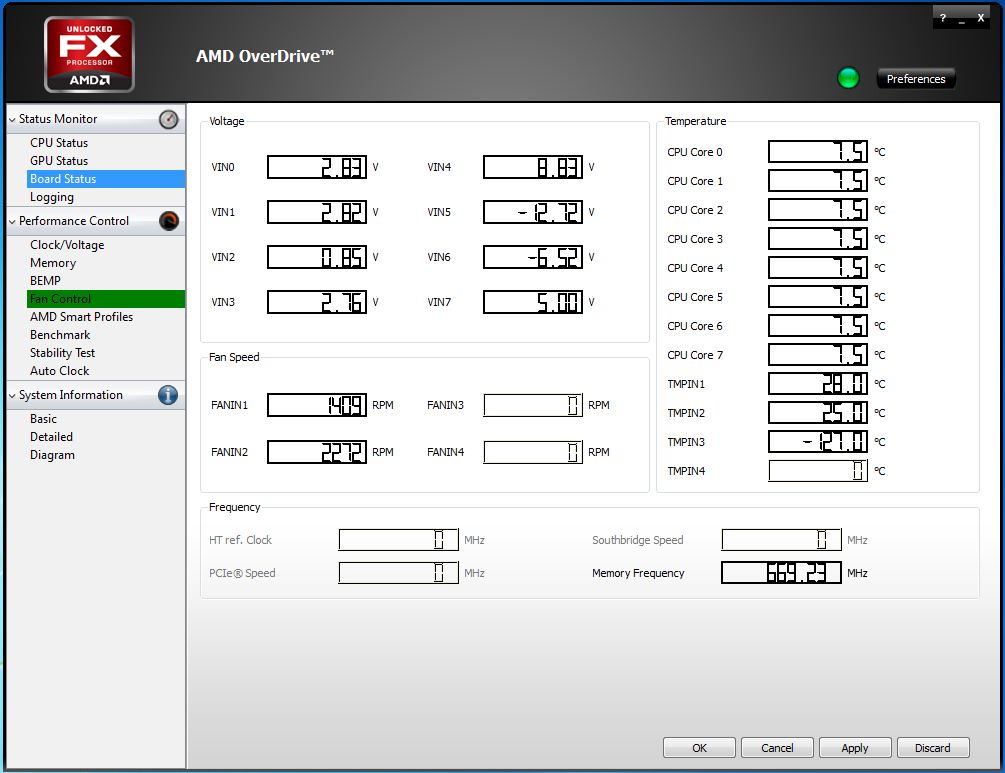

Here is the AMD Overdrive utility which comes direct from AMD is quite useful and allows monitoring down to a very granular level. We even found an area where it showed devices and in a block diagram format showed how they were connected. Within the Overdrive utility we also found many helpful tool for overclocking and even stability testing which is nice as it is basically an all in one solution. The Overdrive app even has a benchmark application which gives a repeatable numerical score that can be used while tweaking to check for real improvements in performance.

Overall the Overdrive utility is a good universal tool with some real capabilities but now lets look at the ASUS provided tools in the AISuite utility.

AISuite

ASUS has not strayed too far from their already successful software design. However we can say that the software has been tweaked and improved while also adding new features to ensure users get the full control they expect from their board.

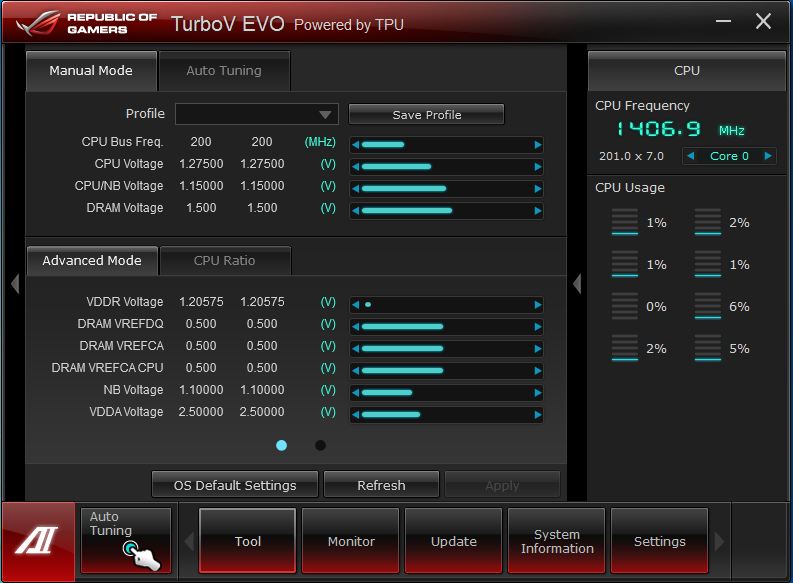

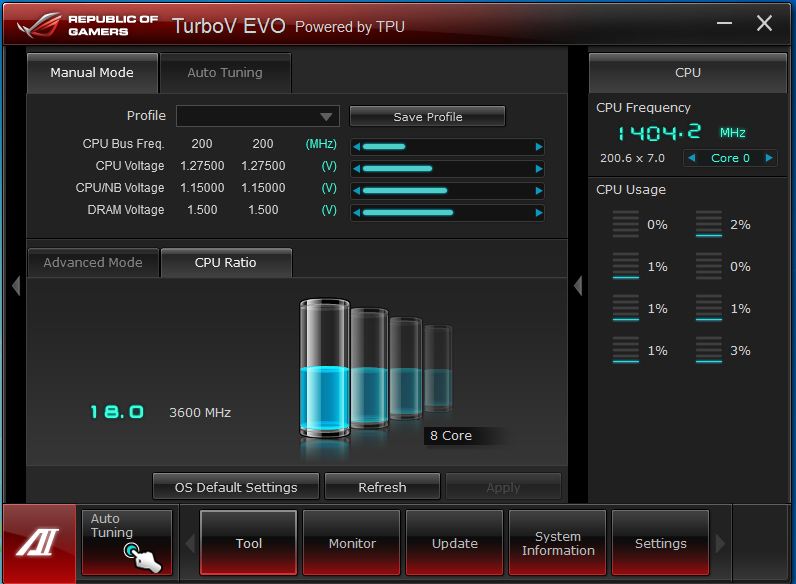

The TurboV EVO tool is used for OS based overclocking and tuning. This allows for tuning of voltages and frequencies outside of the BIOS and could make a difference as some chips simply do not boot at a certain speed but can be adjusted up to a higher speed once in the OS.

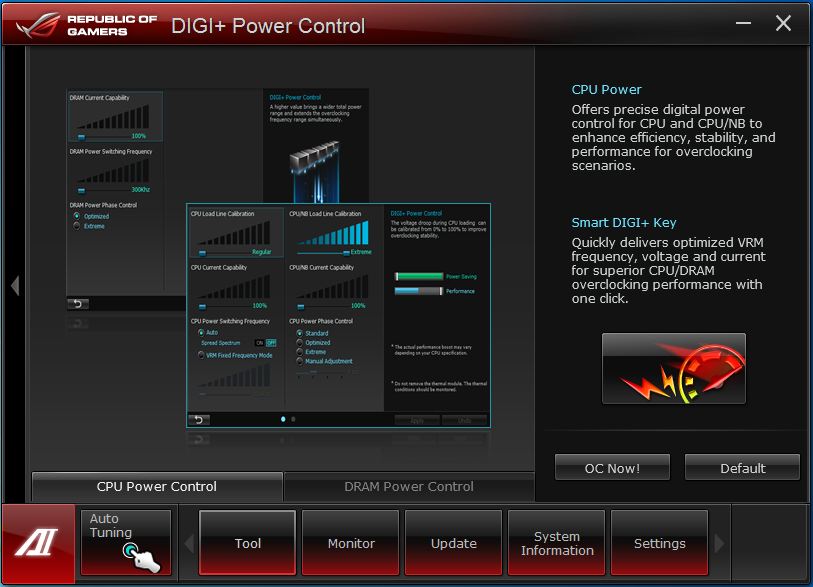

The DIGI+ Power Control Center has separate sections for DRAM and CPU. DIGI+ has to do with ASUS’s implementation of its industry leading digital power controls, which have been proven for excellent efficiency and accuracy which leads to better overclocking potential.

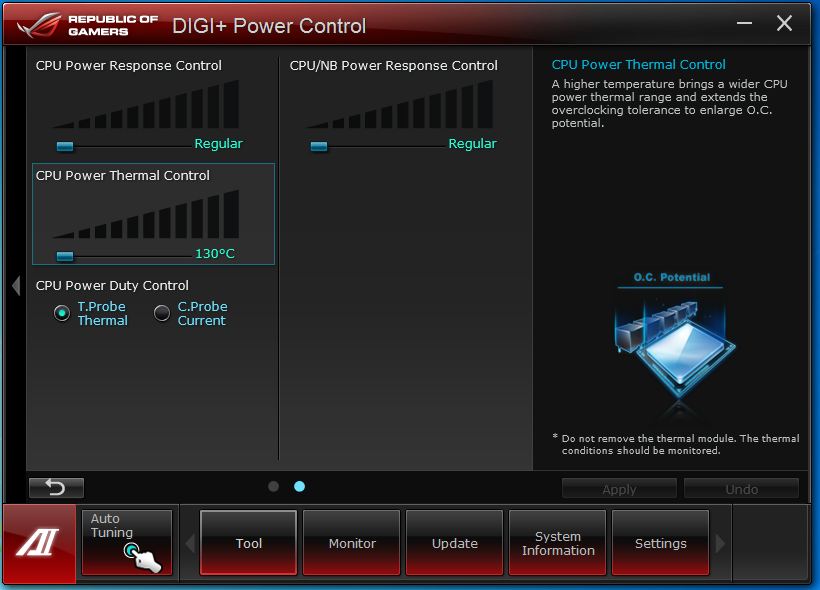

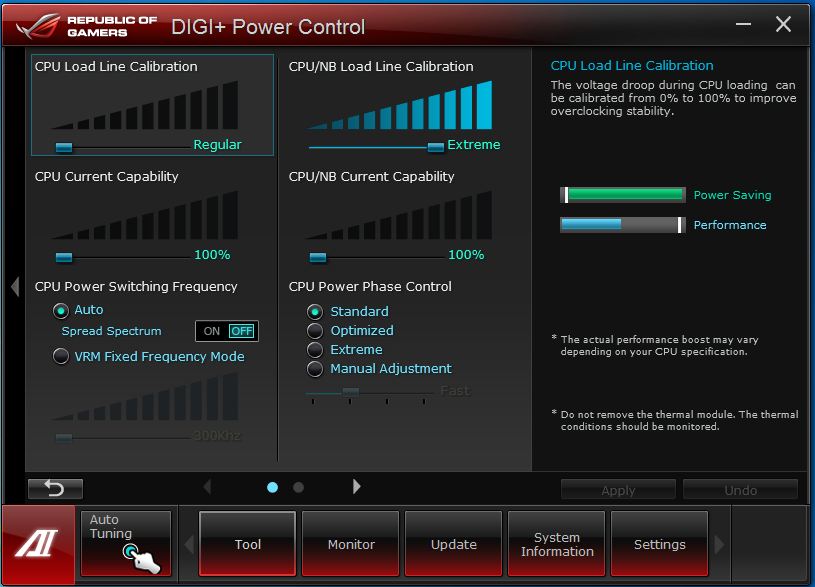

The DIGI+ screen for CPU control is where we can adjust all settings related to CPU and VRM controls. This includes VRM frequencies, thermal protections and even thresholds. These are the settings you will need if pushing the limit on your chip.

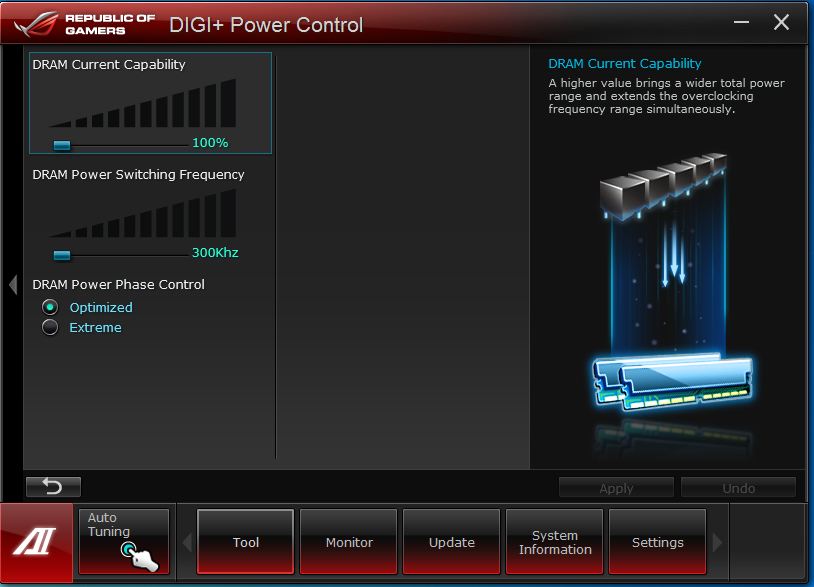

The DRAM settings allow for maximum tweaking of the memory power circuits and how they behave. Much like the CPU counterparts we see this as very useful the more you push your DIMMs.

AI Charger+ allows for charging of high draw Apple iDevices at a much higher rate than before.



USB Charger+ is much like the AI Charger but for non i-devices or Android phones, tablets or high draw USB charged devices.



Here is the USB 3.0 boost which was covered briefly before as it allows a speed boost to many USB 2.0 storage devices and even some supported USB 3.0 storage devices by changing the communication protocol being used.

A full list of supported protocols and presently supported devices can be found here







The System info screens show all of the key system specs included memory SPD info along with CPU data and also motherboard key information.



ROG Connect

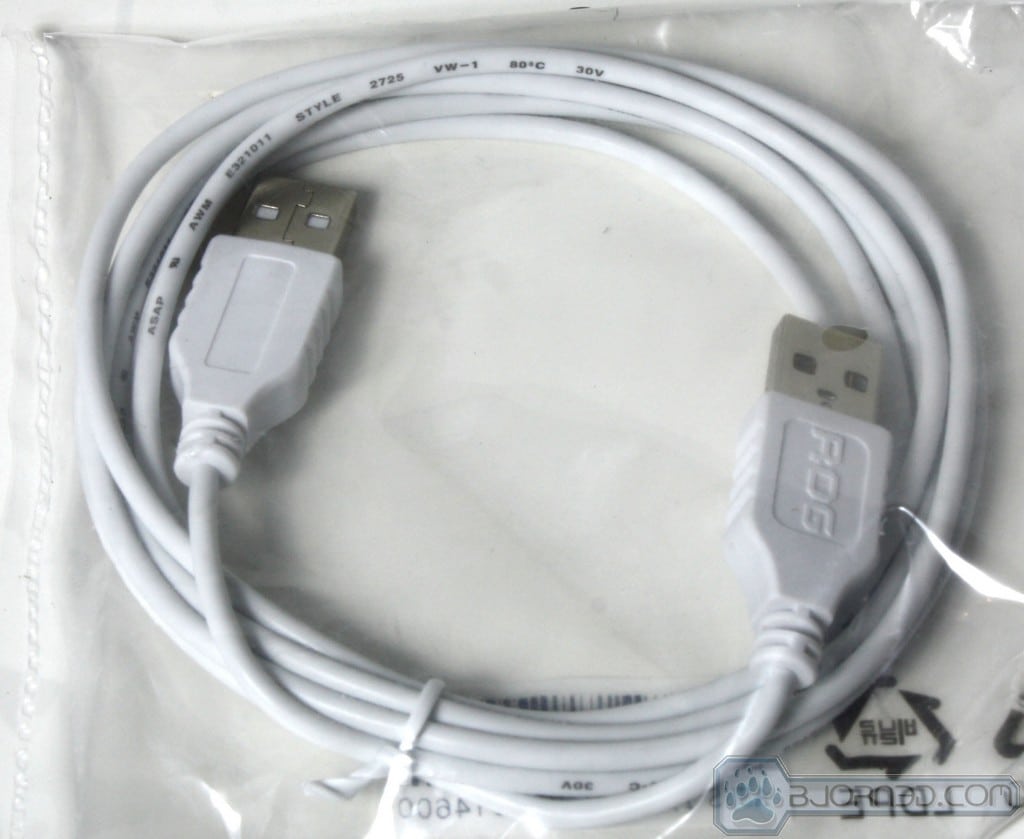

ASUS includes the ROG Connect utility with all their ROG boards. This allows connection of a remote computer via USB (with an included USB cable), which allows not only remote monitoring, but remote control of ROG boards from the separate connected system. as we see the ROG connect is the same between all of the ROG boards which is great for familiarities sake and ability to switch platforms.



Here we have the main screen. This is RC TweakIt, which allows adjustment of all of the main voltages along with monitoring of voltages, temperatures, frequencies, and fan speeds on the remote system. This is our home screen and all menus we see from here will be accessed via this main screen to start.

Here we have the RC Remote which allows a few key functions such as:

  • Power on
  • System reset
  • Power Off
  • Clear CMOS

This kind of message will be displayed to ensure no unintended operations or shutdowns occur because of an accidental click.



During POST, with a system connected, we see this display which tells us which point in the POST process we are at presently. This will help greatly when overclocking, in the event we suddenly run into a POST issue.



Here we have the RC diagram tool which allows remote monitoring of many sensors for fan speed, voltage/amperage, or temps to ensure our system is running well. We were very interested in the amperage of the CPU, which gives us a very good indication of the low power cycles were able to achieve during periods of idle usage.



Here we see the GPU TweakIt option, which allows remote control of our ASUS GTX 580 Matrix Platinum. This program allows frequency, voltage, and fan speed changes. This could be helpful while benchmarking.



GameFirst II



 GameFirst II is yet a further improvement on the packet priority and traffic shaping controls to give you better control over your online experience. Individual programs can be tweaked for network priority to allow for full control over which programs get top spot on network access which means that downloading while gaming online is not really an issue any longer as your important game packets will get better ping and priority while the download packets can still be transferred as well.

Note that the software does not work just on the included Intel controller but also on any other controller installed, such as PCI-E based WiFi cards.



BIOS Overview

Extreme Tweaker

Click Image To Enlarge

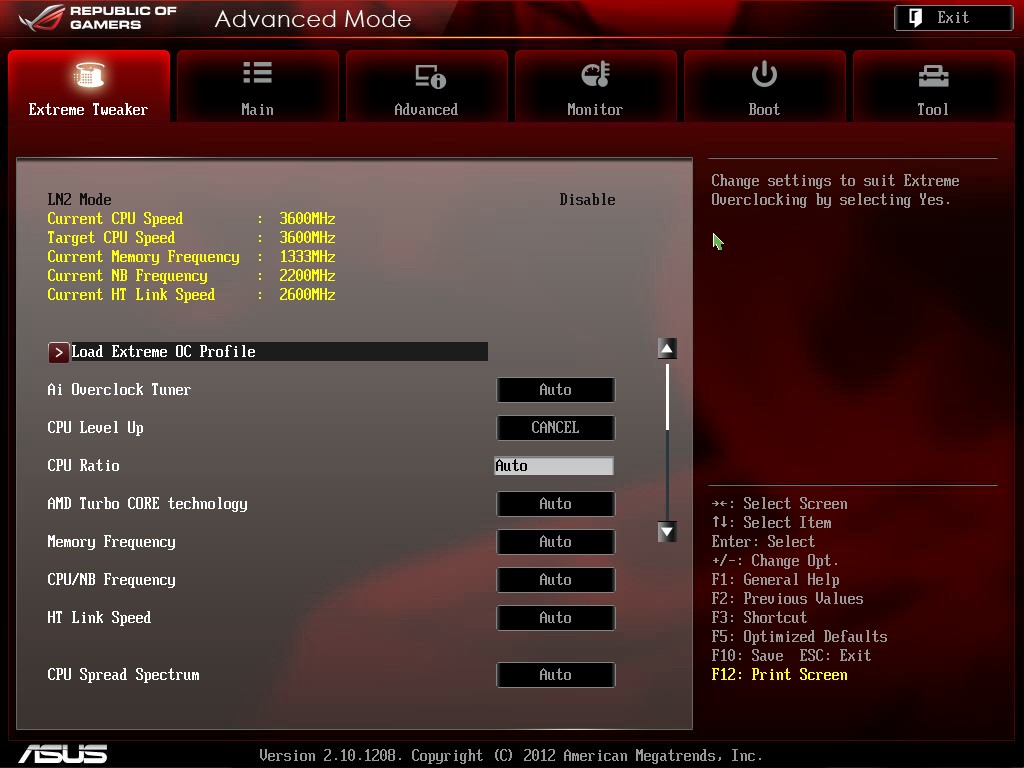

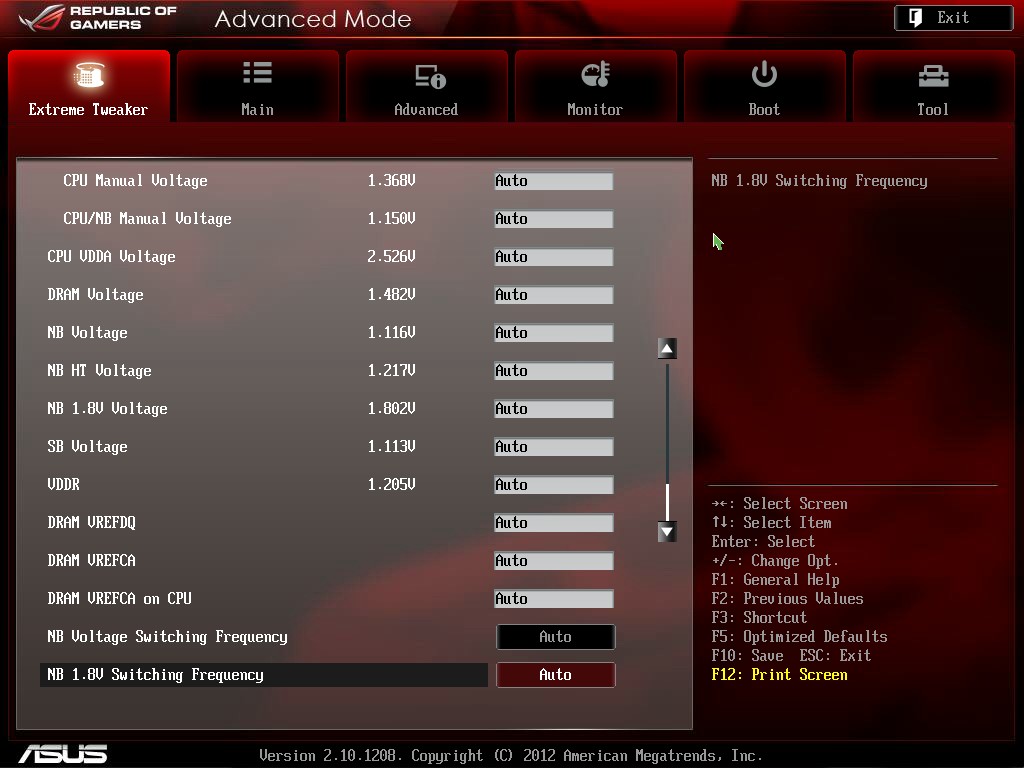

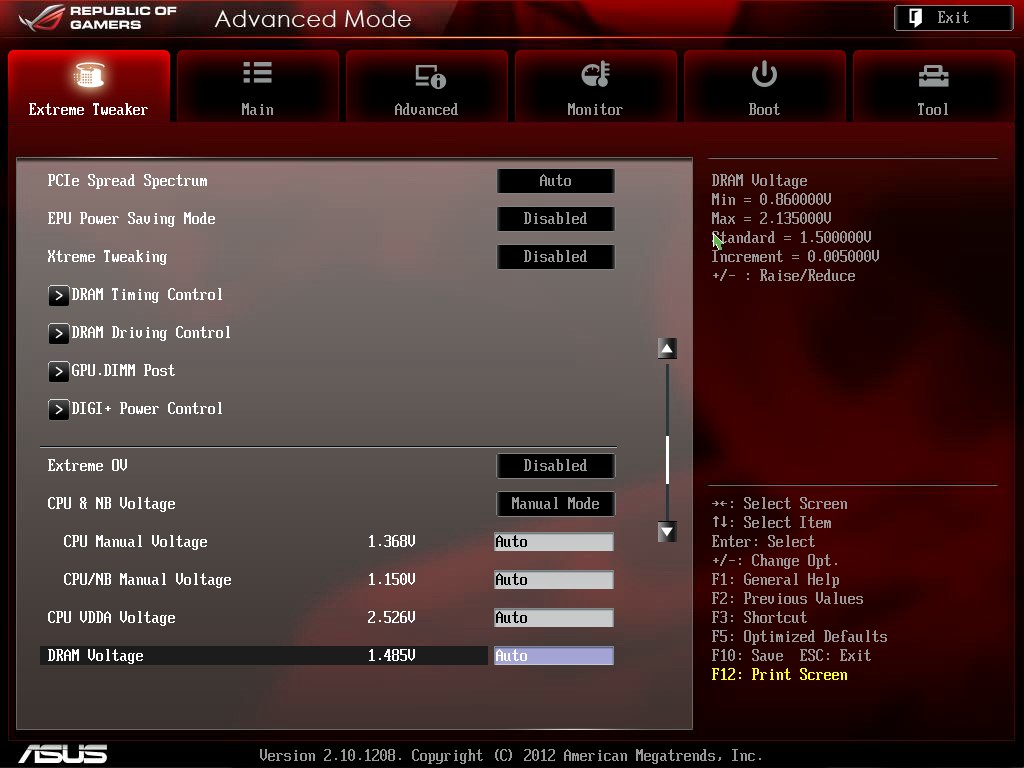

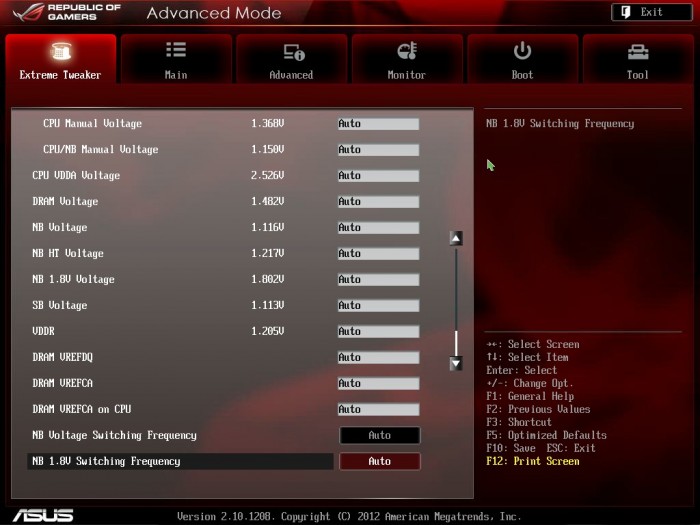

Here we see the Extreme Tweaker main page. This is the base station or starting point for tweaking and overclocking the board. You will notice there are many settings just waiting to unlock all kinds of fun with the right cooling. One thing to note which is missing are the “Extreme” profiles but for all of the extreme benchmarkers out there, the board has a pin header at the upper right hand edge of the board to enable “LN2 Mode” and once the correct pins are closed the LN2 mode is engaged and special tweaks and settings are available. As always, exercise caution when pushing the limits or enabling this as you would likely not want to do it with standard cooling due to the fact that many protections and voltage points are changed to be more aligned with subzero cooling.



Click Image To Enlarge

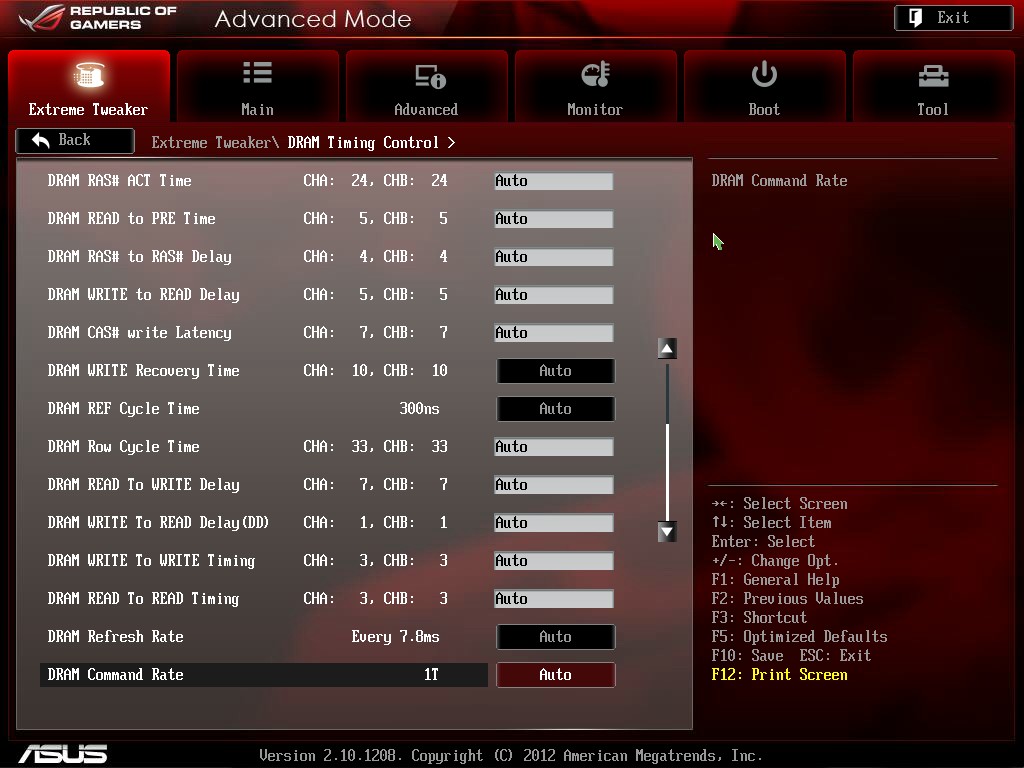

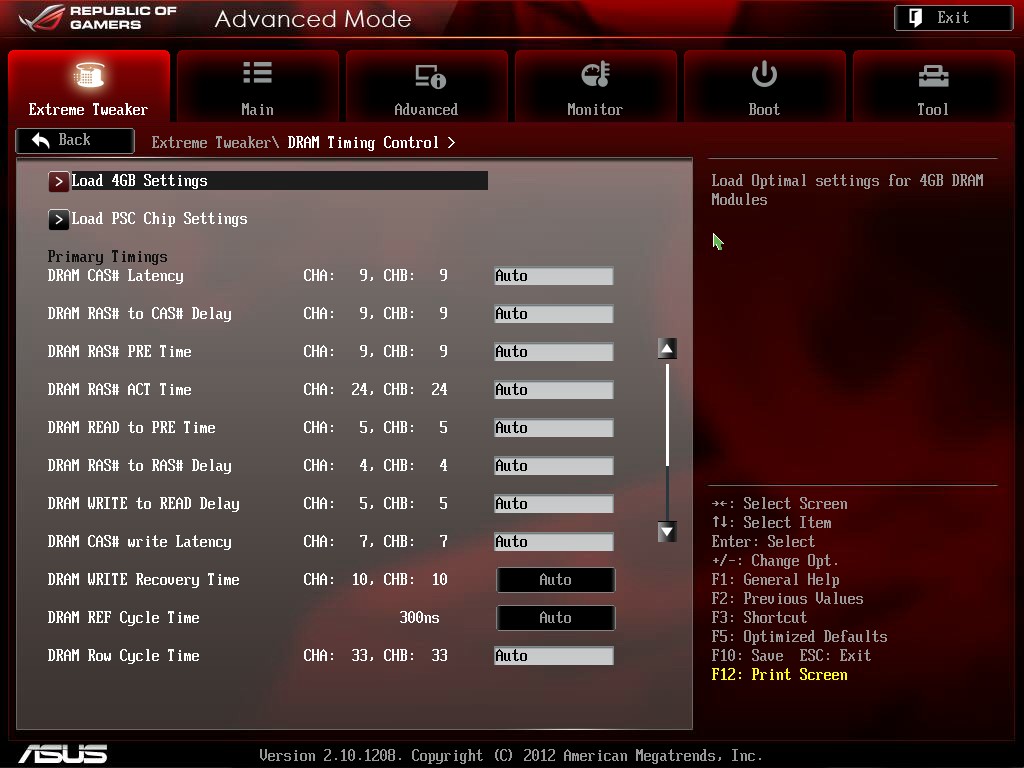

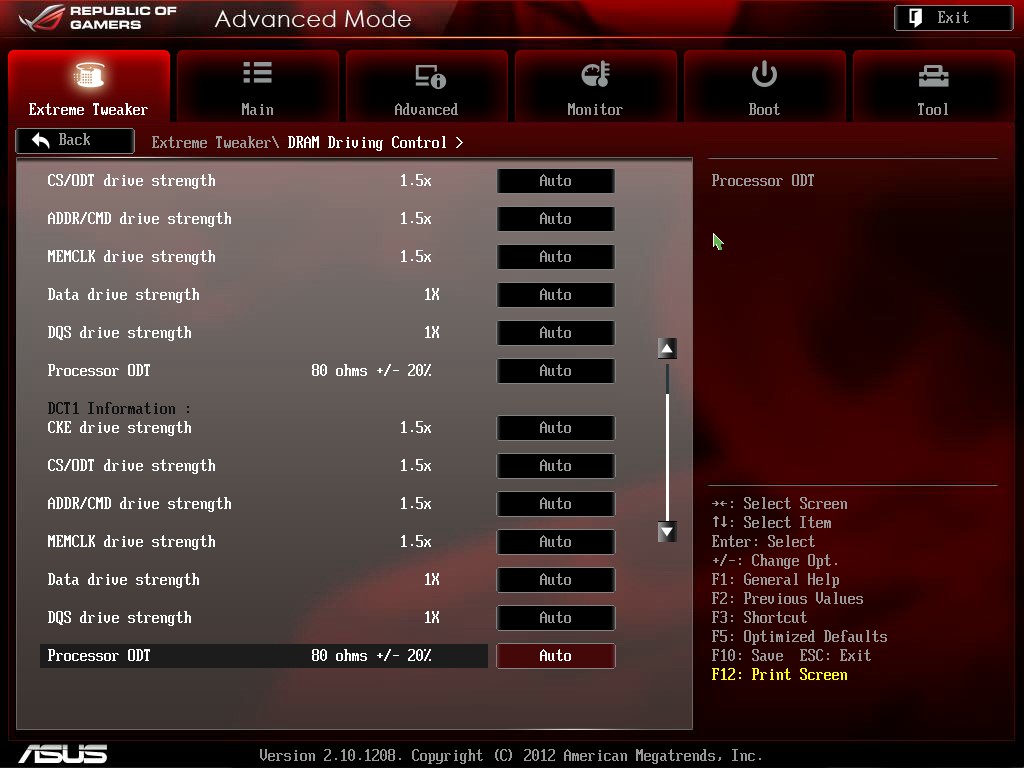

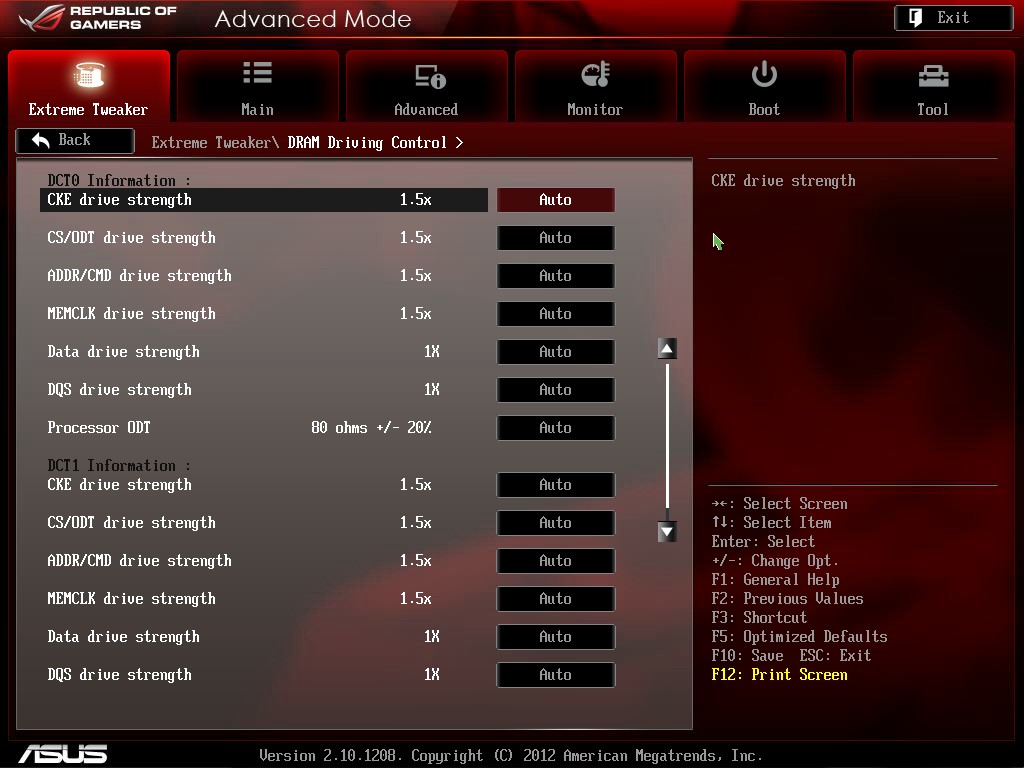

This board has some indepth memory clocking and tuning options with a couple presets should you come across using a PSC set or even a preset for 4GB DIMMS which has specific settings for these slightly higher density DIMMS





Click Image To Enlarge

Here we have the GPU/DIMM post screen which we have talked about endlessly as to how helpful it has been previously.  We had memory not showing up in the OS, this tool was extremely useful in diagnostics. None of our other methods worked, but when we entered this screen, we instantly we saw that all DIMMs were detected but one was reading as “Abnormal”, at which point we powered off and reseated that stick and all was well. This also definitely helps when running subzero and losing a memory stick detection (turned out a little too much vaseline in the DIMM slot cause it not to make adequate contact)



Click Image To Enlarge

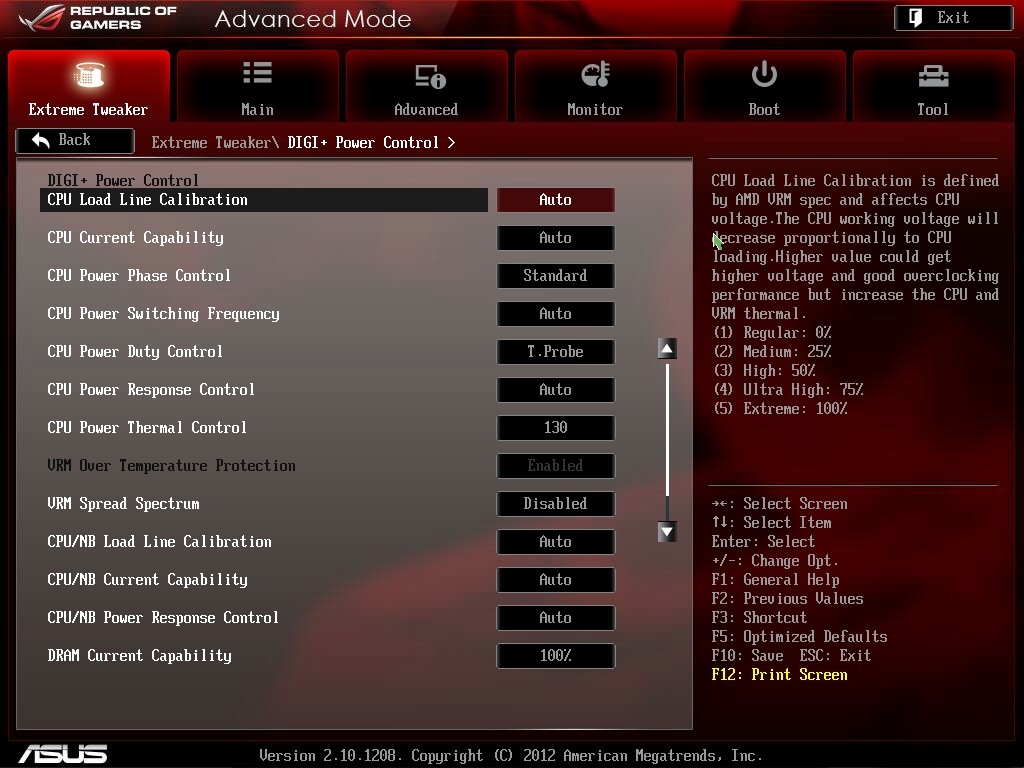

Here we have the DIGI+ screen which is another important one as it can really open up the throttle on your overclocking efforts by extending power limits well beyond stock values where otherwise the limits would stop you from seeing the platforms full potential. This is also where you can adjust the performance of each of the Digital PWM components that are found in the DIGI+ implementation. Once again  here setting extreme values while it may allow more overclocking headroom do keep in mind that you are opening the door to more thermal dump and higher temps so be sure not to just crank everything up for no reason unless your going cold.



Click Image To Enlarge

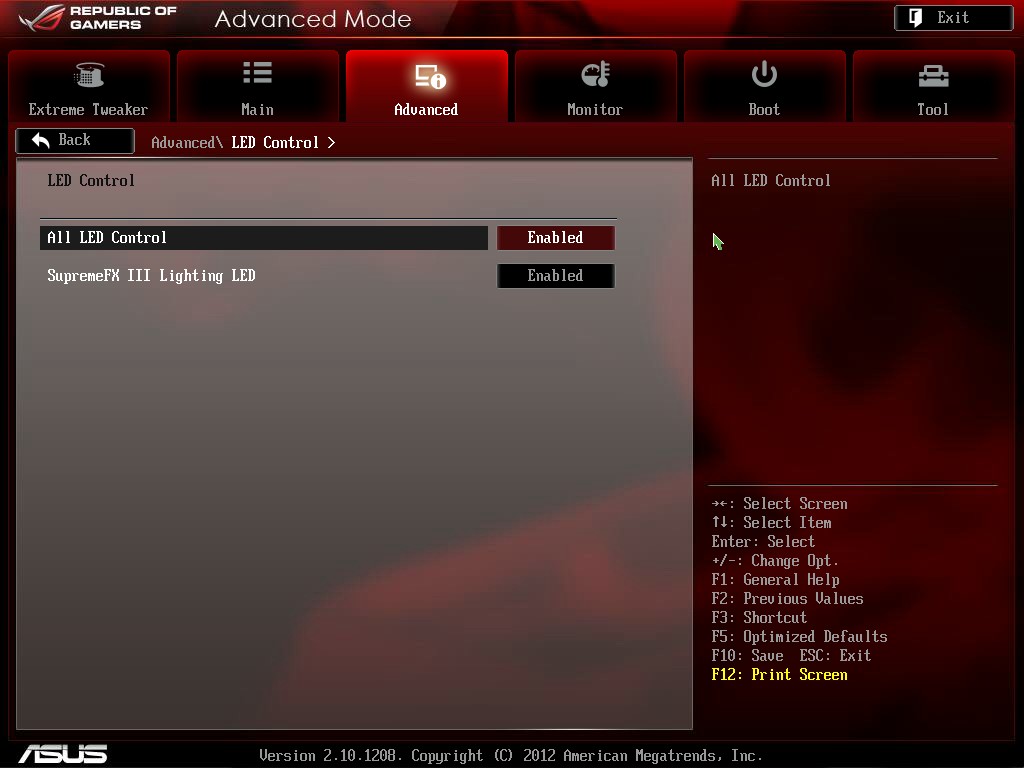

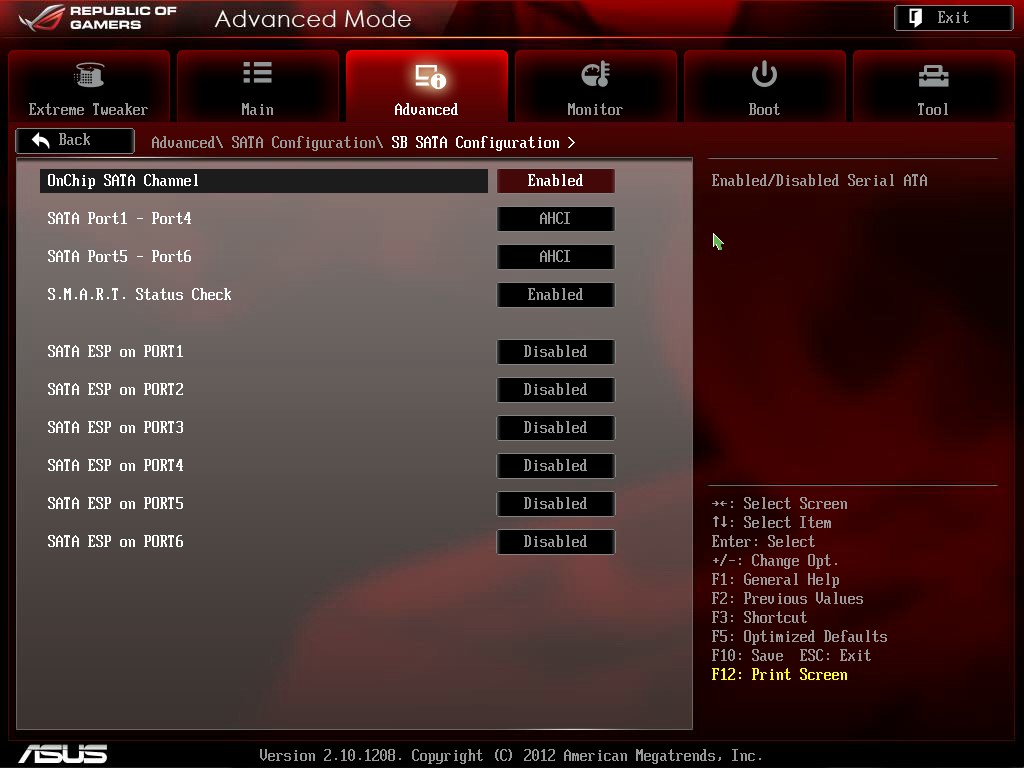

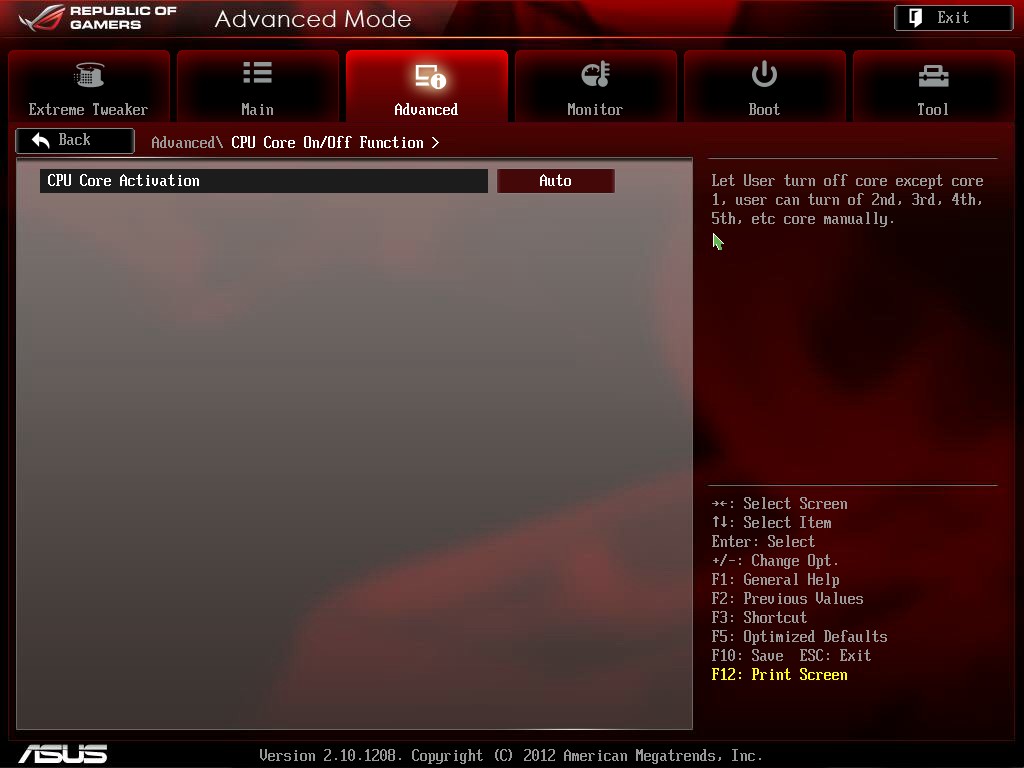

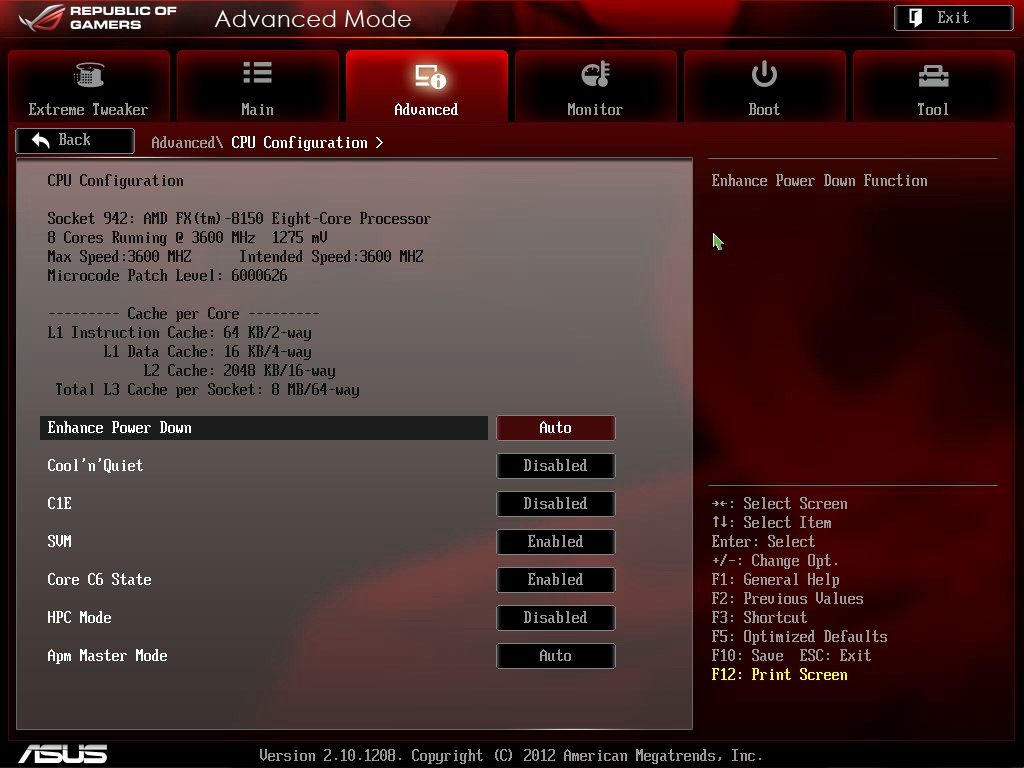

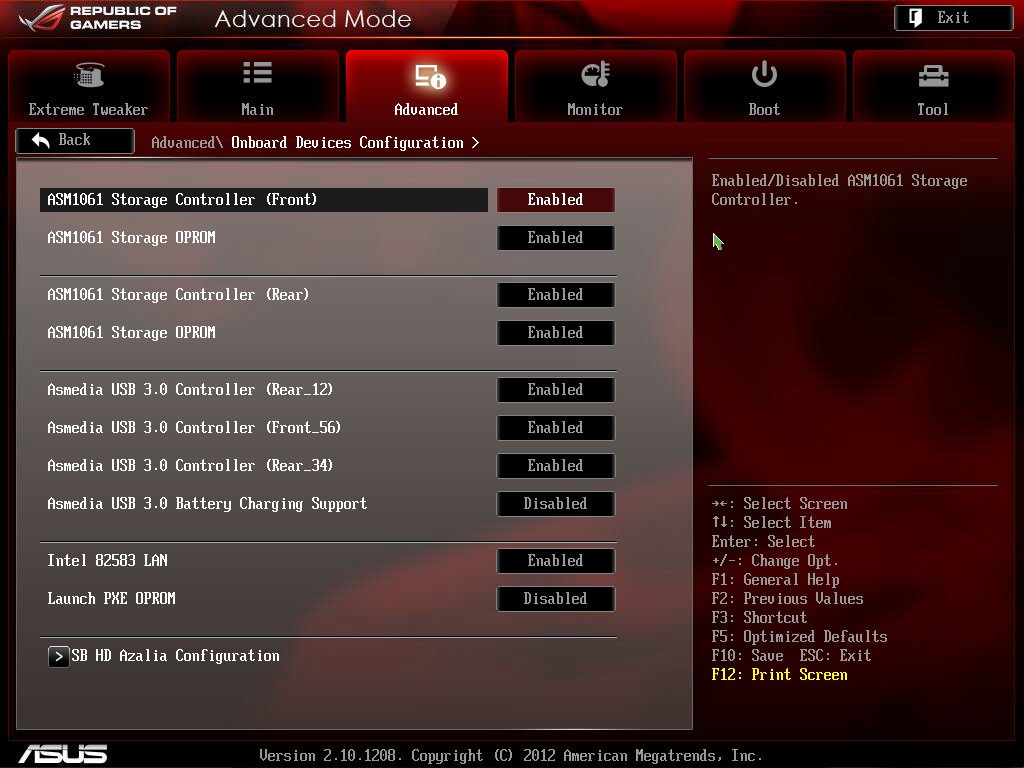

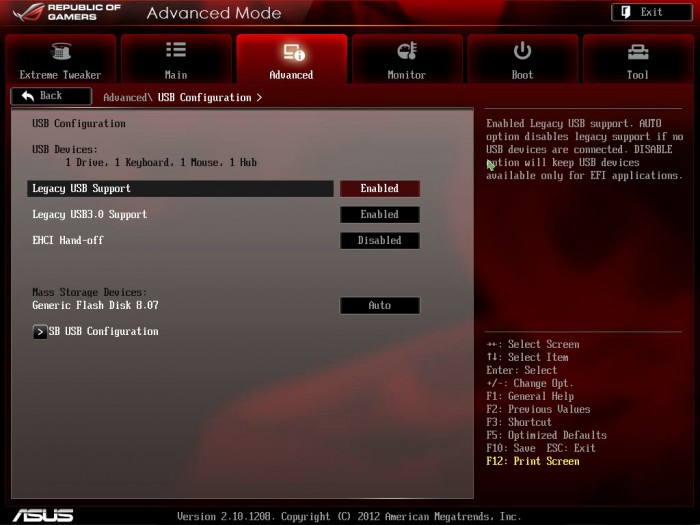

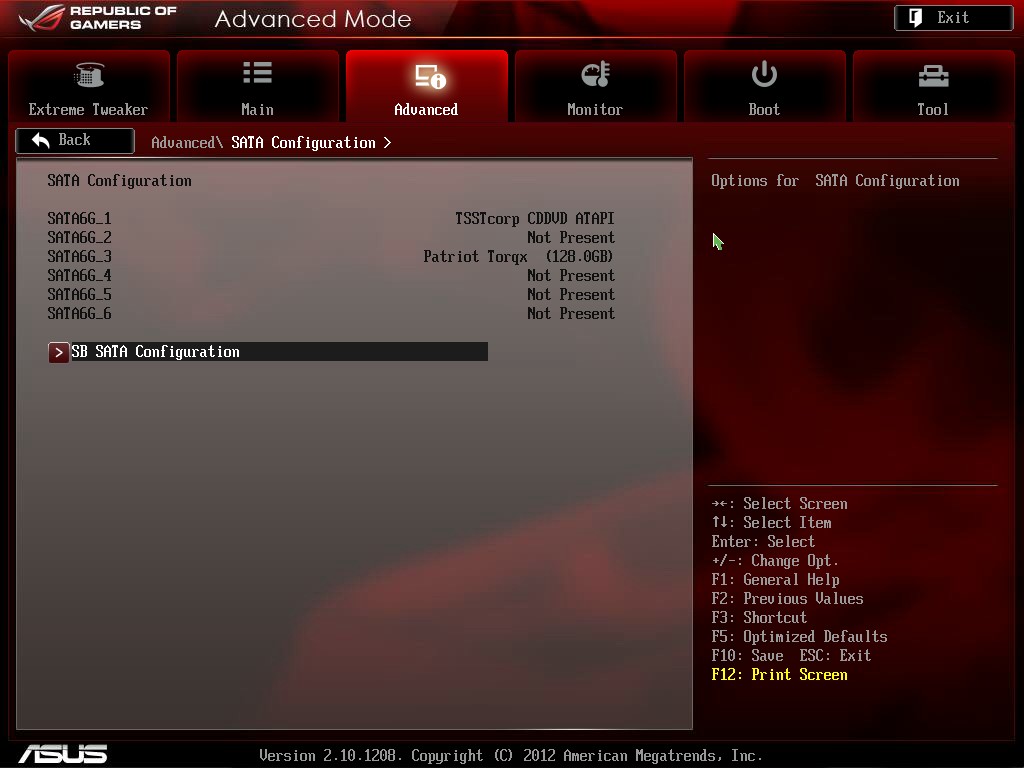

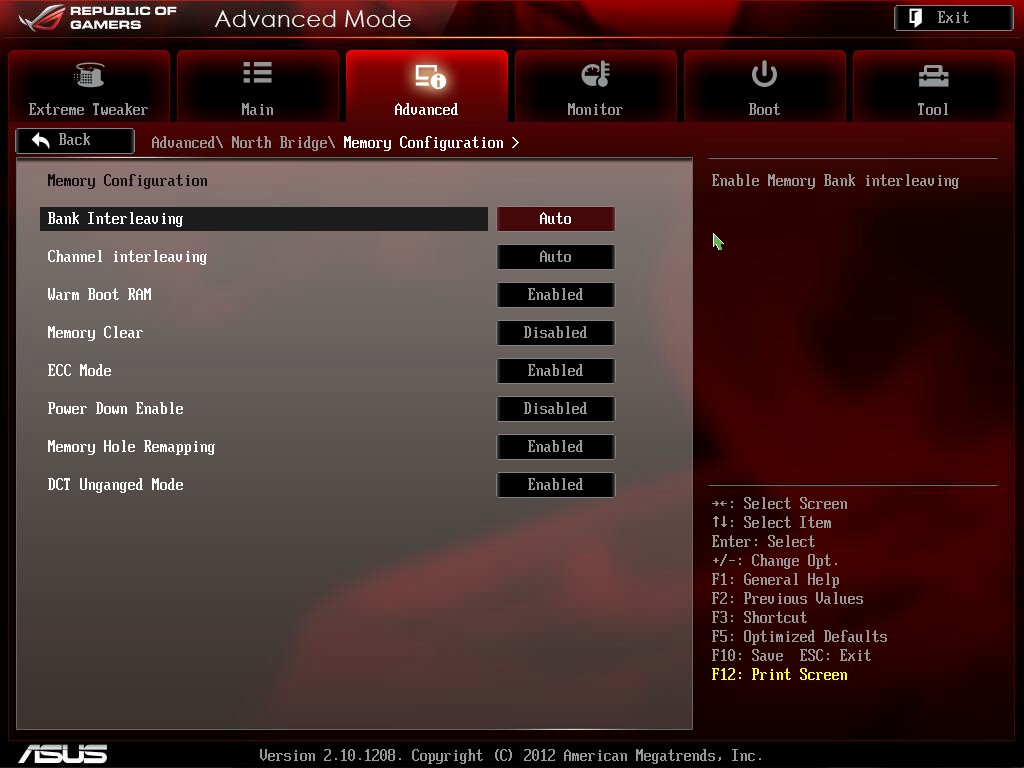

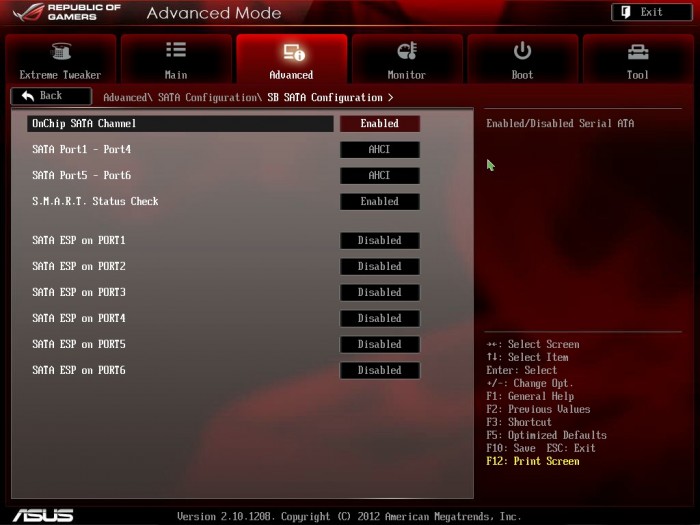

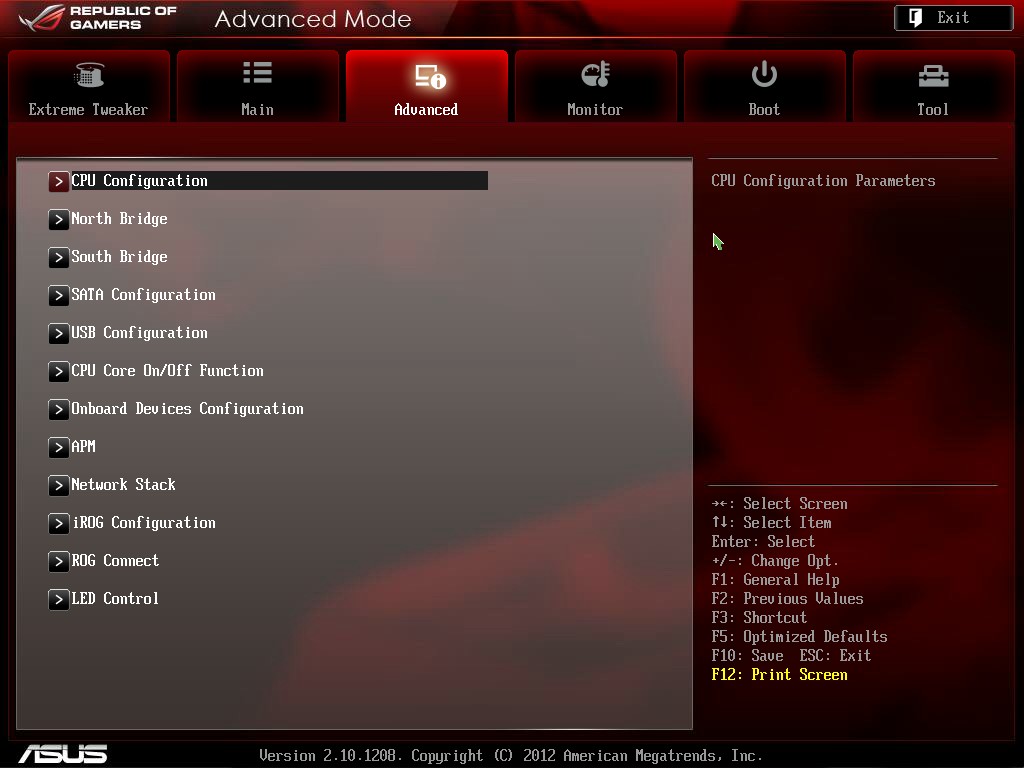

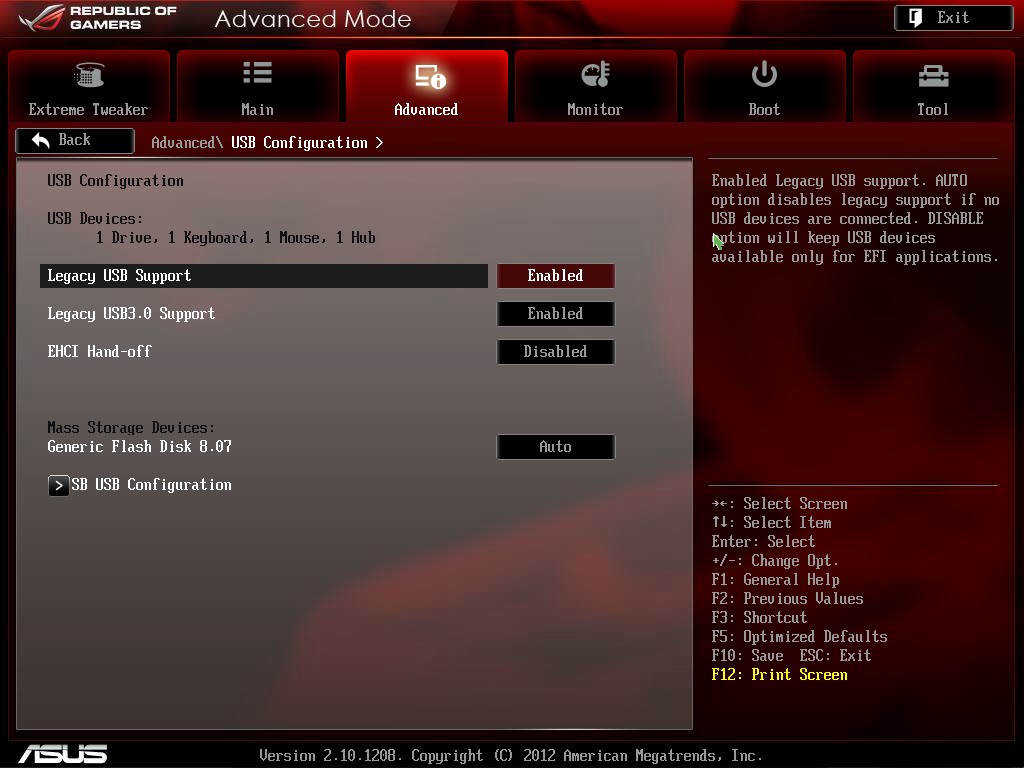

Here we have some of the advanced board features including many settings such as CPU feature settings. Also seen in this area will be SATA settings and many others to adjust how the components operate on the board. This is all fairly standard stuff you will see on most boards so we put up a few shots just to show the general more important options and their layout.



Click Image To Enlarge

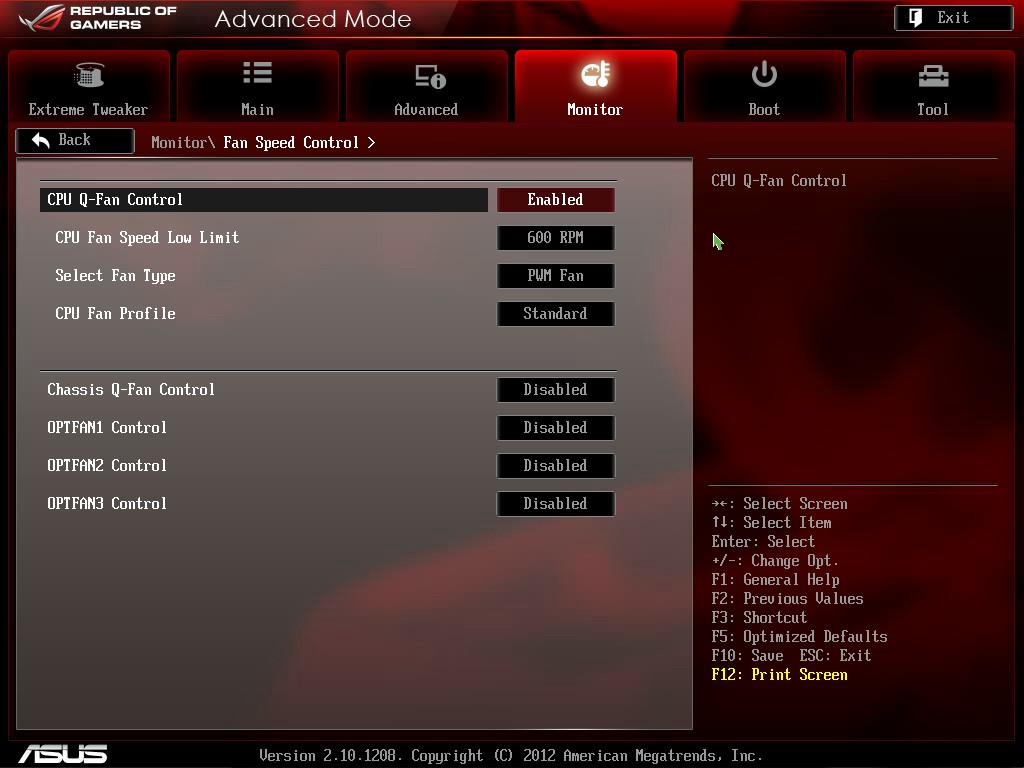

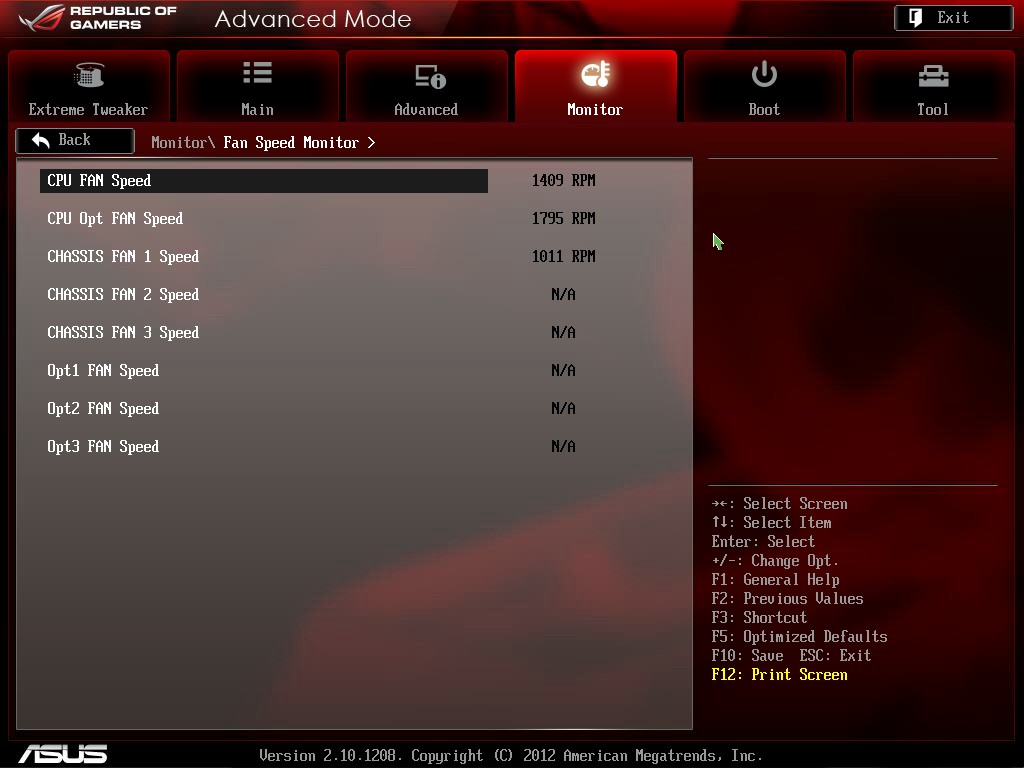

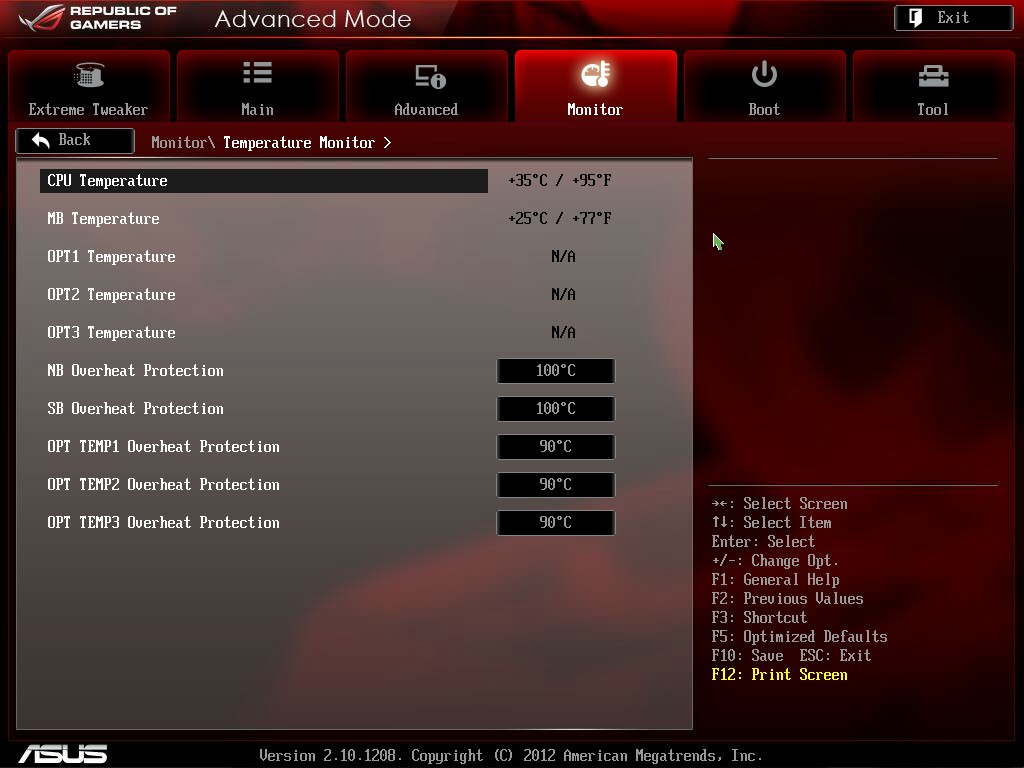

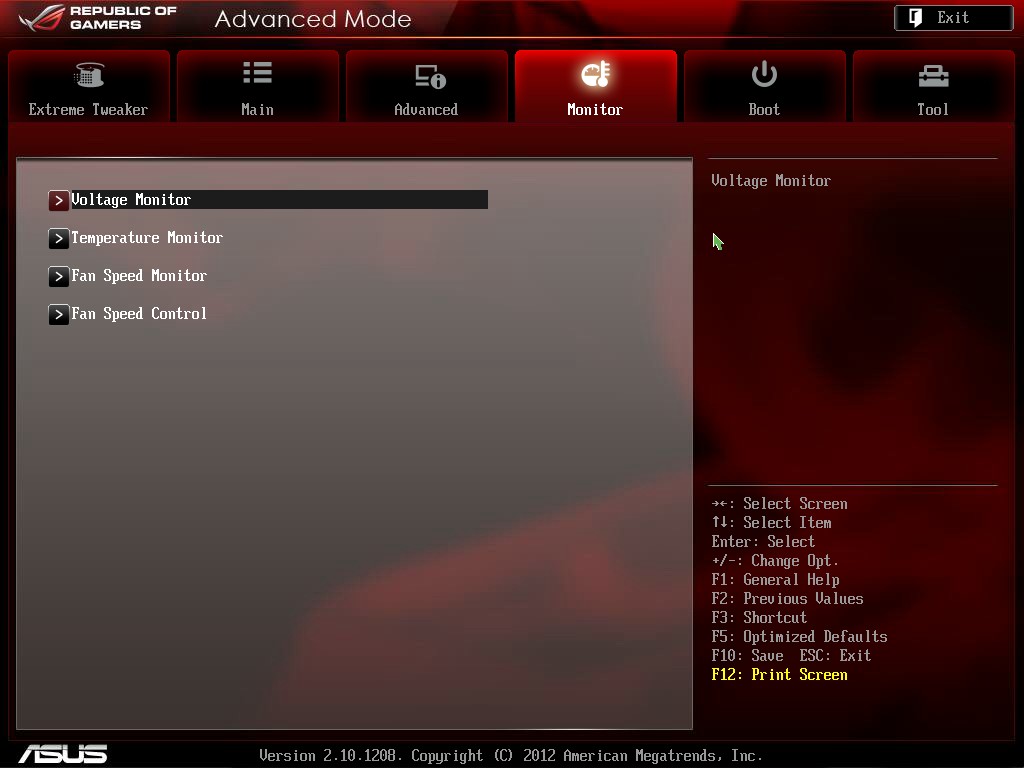

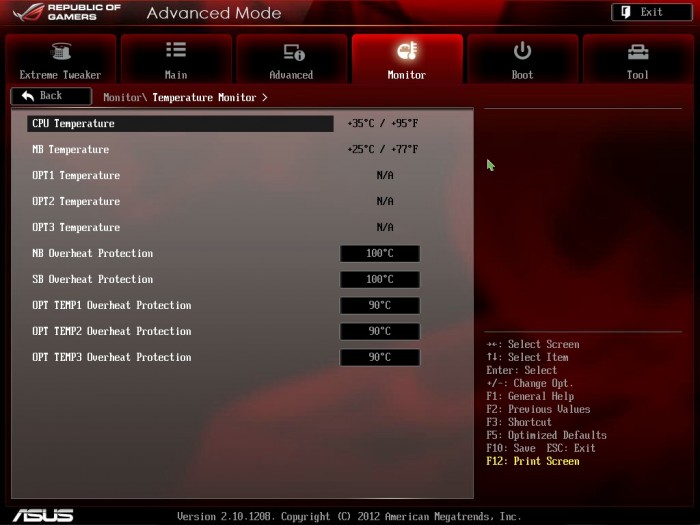

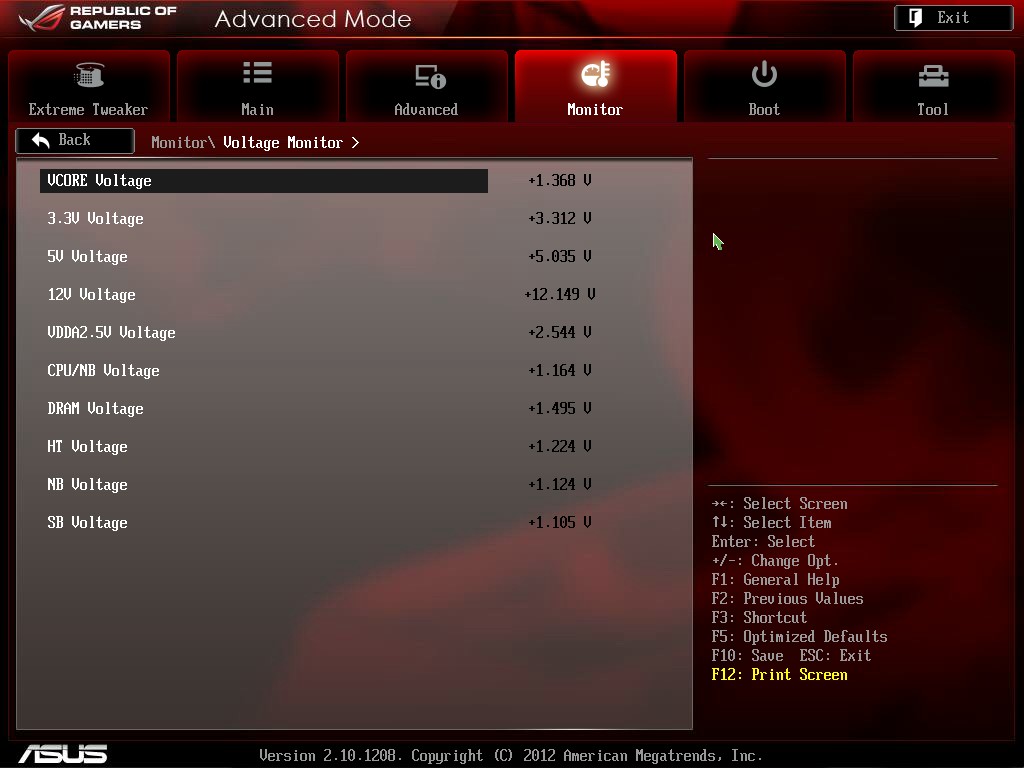

The monitoring area allows for multiple options from monitoring voltage, to temperatures and even fan speeds. With the inclusion of the Fan Xpert II Software the cooling fan performance is now at a whole new level so adjusting in the BIOS will be a thing of the past.



Click Image To Enlarge

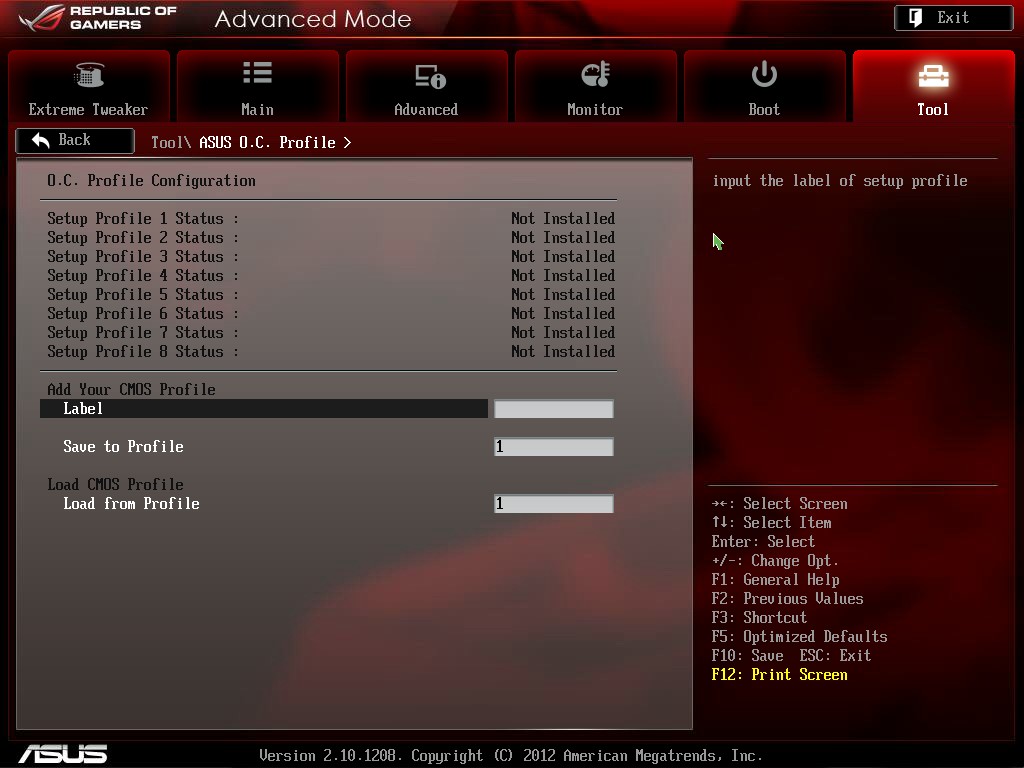

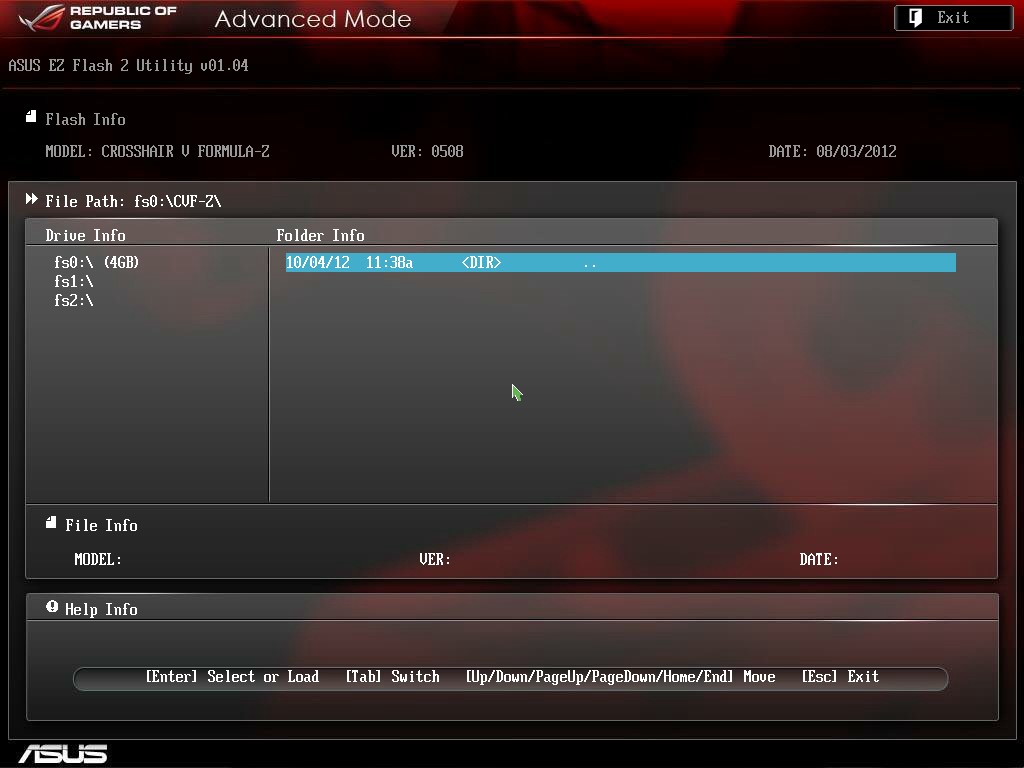

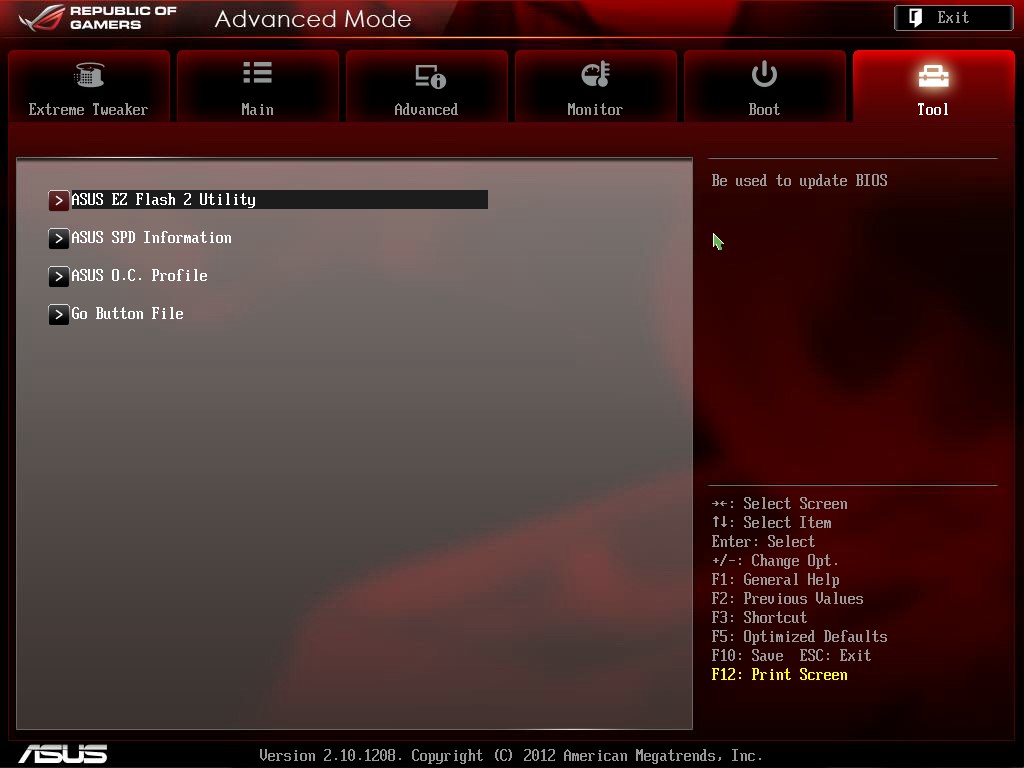

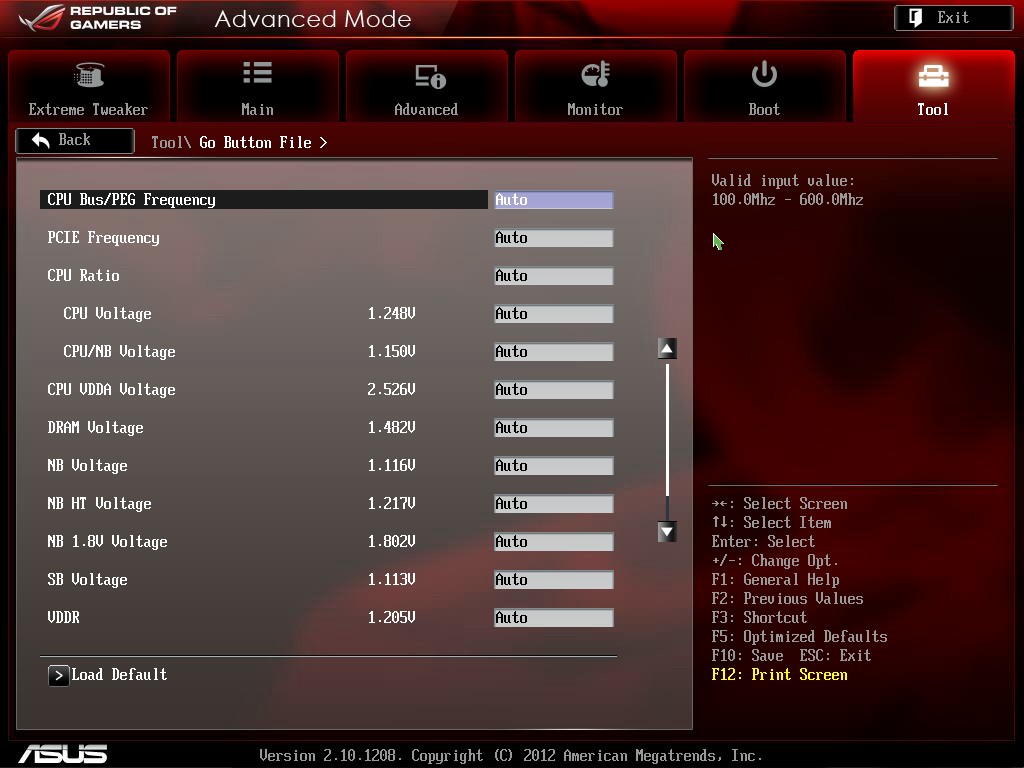

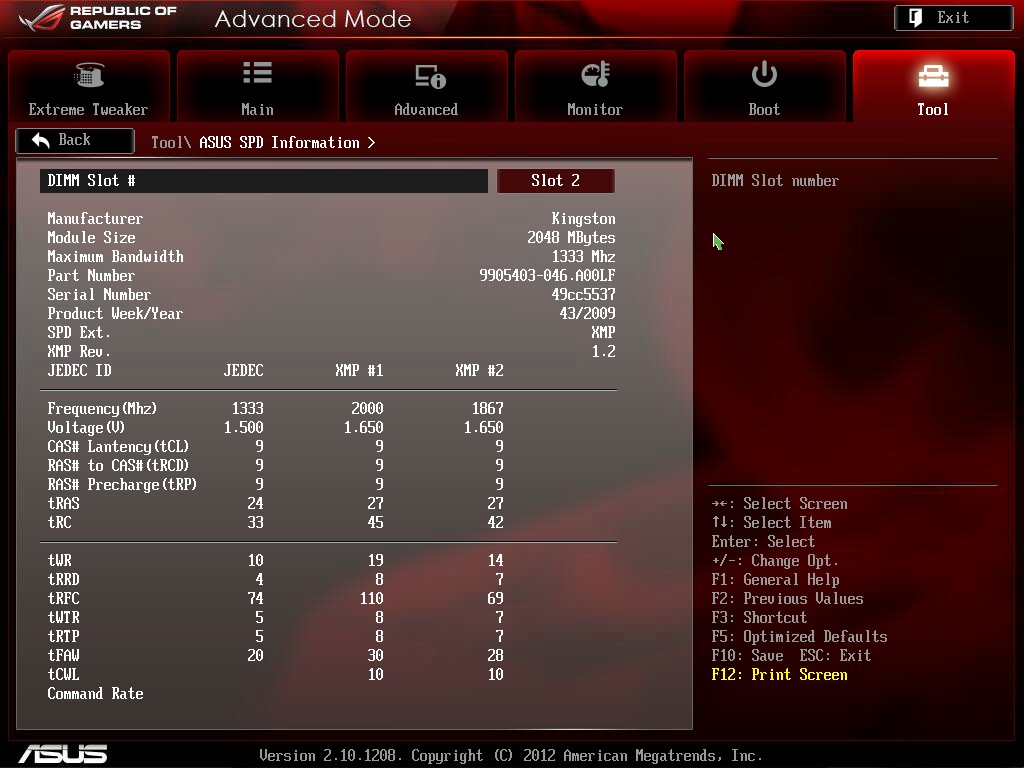

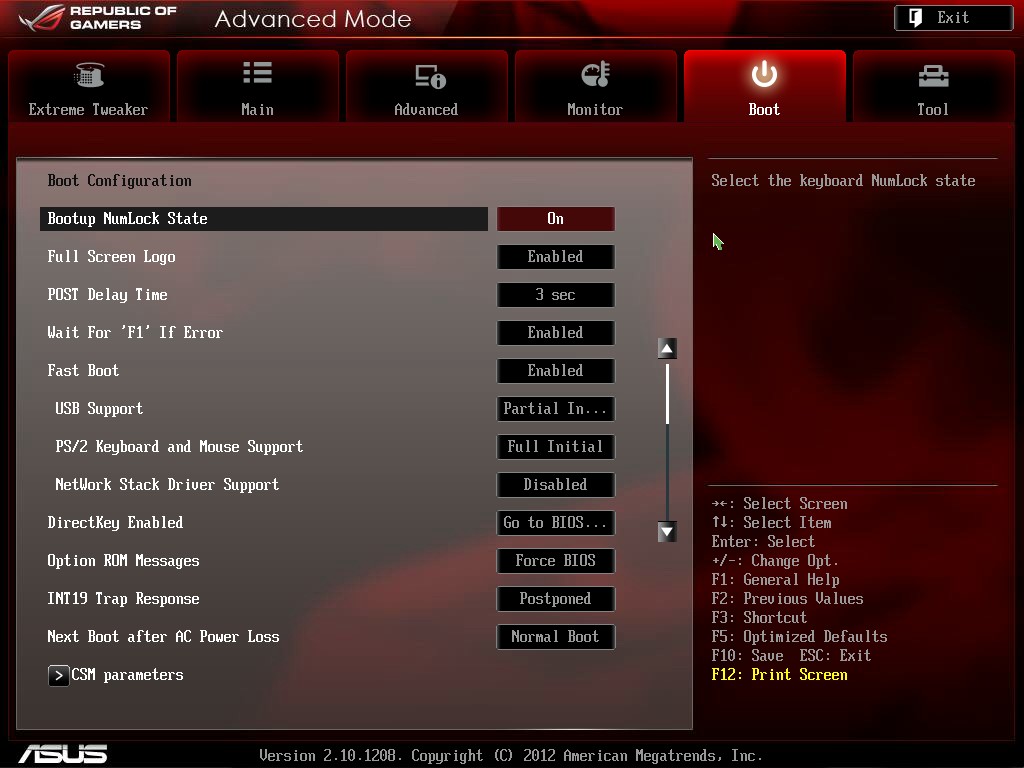

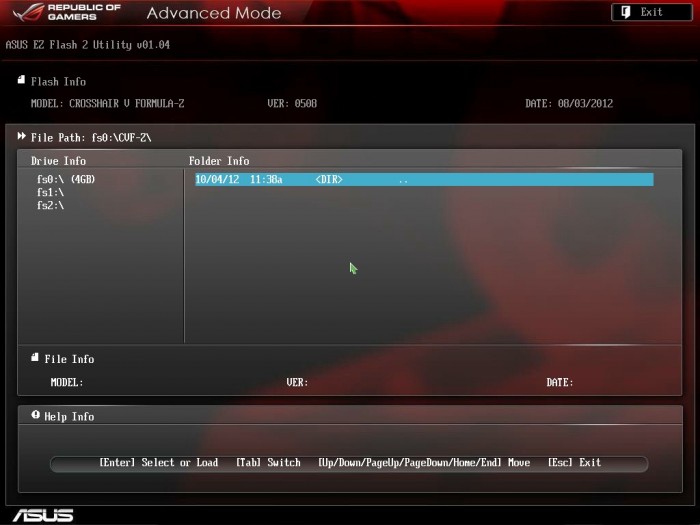

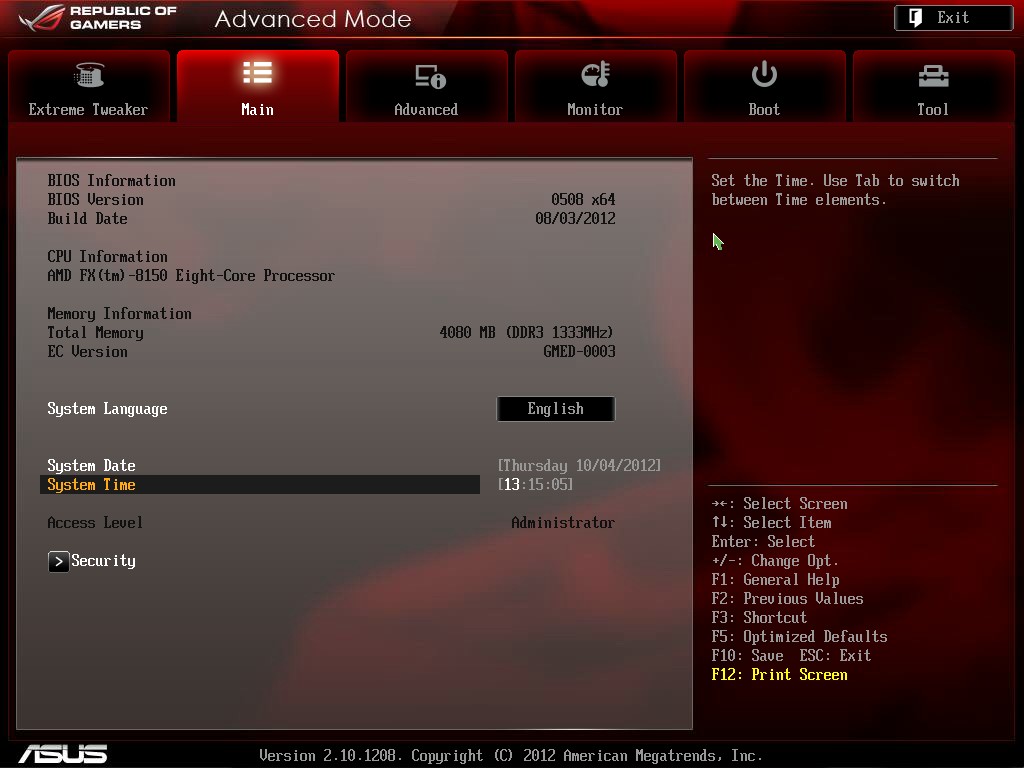

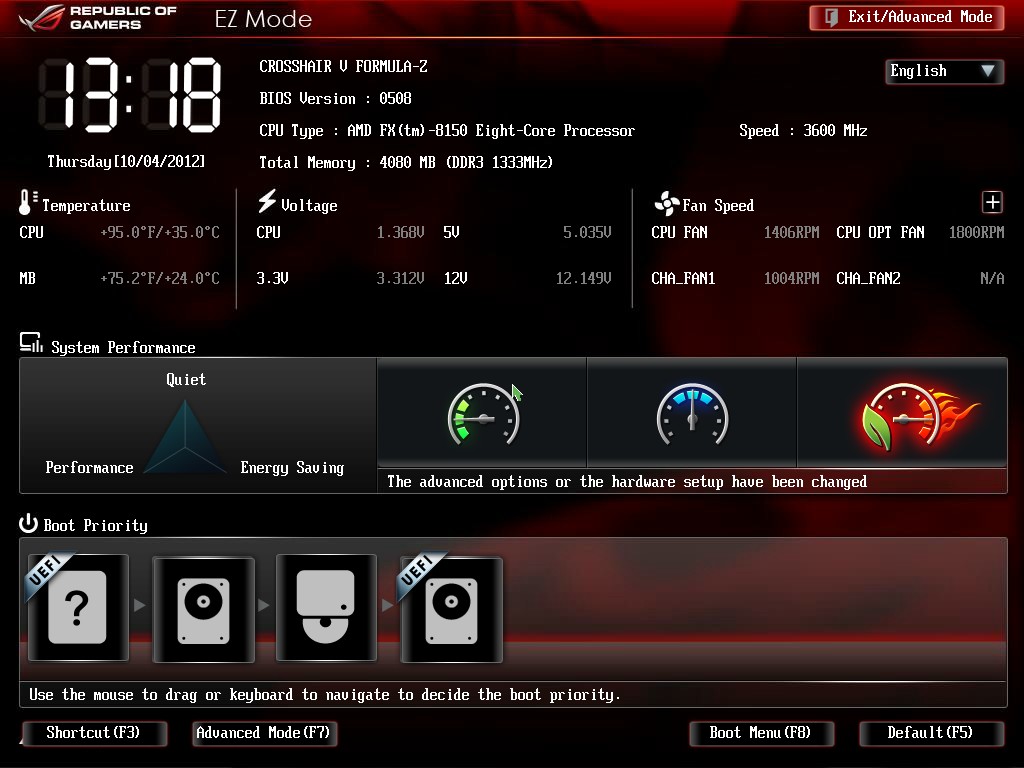

The rest of the settings are just basic boot setup and BIOS flashing tools which all are standard fare for motherboards. Lastly we have the tools which of course include the EZ Flash 2 utility, memory SPD reader and even clock profiles to allow you to save your favorite overclock settings. And lastly the EZmode bios which is a primarily GUI interface where a few clicks easily can do some basic setup in the UEFI.
