SilverStone Silver Strider 750 Watt PSU V2.0 (ST75F-GS), Mighty Mini!

The SilverStone Silver Strider 750 Watt PSU is the smallest full modular ATX power supply on the market. From the back of your chassis to the front of the Silver Strider 750 it’s a mere 140mm making it the mightiest Mini sized PSU available. Struggling with a smaller chassis but need killer voltage regulation for your dream builds components , look no farther SilverStone, one of the premier PSU manufacturers in the world, has you covered front to back (at least 140mm’s worth). The previous generation (Version 1.0) was 150mm in depth and quite the mighty Mini in itself but SilverStone had to one up themselves and go for a 140mm Version 2.0.
Having reviewed Computer Components for a decade now I’ve seen, and written about, advancements I never thought I would see. I could only sit and wonder why my dream components didn’t exist yet. Once in a while dream components do pop up and a few years back one did. On September 30th 2009 Nvidia announced the power-hungry GTX-480 in a whitepaper release, shortly later they released GTX-480’s to review sites along with a SilverStone 1500 Watt PSU. My SilverStone 1500 Watt power supply from 6 years ago is still running strong and since then many SilverStone power supplies have crossed my work bench all of which provided the same reliable power and longevity of my first SilverStone that 1500W behemoth.

Fast forward to today’s more power conscious components and 1500W of thumping power on my test bench might be a tad overkill so I’m looking at a newer generation SilverStone Silver Strider 750W Power Supply (St75F-G5). Coming in at a slender 140mm depth this fully modular wonder is the smallest fully modular power supply on the market. Pushing the PSU Gold standard to the limit this size conscious power supply has an 80 Plus Gold Certification. As with all power supplies the power coming in has some loss usually in the form of heat and the higher the rating of your power supply the more efficient it is. The Gold Plus standard is as high as it gets meaning the SilverStone Silver Strider 750 Watt PSU is among most efficient in the world.

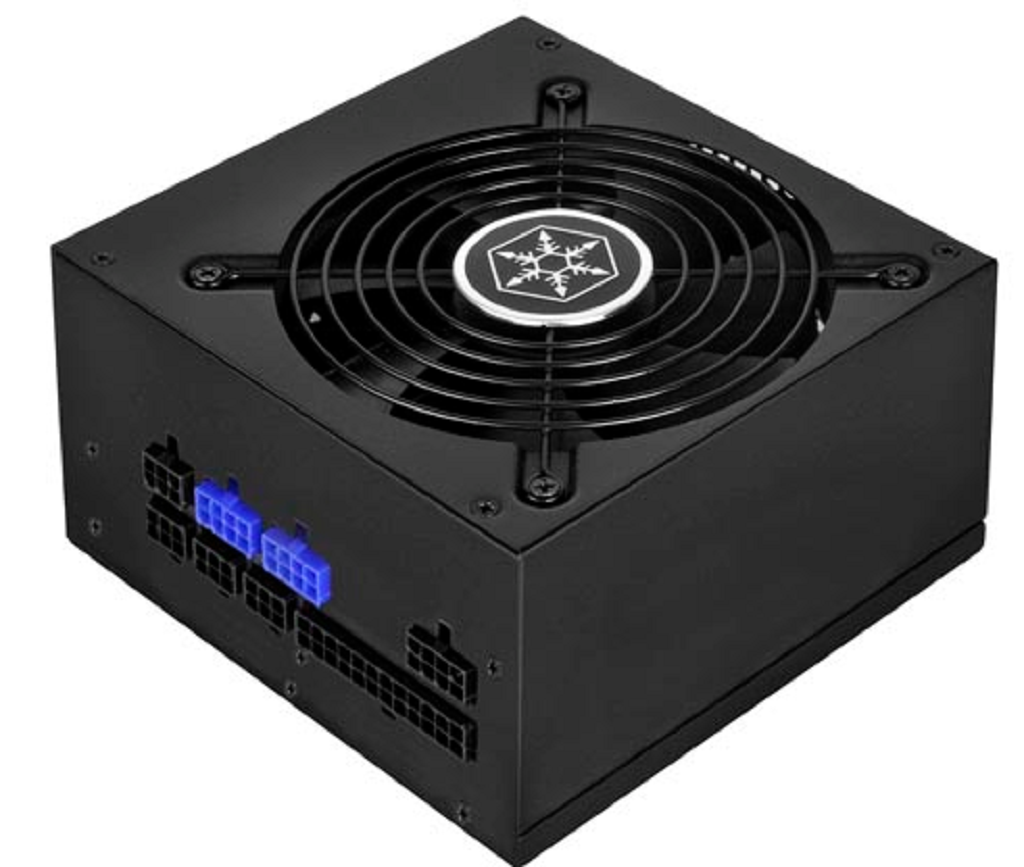

Silverstone_ST75F-GS_5



Designed with size in mind the SilverStone Silver Strider 750 Watt PSU is fully capable of running two single connector GPU’s and has four 12v Rail connectors branching off into 8 power connectors. Lets take a look at the menu of connectors this Mighty Mini provides.

  • 1 x 24 pin
  • 1 x 4/8 pin EPS / ATX 12 v
  • 4 x 6/8 pin PCIe
  • 8 x SATA
  • 6 x Molex
  • 2 x 4 pin Floppy

There should be plenty of power connectors for almost all end users, there will be a select few that need more but we would consider those the 5% high-end power users wanting 6 hard drives and multiple GPU setups. Most of us want good clean power for a single or dual GPU system with one or two hard drives and a power supply that’s quiet, stable and doesn’t take up half the chassis. One nice feature on the SilverStone Silver Strider 750 Watt PSU is the worlds first flat 24 Pin cable. There may be other 24 pin flat cables on the market now but they surely just copied SilverStones design because it was the first. One thing we look at as reviewers is innovation, does the vendor innovate successfully or just provide a run of the mill average product. No one will ever accuse SilverStone of being “Run of the mill”.

Model No.
SST-ST75F-GS
Max. DC Output
750W
                 Load Range




+3.3V +5V +12V +5VSB -12V
Max.(Amps)
22A 22A 62.5A 3.0A 0.3A
Min.(Amps)
0.5A 0.2A 0A 0A 0A
Range (%)
±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
combined +3.3, +5V
120W
combined +12V
750W
Input Voltage
90V~264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.(PF>0.95 at Full
Load)
Efficiency
87%~90% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection

Over current protectionOver power protection

Over voltage protection

Over Temperature Protection

Under voltage protection

Short circuit protection

Connectors
1 x 24 / 20-Pin motherboard
connector(550mm)1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)4x 8/6-Pin PCIE connector(”550mm / 150mm'”x2)8 x SATA connector(”600mm / 150mm / 150mm /150mm” x 2)6 x 4-Pin Peripheral connector(”600mm / 150mm / 150mm”x2)2 x 4-Pin Floppy connector(”600mm / 150mm / 150mm / 150mm”x2)
Color
Black (lead-free paint)
Cooling System
Single 120mm silent fan
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm
(D)
Weight
2.1 kg
Form factor
ATX
Certification
80 PLUS Gold
The SilverStone Silver Strider 750 Watt PSU is the smallest full modular ATX power supply on the market. From the back of your chassis to the front of the Silver Strider 750 it's a mere 140mm making it the mightiest Mini sized PSU available. Struggling with a smaller chassis but need killer voltage…

Review Overview

Performance - 9.5
Quality - 9.7
Features - 9.7
Innovation - 10
Value - 9.5

9.7

The SilverStone Strider Gold S 750 Watt PSU (ST75F-GS) shows superior performance, tight voltage regulation and the highest award of all, A spot on our Bjorn3D test bench. With a spot on our test bench the Srtider S series 750 Watt PSU will be driving some of the most expensive highest end hardware on the planet. There can be no higher award.

User Rating: Be the first one !
10

Check Also

Top

Kingston HyperX Savage 240GB SSD Review, Raw Savage Speed (SHSS3B7A/240G)

The HyperX Savage 240GB SSD is powered by a quad-core, 8-channel Phison S10 controller providing speeds up ...

2 comments

  1. Could you confirm the picture you have is correct, if I search for the part number you use in the uk I get this: http://www.amazon.co.uk/Silverstone-SST-ST75F-GS-Strider-Gold-Series/dp/B00GBJFXII/ref=sr_1_2?ie=UTF8&qid=1426549074&sr=8-2&keywords=SilverStone+ST75F-GS That PSU appears to have more modular slots.
    Thankyou
