Gigabyte X99-UD4P

Introduction

When it comes time for us to upgrade our computer, one of the first things we need to ask ourselves is what are we going to be using our computer for? Am I going to be playing games, uploading videos to my favorite video-sharing website, using it as an office computer, or doing a little bit of everything? These days we can build our computers around a very specific job type or task it will be performing. But no matter what we are going to use our computer for, it will have to be fast enough to do our tasks effortlessly.

One of the main components that every computer is required to have is the motherboard. A motherboard acts a main platform on which our other peripherals get plugged into. That includes everything from CPUs to video cards and everything in between. The motherboard needs to have the capabilities of being expanded upon, handle some of the most up-to-date hardware, and not act as a hindrance to our growing computing needs. We over here at Bjorn3D are going to be looking at one of many different offerings of computer motherboards. The motherboard we are going to be looking at more closely is Gigabyte’s Ultra Durable X99-UD4P.

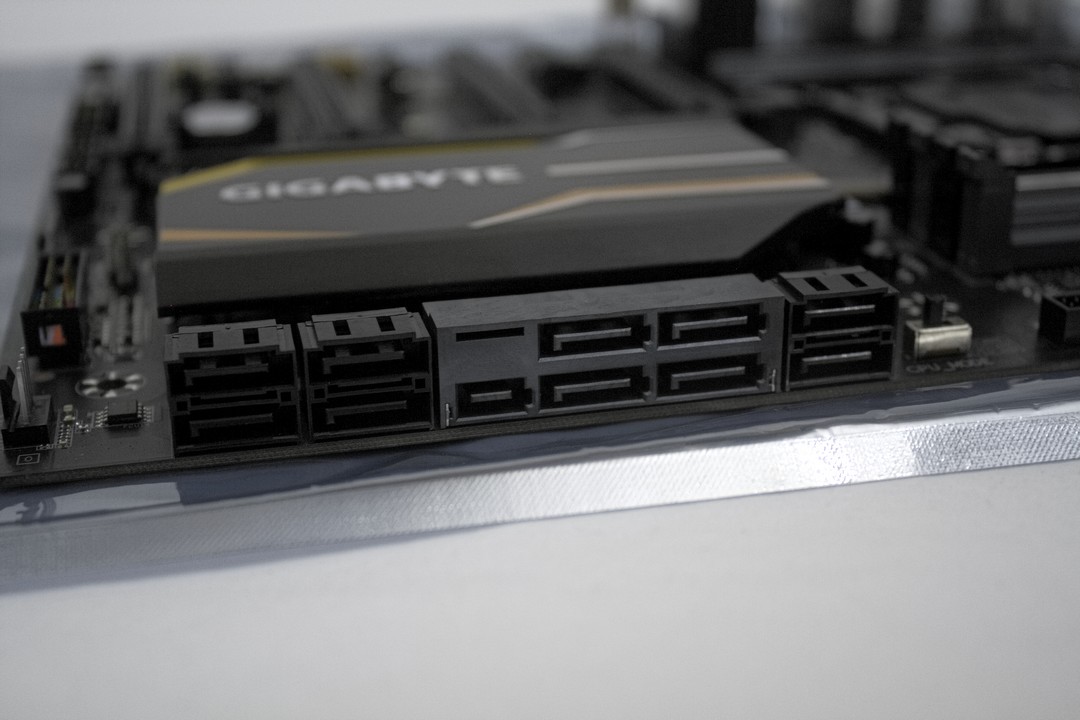

X99_UD4P13

Specifications

CPU
  • Support for Intel® Core™ i7 processors in the LGA2011-3 package
  • L3 cache varies with CPU
  • (Please refer “CPU Support List” for more information.)
Chipset Intel® X99 Express Chipset
Memory
  • 8 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  • 4 channel memory architecture
  • Support for DDR4 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • Support for RDIMM 1Rx8 memory modules (operate in non-ECC mode)

(Please refer “Memory Support List” for more information.)

Audio
  • Realtek® ALC1150 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LAN Intel® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
  • 2 x PCI Express x16 slots, running at x16 (PCIE_1, PCIE_2)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.
  • 2 x PCI Express x16 slots, running at x8 (PCIE_3, PCIE_4)
    * The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode.
    * When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode.
    (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
  • 3 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Multi-Graphics Technology
  • Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology
    * The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to “1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration.”
Storage Interface Chipset:

  • 1 x M.2 PCIe connector
    (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x2/x1 SSD support)
  • 1 x SATA Express connector
  • 6 x SATA 6Gb/s connectors (SATA3 0~5)
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.
    (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)

Chipset:

    • 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only

(An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.)

USB Chipset:

  • 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Chipset + Renesas® uPD720210 USB 3.0 Hub:

  • 4 x USB 3.0/2.0 ports on the back panel
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x PCIe power connector
  • 1 x I/O shield audio LED power connector
  • 1 x heatsink LED power connector
  • 1 x M.2 Socket 3 connector
  • 1 x SATA Express connector
  • 10 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 1 x water cooling fan header (CPU_OPT)
  • 3 x system fan headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.0/2.0 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header
  • 1 x Thunderbolt add-in card connector
  • 1 x Clear CMOS jumper
Back Panel Connectors
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 6 x USB 3.0/2.0 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
  • 2 x Wi-Fi antenna connector holes
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • System voltage detection
  • CPU/System/Chipset temperature detection
  • CPU/CPU OPT/System fan speed detection
  • CPU/System/Chipset overheating warning
  • CPU/CPU OPT/System fan fail warning
  • CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  • 2 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS™
  • Support for Q-Flash Plus
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    EZ Setup
    Fast Boot
    Cloud Station
    ON/OFF Charge
    Smart TimeLock
    Smart Recovery 2
    System Information Viewer
    USB Blocker
    V-Tuner
  • Support for Q-Flash
  • Support for Smart Switch
  • Support for Xpress Install
Bundle Software
  • Norton® Internet Security (OEM version)
  • Intel® Smart Response Technology
  • cFosSpeed
Operating System Support for Windows 8.1/8/7
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Remark
  • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
  • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
