Asus Maximus VIII Hero, Z170, Skylakes Hero!

Asus Maximus VIII Hero (Z170 Chipset)

The Asus Z107 Hero VIII was the initial launch board we received to review the Intel Core i7 6700 and we would like to thank our partners at Asus for the Hero VIII and their support during the Skylake 6700K Launch. Without their guidance and timely updates Skylake might have been SkyPuddle but they came through like gangbusters. The Asus Hero VIII is one of the first ROG boards ready for SkyLake and considering the timeframe Asus had to work with they put out an impressive board.

OLYMPUS DIGITAL CAMERA

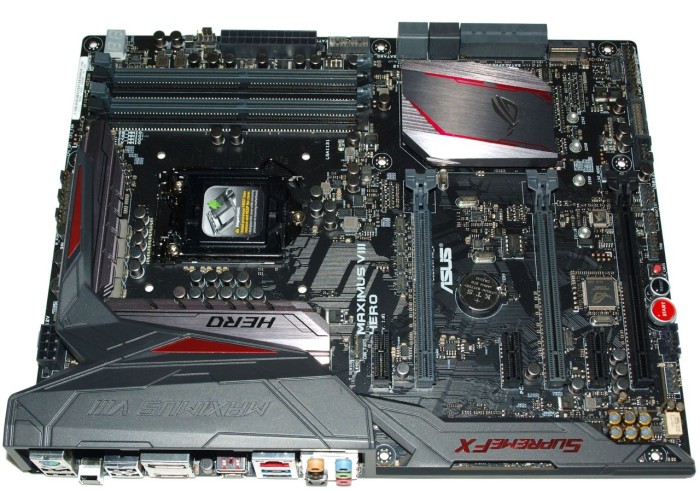

Most noticeably the Asus Maximus Hero VIII doesn’t support the same color scheme we’ve seen on other Maximus ROG boards. It has a few hints of Red a little chrome flash and compared to previous generations of Maximus boards is rather muted. The Hero VIII will support a pair of Video cards, supports USB 3.1. an M.2 drive and is feature rich enough that we can tell Asus is aiming the Hero at mid-level to enthusiast end users. the board can be found for 235$ from Amazon at the time of writing.



OLYMPUS DIGITAL CAMERA

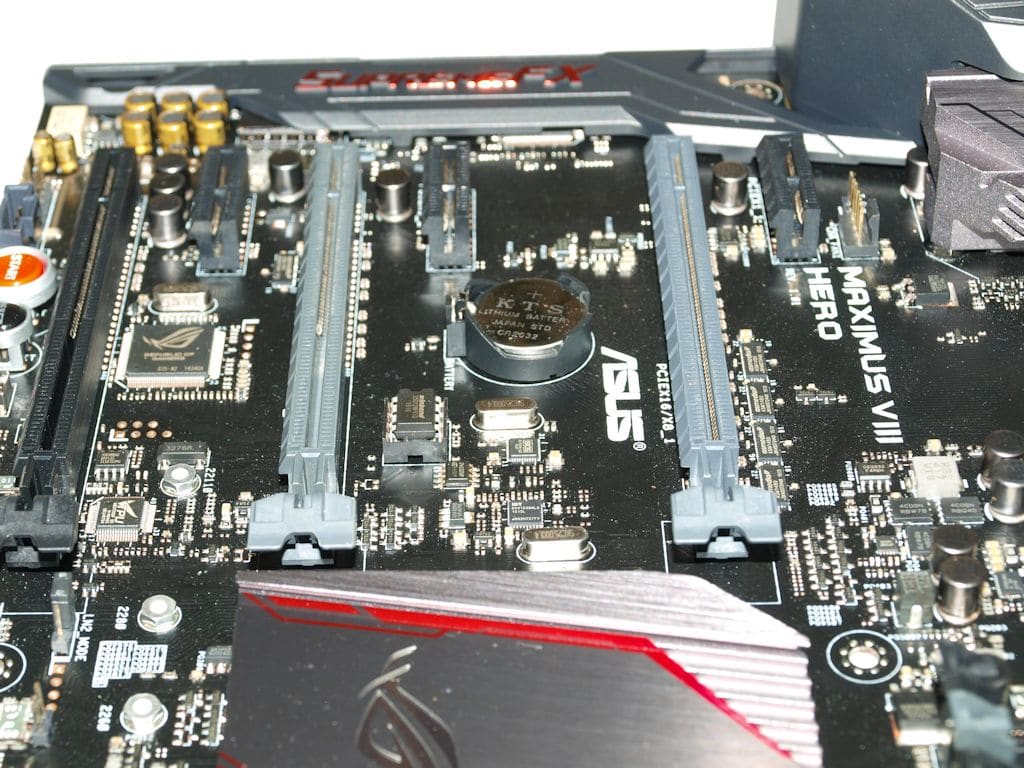

Most notably on Z107 and the Asus Z107 Hero VIII the first 16 PCI-E lanes are embedded in the CPU itself and are the Grey PCI-E 3.0 slots pictured above. Here’s the Specifications straight from the Asus Webby.

2 x PCIe 3.0/2.0 x16 (x16 or dual x8, +gray)
1 x PCIe 3.0/2.0 x16 (x4 mode, +black)
3 x PCIe 3.0/2.0 x1

What we are reading is that the two gray slots are a combined pool of 16 PCI-E 3.0 lanes that can run with one GPU at x16 or two GPU’s at 8x 8x, those stem from the CPU itself. Then we have 1 PCI-E 3.0 slot x16 in size but runs at x4 mode, that’s your black slot extreme let of the photo, then there’s 3x PCI-E 3.0 running at 1x. Of course Z107 is the mainstream platform but one GPU at 16x or two at 8x seems a little stingy to us. That is of course a decision made by Intel and Asus designed the architecture around that but you can bet we’ll be seeing boards with more PCI-E 3.0 slots provided by add-on chips. What that means for the Hero VIII is limited for SLI or Xfire and two top end cards might bottleneck on the 8x 8x it has to play with.

OLYMPUS DIGITAL CAMERA

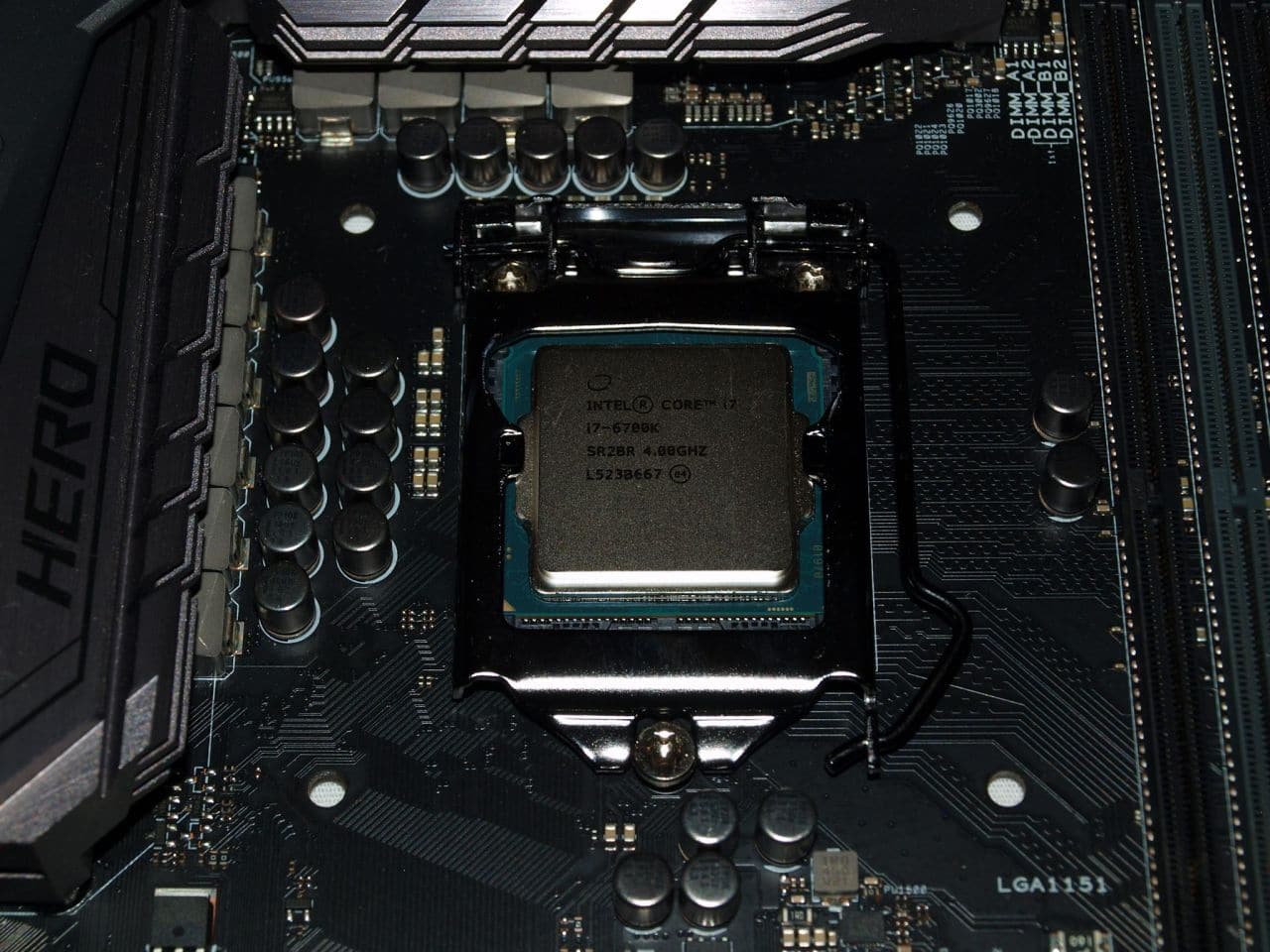

Shown with the yet elusive 6700K installed the Asus Hero VIII features 8 phase CPU power, Microfine alloy chokes and 16k long life solid capacitors. We won’t cast a spoiler yet but anyone thinking 8 phase power isn’t enough just go ahead and do a head slap now. The 8 phase power is plenty for the 92W TDP i7 6700K which is actually 3W less than it’s predecessor the i7 4790K.

OLYMPUS DIGITAL CAMERA

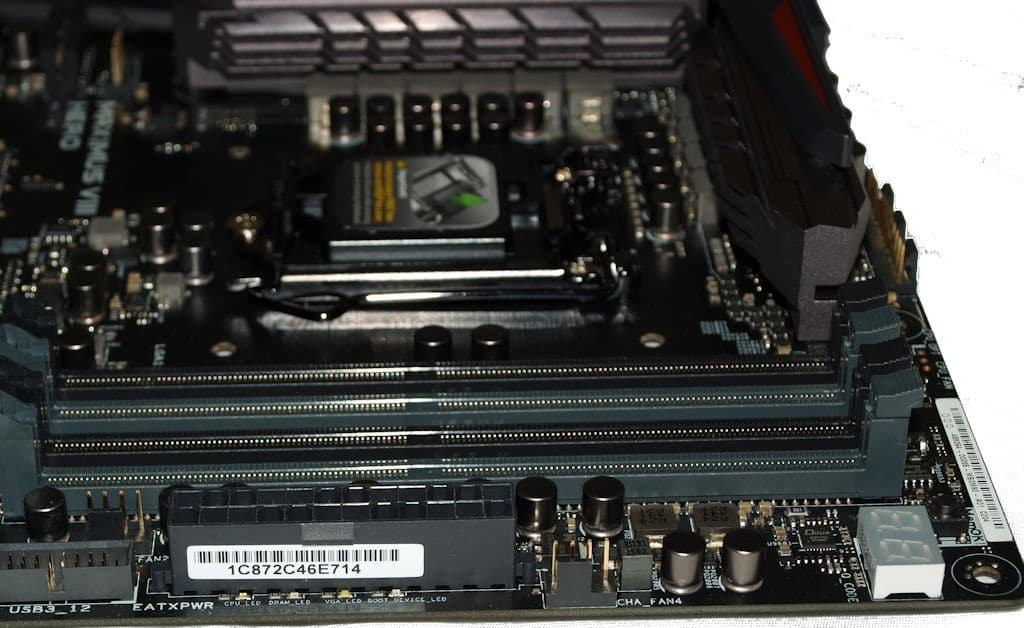

Skylake is a Dual Channel Ram creature and the boards we’ve seen so far present 4 ram slots and the maximum ram on Skylake is 64GB so if you are planning on the future you need to invest in 32GB Ram kits. The ram itself gets 2 phase power with  We’re looking at the front 24 pin Power connector edge of the board and you can see the double-digit debugger and Main power connector and to the left of that you get a peek at the USB 3 connector.

OLYMPUS DIGITAL CAMERA

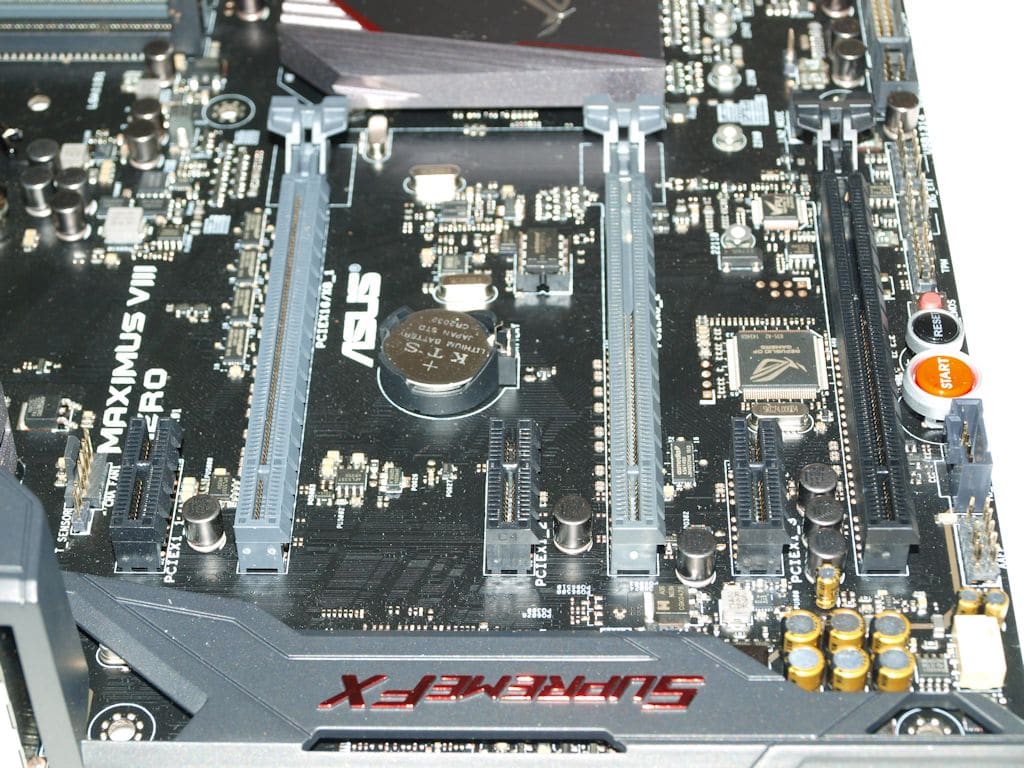

Sliding farther left by the last PCI-E 3.0 expansion slot you see the TPM connector the CLR CMOS button, reset and start buttons. ThunderBolt Header and the audio header as well as the Start, Reset and Clr Cmos buttons.

OLYMPUS DIGITAL CAMERA

Flipping the board around to the I/O port side you get a look at the fine Gold Capacitors used in the noise reduction circuitry for the Audio  The Audio on this board is quite stunning and includes:

  • ROG SupremeFX 2015 8Channel High Definition Audio CODEC
  • Supports : Jackdetection, Multistreaming, Front Panel Jackretasking
  • SupremeFX Shielding Technology
  • ESS® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ bit)
  • TI RC4580 2VRMS audio OP AMP(s)
  • Audio Feature :
  • Goldplated jacks
  • DTS Connect
  • Optical S/PDIF out port(s) at back panel
  • Sonic SenseAmp
  • Sonic Studio II
  • Sonic Radar II

It seemed like the X99 chipset always had the Al1150 Audio and it’s good to see that there is going to be a variety of audio on Z170. We’ve already seen the Asus SpremeFX 2015 and a setup by SoundBlaster so that’s a good indication of a wider variety of audio on Z170.

OLYMPUS DIGITAL CAMERA

The I/O Panel on the Asus Her0 VIII is a little disappointing to us, we realize that more ports mean a higher cost but with 4 USB 2.0, two USB 3.0 and two USB 3.1 we were just expecting more USB 3.0 ports and found ourselves having to swap devices to keep the one we needed on USB 3.0 fed with that all important bandwidth. Figure two connectors for the Black Widow Chroma (Pass through / Lighting and Keyboard), a mouse going to USB 2.0, a thumbDrive to record Images to on the fly, a Wi-Fi stick (No Wi-Fi on the Hero itself) and things were getting pretty crowded, Often times we need to connect an external USB 3.0 drive to install a benchmark so we were actively using 6 USB ports leaving one open but inaccessible due to a Belkin Wi-Fi stick. Granted if we had been in a chassis and not an open test bed we would have had a couple more but we expected more ports on the I/O considering the chipset supports 10 native USB 3.0,

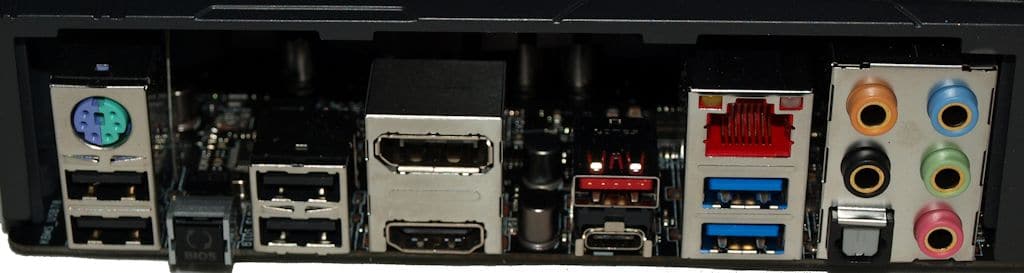

Starting on the left you have the Mouse / Keyboard PS2 so popular among extreme overclockers that run a stripped down OS to achieve higher speeds, Below that is two USB 2.0 ports (the lower port is the USB FlashBack), then to the left the USB BIOS Flashback button, then two more USB 2.0 ports. THe Z107 chipset and the HD 530 IGP support up to 3 monitors but the Hero provides a HDMI and a Display Port which is plenty for the IGP as it’s not for high-end gaming. To the left of the Video you have the two USB ports a Type-C and one Type-A. Moving left an Intel Ethernet port and below that two USB 3.0 and farthest right the gold-plated Audio Jack and the Optical sound port.

OLYMPUS DIGITAL CAMERA

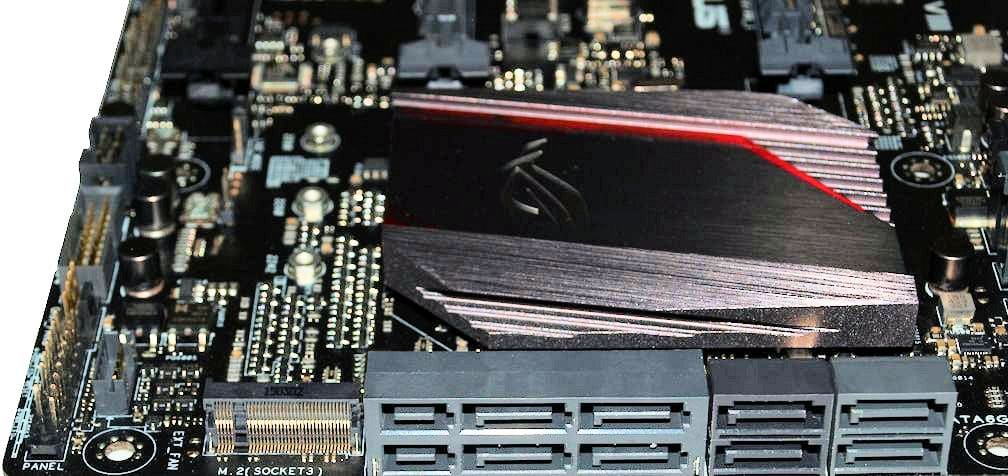

The z170 chipset provides 6 Sata ports and Asus adds two more using an ASMedia controller, four ports are invested in Sata Express and 4 ports Sata 6G then to the left of the ports you can see the M.2 SSd connector and thankfully on the Hero VIII it’s not situated right up under the PCI-E ports.

Audio

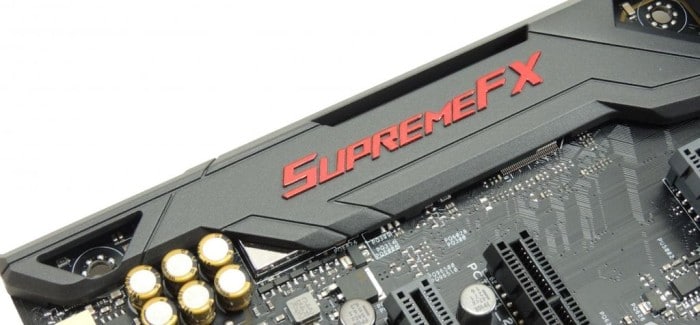

The SupremeFX sports Fine Gold Nichicon capacitors and is driven by a RealteK Codec hidden away under an EMI shield peeking out from under the plastic cowling. The whole setup utilizes an anti-popping relay that prevents audio popping during startup.

A_M2

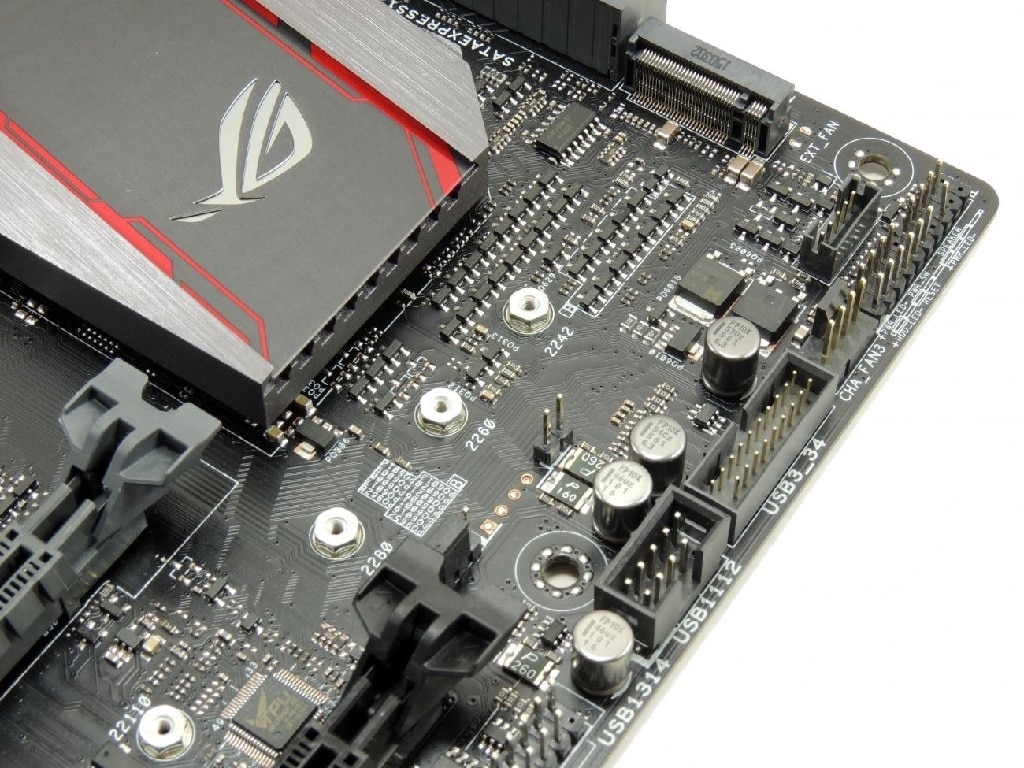

Here’s a better look at the 4x M.2 slot that is capable of handling all current sizes of M.2 drives. Starting from the capacitor on the left we have a USB slot, a USB 3.0 connector, a 4 pin PWN fan header and the front panel connector. Asus includes a front panel block but color coding of the case connector would be a nice feature.

The CPU power connector is squirreled away behind the plastic

OLYMPUS DIGITAL CAMERA

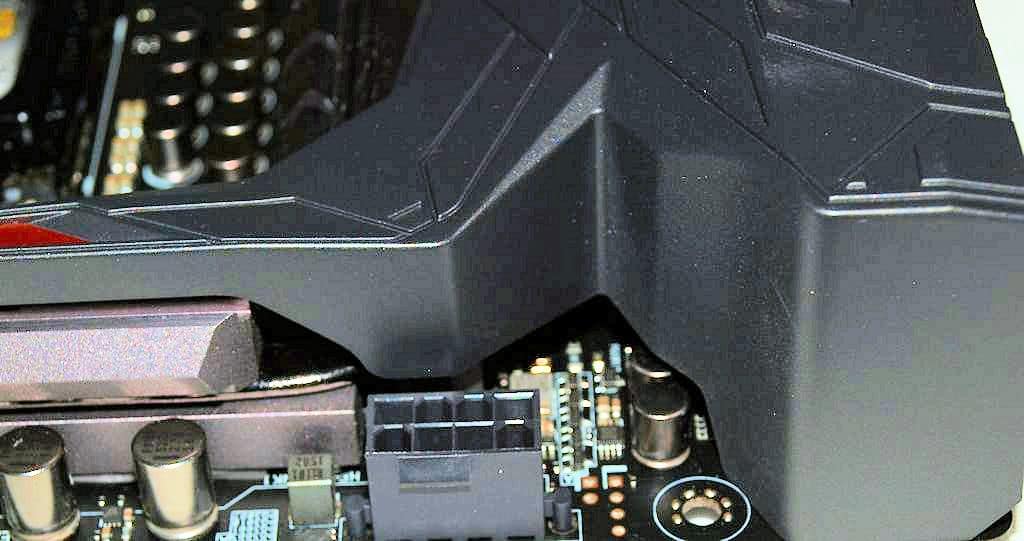

The CPU Power Connector is squirreled away behind the plastic housing up by the VRM heatsink so you might want to think about connecting the CPU power connector before bolting the board down.

OLYMPUS DIGITAL CAMERA

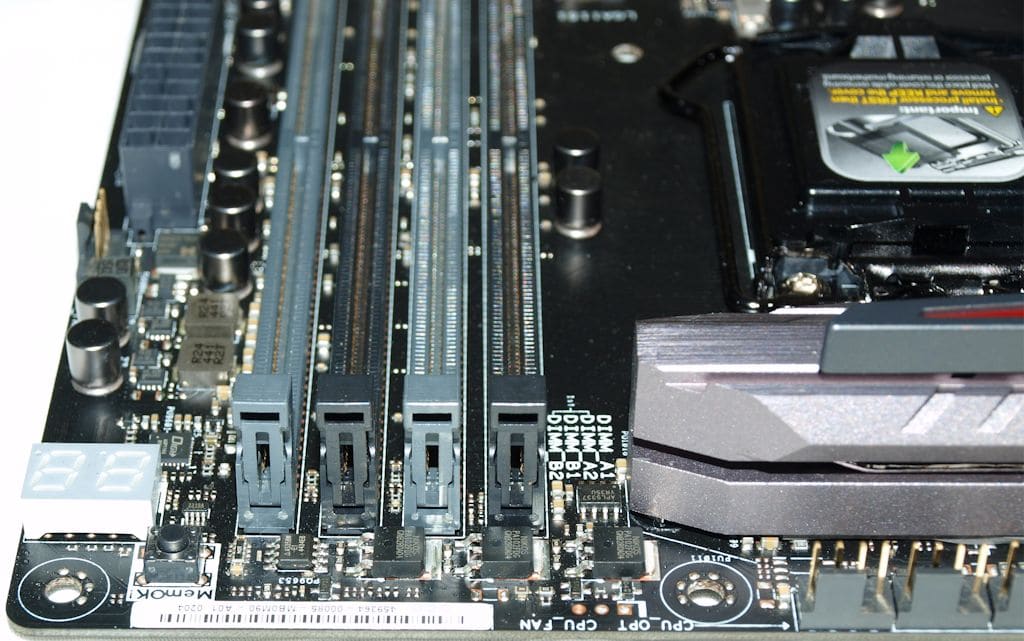

Just left of the CPU power connector you find 3 4 pin PWM connectors, a decent look at the 4 ram banks and the solder points where you can use a multimeter to check voltages. That takes us all the way around the board and back to the Post Code block we like to call the Double Digit Debugger.

OLYMPUS DIGITAL CAMERA

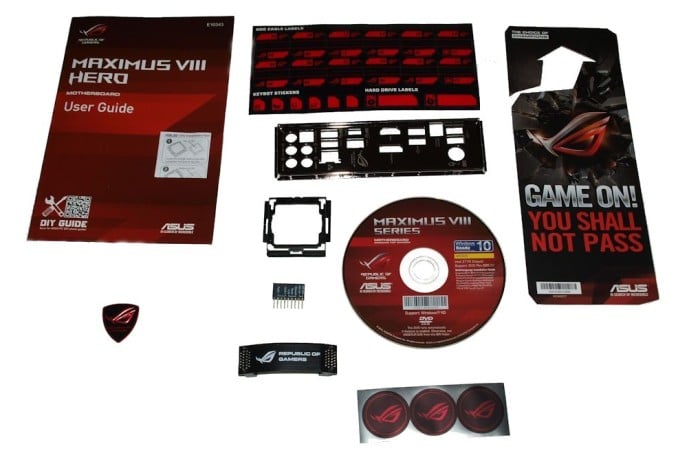

The Asus Maximus VIII Hero bundle looks a little fleshed out but it’s a pretty basic bundle with some stickers for fans, cable stickers, case badge and a few little nice extras. The entire list of accessories is listed below.

The bundle in the Asus Maximus VIII Hero includes:

  • User’s manual
  • ASUS Q-Shield
  • 6 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x CPU installation tool
  • 1 x Supporting DVD
  • 1 x SLI bridge(s)
  • 1 x Q-connector(s) (1 in 1)
  • 1 x 12 in 1 ROG Cable Label(s)
  • ROG Fan Label
  • 1 x ROG Door Hanger(s)

Specifications Table Asus Maximus VIII Hero

CPU Intel Socket 1151
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Chipset Intel® Z170
Memory 4 x DIMM, Max. 64GB, DDR4
2133 – 3800 MHz (OC)
Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Hyper DIMM support is subject to the physical
characteristics of individual CPUs.
Graphic Integrated Graphics Processor- Intel® HD 530
1 x HDMI
1 x Display Port
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear
Video HD Technology, Insiderâ„¢
Multi-GPU Support Supports NVIDIA SLIâ„¢ Technology
Supports AMD CrossFireXâ„¢ Technology
Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, +gray)
1 x PCIe 3.0/2.0 x16 (x4 mode, +black)
3 x PCIe 3.0/2.0 x1
Storage
Intel® Z170 chipset : 1 x M.2 x4 Socket 3with M Key, type
2242/2260/2280/22110
6 x SATA 6Gb/s port(s), gray, , 4 ports from 2 x SATA
Express
2 x SATA Express port
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Supports Intel® Smart Response Technology
ASMedia ASM1061 controller : 2 x SATA 6Gb/s port(s), black
LAN Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst
technology
Intel® LAN- Dual interconnect between the Integrated
LAN controller and Physical Layer
Anti-surge LANGuard
Audio ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
Supports : Jack-detection, Multi-streaming, Front Panel
Jack-retasking
SupremeFX Shielding Technology
ESS® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
TI RC4580 2VRMS audio OP AMP
Audio Feature Gold-plated jacks
DTS Connect
Optical S/PDIF out port(s) at back panel
Sonic SenseAmp
Sonic Studio II
Sonic Radar II
USB Ports
Intel® Z170 chipset : 6 x USB 3.0 port(s) (2 at back panel, blue, 4 at
mid-board)
8 x USB 2.0 port(s) (4 at back panel, black, 4 at
mid-board)
ASMedia® USB 3.1 controller 1 x USB 3.1 port(s) (1 at back panel, black, Type-C)
1 x USB 3.1 port(s) (1 at back panel, red, Type-A)
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 (black)Type-C
1 x USB 3.1 (red)Type-A
2 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
Internal I/O Ports 1 x AAFP connector
2 x USB 2.0 connector(s) support(s) additional 4 USB
2.0 port(s)
2 x USB 3.0 connector(s) support(s) additional 4 USB
3.0 port(s)
2 x SATA Express connector: gray, Compatible with 4 x
SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type
2242/2260/2280/22110
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (4 -pin)
1 x Thunderbolt header
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector
